Gantt task delete action button is not clickable if progress at 100% when bootstrap 4 theme is used

2 posts, 0 answers
  1. Dan
    Dan avatar
    167 posts
    Member since:
    Nov 2017

    Posted 17 Mar Link to this post

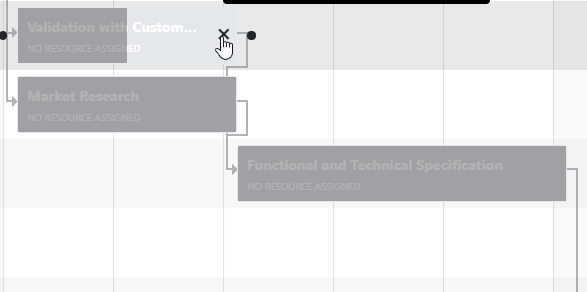

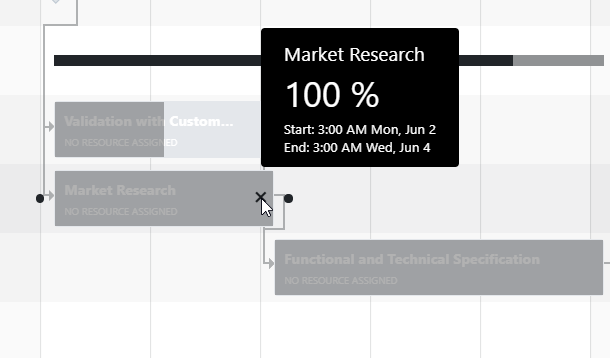

    We are using Gantt in our project, the added tasks are using a template and we noticed that when the task progress covers the delete task button and it is not clickable anymore.

    The template is similar to the one below:

    <script id="task-template" type="text/x-kendo-template"
        <div class="template">
            <div class="wrapper">
                <strong class="title">#= title # </strong>
                <span class="resource">no resource assigned</span>
            </div>
            <div class="progress" style="width:#= (100 * parseFloat(percentComplete)) #%"> </div>
        </div>
    </script>





    I have tried to reproduce this issue in the Kendo Dojo and noticed that it is reproducible only when bootstrap 4 is used (for bootstrap 3 works fine). Here is the link to the kendo dojo where I was able to reproduce this issue: https://dojo.telerik.com/eyutamel

    Please help me get the functionality for the delete (k-task-delete) on the task.

    Thank you in advance!

  2. Aleksandar
    Admin
    Aleksandar avatar
    188 posts

    Posted 18 Mar Link to this post

    Hello Dan,

    Thank you for sending a sample dojo with the issue isolated. I noticed the dojo follows the example on Gantt Task Templates, with one styling difference:

    .progress{
       position: absolute;
       left: 0;
       bottom: 0;
       width: 0%;
       height: 4px;
       background: rgba(0, 0, 0, .3);
     }

    In the dojo provided the height is set to 100% thus the progress element covers the close icon when the task is 100% completed. You could either set a height for .progress class so that it is lower than the close icon or adjust the z-index of the close icon:

    .k-link.k-task-delete{
          z-index:1;
        }

    Here is a dojo that demonstrates the above approach.

    Let me know if you have further questions.
