Formatting bar chart

6 posts, 0 answers
  1. Ian
    Ian avatar
    63 posts
    Member since:
    Jul 2017

    Posted 30 Jan Link to this post

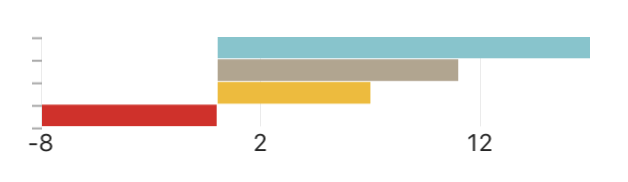

    Here's my code. I have attached a screenshot of the resulting chart. I have a few questions...

    1. How do I remove the horizontal marks on the left axis?

    2. How do I remove the spacing between each bar?

    3. How do I make it always show '0' on the horizontal axis?

    <telerikChart:RadCartesianChart PaletteName="Light" SelectionPaletteName="LightSelected" Margin="10,10,10,10" Grid.Row="0" x:Name="hoursChart" BackgroundColor="White">
                    <telerikChart:RadCartesianChart.HorizontalAxis>
                        <telerikChart:NumericalAxis MajorStep="10" LineColor="White" MajorTickBackgroundColor="White"  />
                    </telerikChart:RadCartesianChart.HorizontalAxis>
                    <telerikChart:RadCartesianChart.VerticalAxis>
                        <telerikChart:CategoricalAxis  GapLength="0" LineColor="Transparent"  MajorTickThickness="1" PlotMode="BetweenTicks" LabelFitMode="MultiLine"  ShowLabels="False" MajorTickBackgroundColor="#A9A9A9" />
                    </telerikChart:RadCartesianChart.VerticalAxis>
                    <telerikChart:RadCartesianChart.Series>
                        <telerikChart:BarSeries CategoryBinding="Category" ValueBinding="Value" ItemsSource="{Binding SeriesData}" CombineMode="Stack" />
                        <telerikChart:BarSeries CategoryBinding="Category" ValueBinding="Value" ItemsSource="{Binding SecondSeriesData}" CombineMode="Stack" />
                        <telerikChart:BarSeries CategoryBinding="Category" ValueBinding="Value" ItemsSource="{Binding ThirdSeriesData}" CombineMode="Stack" />
                        <telerikChart:BarSeries CategoryBinding="Category" ValueBinding="Value" ItemsSource="{Binding FourthSeriesData}" CombineMode="Stack" />
                    </telerikChart:RadCartesianChart.Series>
                    <telerikChart:RadCartesianChart.Palette>
                        <telerikChart:ChartPalette >
                            <telerikChart:ChartPalette.Entries>
                                <telerikChart:PaletteEntry  FillColor="#d12f23" StrokeColor="Transparent" />
                                <telerikChart:PaletteEntry FillColor="#eebc2c" StrokeColor="Transparent" />
                                <telerikChart:PaletteEntry FillColor="#b1a58f" StrokeColor="Transparent" />
                                <telerikChart:PaletteEntry FillColor="#86c4cd" StrokeColor="Transparent" />
                            </telerikChart:ChartPalette.Entries>
                        </telerikChart:ChartPalette>
                    </telerikChart:RadCartesianChart.Palette>
                </telerikChart:RadCartesianChart>
  2. Ian
    Ian avatar
    63 posts
    Member since:
    Jul 2017

    Posted 30 Jan in reply to Ian Link to this post

    I have fixed number one with the following on the CategoricalAxis...

    MajorTickBackgroundColor="Transparent"





  3. Ian
    Ian avatar
    63 posts
    Member since:
    Jul 2017

    Posted 30 Jan in reply to Ian Link to this post

    Another question...

    4) How can I change the font family of the numbers on the horizontal axis?

  4. Ian
    Ian avatar
    63 posts
    Member since:
    Jul 2017

    Posted 30 Jan in reply to Ian Link to this post

    I have fixed number by setting the stroke color on the bars to the same as the fill color.

    So only question 3 & 4 remaining. :)

  5. Ian
    Ian avatar
    63 posts
    Member since:
    Jul 2017

    Posted 31 Jan Link to this post

    aha... I made the axis always show zero by rounding the maximum up to the nearest major step and rounding the minimum down to the nearest major step.

    So, now I just need to know how to change the font of the tick numbers.

  6. Didi
    Admin
    Didi avatar
    250 posts

    Posted 01 Feb Link to this post

    Hello Ian,

    I am glad you have managed to solve questions 1, 2 and 3.

    Regarding to the 4th question: How can I change the font family of the numbers on the horizontal axis? I have tried different scenarios using a custom renderer but I could not find any suitable solution for this.

    Let me know if you have any additional questions or concerns.

    Regards,
    Didi
    Progress Telerik
