Matt Dufrasne asked on 21 Sep 2016, 08:58 AM

There are two queries in Timeline Week view of Scheduler:

1) Is it possible to filter vertical axis configurations based on configurations associated parameter (Each configuration carries its physical location).

 I have a custom filter on page, as soon as i enter location in that filter, it should filter vertical axis configurations based on entered value.

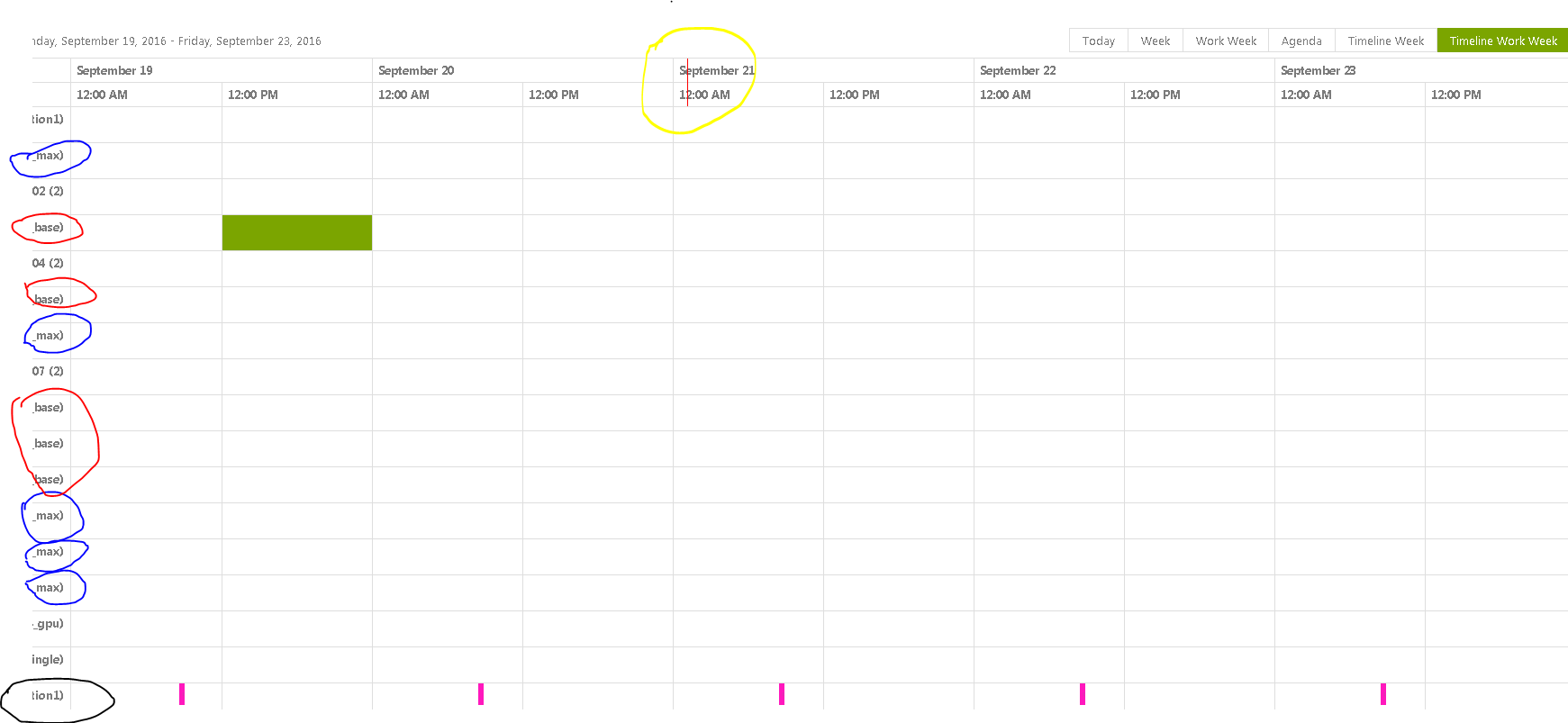

In the attached file, all red configurations has location 'A', all blue has location 'B' and the black has location 'C'

Only black configuration has appointments. However, blue and red doesn't have appointments.

I'm trying to filter out blue and red configurations from the vertical axis by entering physical location of black one i.e. 'C' in custom filter. So on vertical axis, i should not see blue and red configurations since it has location as A and B.

Here are the views:

views: [
                    {
                        type: "day",
                        title: "Today",
                        workDayStart: new Date("2016/1/1 07:00 AM"),
                        workDayEnd: new Date("2016/1/1 07:00 PM")
                    }, {
                        type: "week",
                        title: "Week",
                        selected: true,
                        workDayStart: new Date("2016/1/1 07:00 AM"),
                        workDayEnd: new Date("2016/1/1 07:00 PM")
                     },
                    {
                        type: "workWeek",
                        title: "Work Week",
                        workDayStart: new Date("2016/1/1 07:00 AM"),
                        workDayEnd: new Date("2016/1/1 07:00 PM")
                    },
                    {
                        type: "agenda",
                        eventTemplate: "<reservation-agenda></reservation-agenda>"
                    },
                    {
                        type: "timelineWeek",
                        columnWidth: 150,
                        majorTick: 720,
                        minorTickCount: 1,
                        group: {
                            resources: ["Configurations"],
                            orientation: "vertical"
                        },
                        workDayStart: new Date("2016/1/1 07:00 AM"),
                        workDayEnd: new Date("2016/1/1 07:00 PM")
                    },
                    {
                        type: "timelineWorkWeek",
                        columnWidth: 150,
                        majorTick: 720,
                        minorTickCount: 1,
                        group: {
                            resources: ["Configurations"],
                            orientation: "vertical"
                        },
                        workDayStart: new Date("2016/1/1 07:00 AM"),
                        workDayEnd: new Date("2016/1/1 07:00 PM")
                    }
                ],

Basically need some way to filter vertical axis configurations based on condition in Timeline Week view

2)In the attached file, the yellow circle mark has the current time shown as red line. Can't we display the current time or display current time on hover over red line. It will tell upfront the current time and will be more intuitive to user.



2 Answers, 1 is accepted

Sort by
0
Accepted
Plamen
Telerik team
answered on 23 Sep 2016, 04:58 AM
Hi,

1) You can filter the resource datasource accordiong to your custom scenario and reload the resources as for example it is done in this dojo page.

2) You can use kendo tooltip as for example in the code below:
var tooltip = $("#scheduler").kendoTooltip({
                      filter: ".k-current-time",
                      width: 120,
                      position: "top",
                      content: function(e) {
                          return new Date();
                        }
                  }).data("kendoTooltip");


Regards,
Plamen
Telerik by Progress

Get started with Kendo UI in days. Online training courses help you quickly implement components into your apps.

0
Matt Dufrasne
Top achievements
Rank 1
answered on 26 Sep 2016, 05:32 AM

Awesome, Thanks Plamen!

1) Followed the resources datasource filter logic and it worked in my custom scenario as well.

2) The date wasn't visible in kendo tooltip. Needed to change CSS and also formated date below. Updated like below.

$("#scheduler").kendoTooltip({
                filter: ".k-current-time",
                width: 120,
                position: "top",
                content: function(e) {
                    return moment(new Date()).format("MM/DD/YYYY h:mm:ss A");
                }
            }).data("kendoTooltip");



CSS:

.k-widget.k-tooltip {
    background-color: #4f8903 !important;
    ;
}
