Export Format Problem

17 posts, 0 answers
  1. Sakthivel
    Sakthivel avatar
    8 posts
    Member since:
    Feb 2008

    Posted 15 Jun 2011 Link to this post

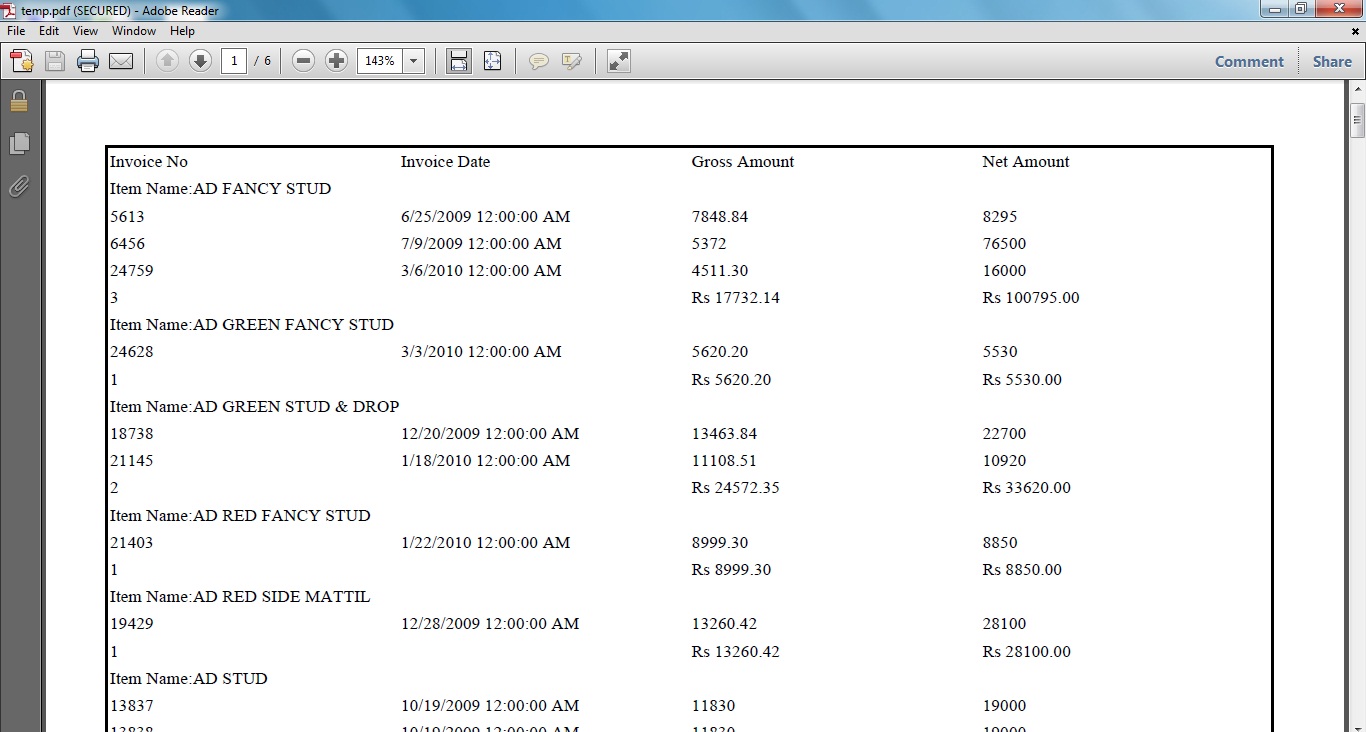

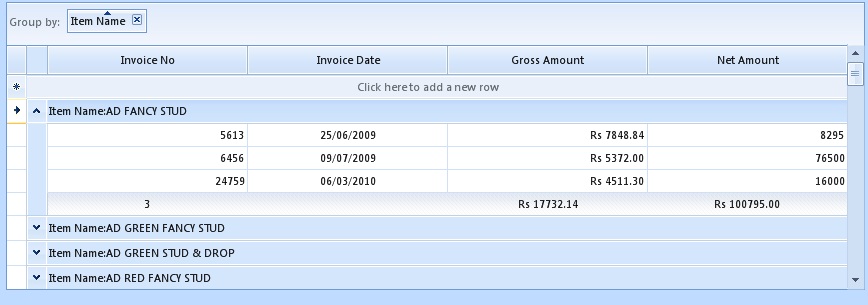

    Unable to get the data format and alignment mentioned in Grid, while exporting to pdf. Please find the attached pdf and grid image. I am adding the columns  to grid from code behind by this way,

    GridViewDataColumn[] grdColumn = new GridViewDataColumn[ds.Tables[0].Columns.Count];
    foreach (DataColumn dColumn in ds.Tables[0].Columns)
    {
        GridViewTextBoxColumn grdCol = new GridViewTextBoxColumn();
            grdCol.FieldName = dColumn.Caption;
            grdCol.HeaderText = dColumn.Caption;
            string DisplayFormat = SchB.Get_DisplayFormat(ReportID, dColumn.Caption);
            string TempDF = string.Empty;


            if (string.Compare(Convert.ToString("" + dColumn.DataType), "System.String", true) == 0)
            {
                grdCol.TextAlignment = ContentAlignment.MiddleLeft;
            grdCol.FormatString = "{0:0}";
            }
            else if (string.Compare(Convert.ToString("" + dColumn.DataType), "System.Decimal", true) == 0)
            {
                grdCol.TextAlignment = ContentAlignment.MiddleRight;
            }
        else if (string.Compare(Convert.ToString("" + dColumn.DataType), "System.DateTime", true) == 0)
            {
                grdCol.TextAlignment = ContentAlignment.MiddleRight;
                grdCol.FormatString = "{0:dd/MM/yyyy}";
            }
            else
            {
                grdCol.TextAlignment = ContentAlignment.MiddleCenter;
            }

            grdColumn[tempCount++] = grdCol;
    }
    gridUserReport.Columns.AddRange(grdColumn);

    Regards,
    Sakthivel
  2. James
    James avatar
    3 posts
    Member since:
    Jun 2011

    Posted 17 Jun 2011 Link to this post

    hi,
            I have smiler problem, i could not format the dynamic column using code
    I didn't receive any error message,
           But it shows the data without format


    Any help..,

    with regards
    Jamesraj,

  3. Martin Vasilev
    Admin
    Martin Vasilev avatar
    1061 posts

    Posted 20 Jun 2011 Link to this post

    Hello everyone,

    It looks like there is an issue with transferring the text alignment from grid to exported pdf file. We will address this in one of the next releases. For the time being you can manually set desired alignment or apply any additional format through HTMLCellFormatting event:

    void pdfExporter_HTMLCellFormatting(object sender, Telerik.WinControls.UI.Export.HTML.HTMLCellFormattingEventArgs e)
    {
        if (e.GridCellInfo.ColumnInfo.Name == "City")
        {
            e.HTMLCellElement.Alignment = ContentAlignment.MiddleRight;
        }
    }

    Let me know if there are any other additional questions.

    Best wishes,
    Martin Vasilev
    the Telerik team
    Q1’11 SP1 of RadControls for WinForms is available for download; also available is the Q2'11 Roadmap for Telerik Windows Forms controls.
  4. James
    James avatar
    3 posts
    Member since:
    Jun 2011

    Posted 21 Jun 2011 Link to this post

    hi Martin,

            Thanks for your reply,
    With your idea alignment problem is solved,
    how can i format the cell when exporting,
    I already  format the columns , it shows fine in grid
    while exporting to PDF it does not show the format,

    for example,
                     i have to format the datetime   column as "dd/MM/yyyy" , etc

    with regards
    Jamesraj
  5. Martin Vasilev
    Admin
    Martin Vasilev avatar
    1061 posts

    Posted 23 Jun 2011 Link to this post

    Hello James,

    Thank you for getting back to me.

    Actually, you can use the same event to apply any formatting while exporting to pdf:
    void exportPdf_HTMLCellFormatting(object sender, Telerik.WinControls.UI.Export.HTML.HTMLCellFormattingEventArgs e)
    {
        if (e.GridCellInfo.ColumnInfo.Name == "Date" && e.GridCellInfo.Value is DateTime)
        {
            e.HTMLCellElement.Value = ((DateTime)e.GridCellInfo.Value).ToString("dd MMM, yyyy");
        }
    }

    Do not hesitate to contact me again if you have any other questions.

    Best wishes,
    Martin Vasilev
    the Telerik team
    Q1’11 SP1 of RadControls for WinForms is available for download; also available is the Q2'11 Roadmap for Telerik Windows Forms controls.
  6. James
    James avatar
    3 posts
    Member since:
    Jun 2011

    Posted 24 Jun 2011 Link to this post

    hi Martin,
            Thanks for reply, Its working fine


    With Regards,
    Jamesraj
  7. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 25 Dec 2018 Link to this post

    Hi all,

          I have Issue when I Grid export to XL or pdf in windows.10 with max Resolution (1920*1080).

    The issues are here.

    1. The maximized Mdi or form is shrink to normal size automatically.
    2. Disorder the controls alignment.

    The Issue is coming from the RunExport() function

    Here my code is "exporter.RunExport(filename, exportRenderer);"

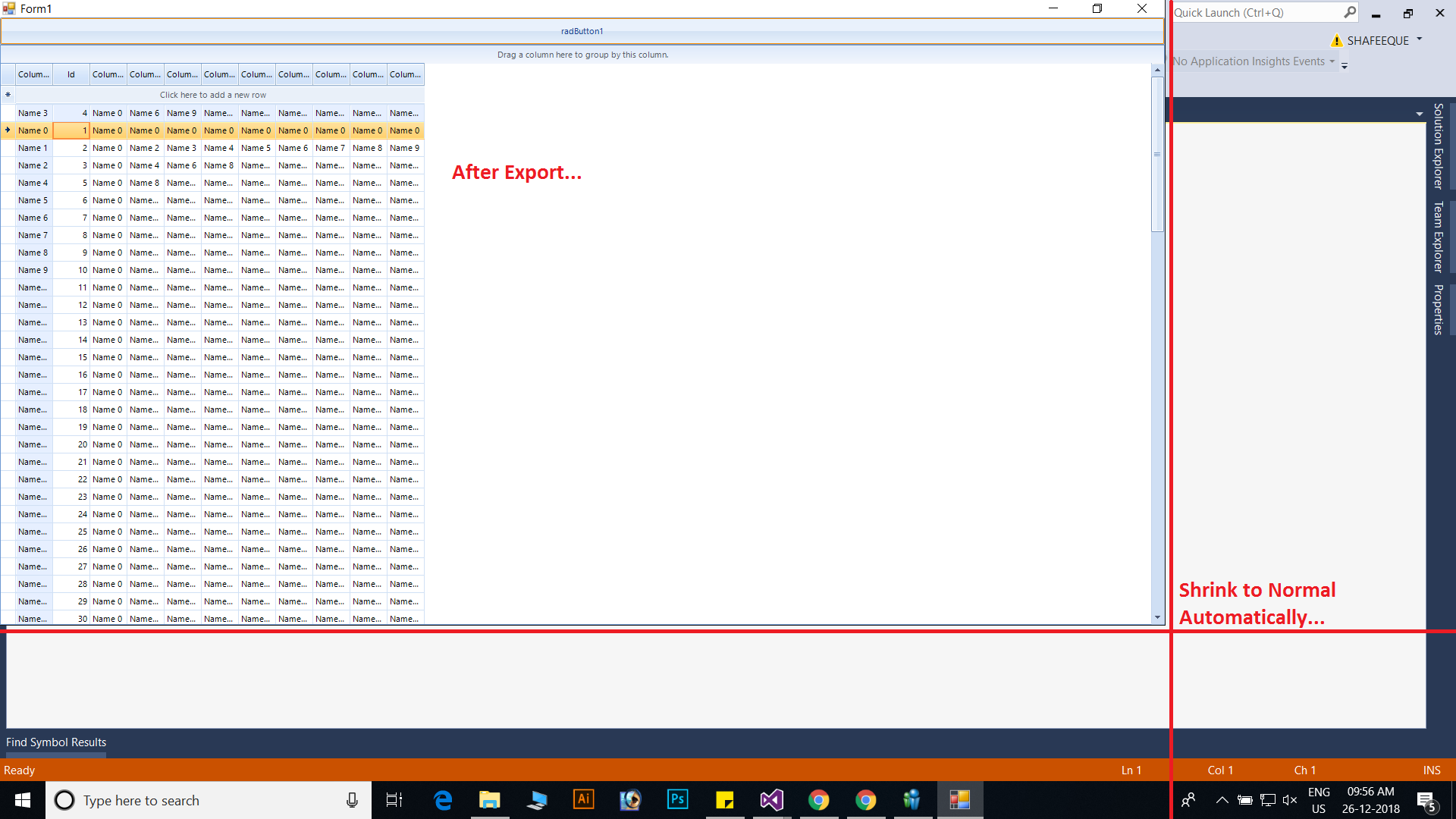

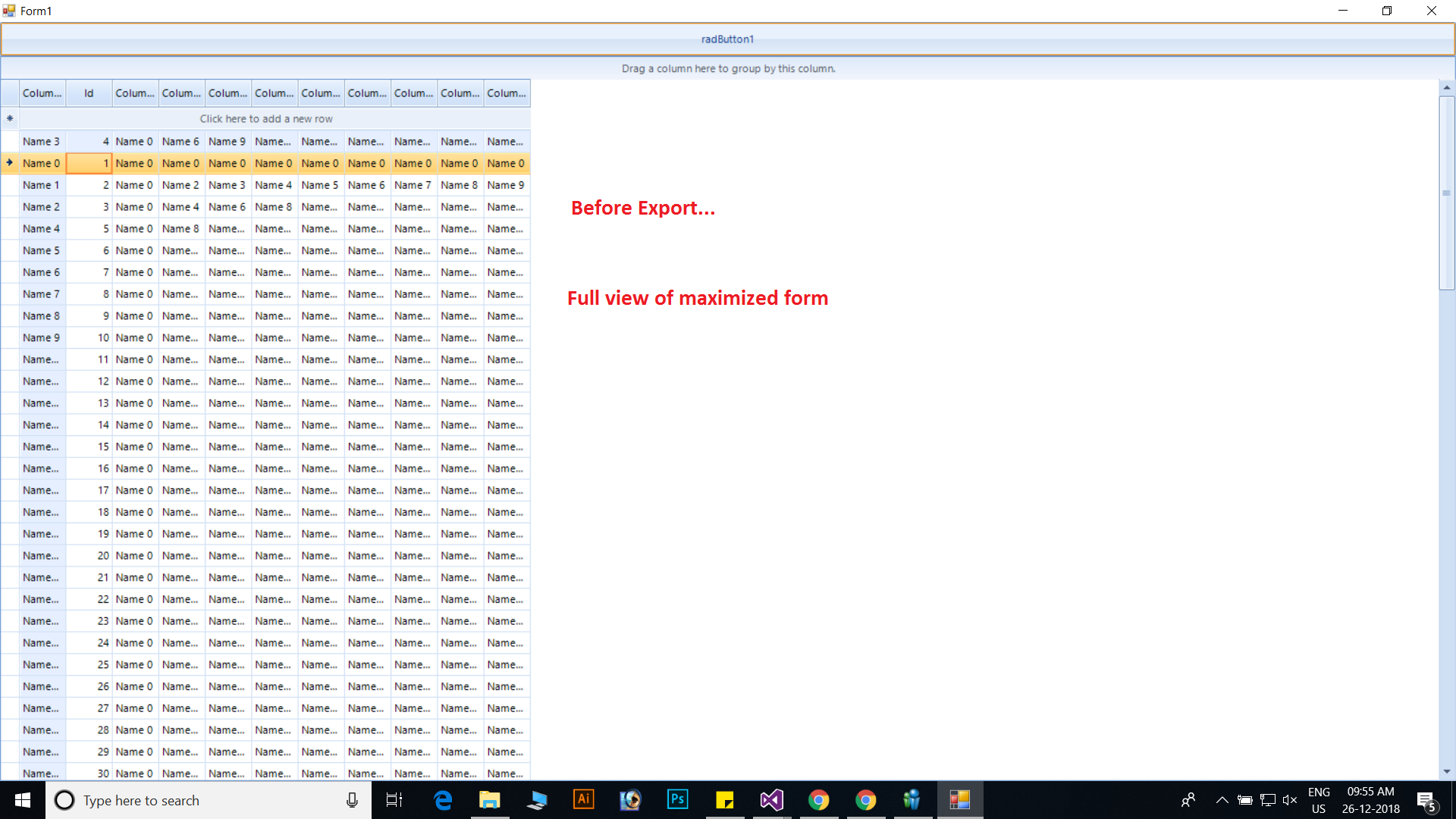

    I attached two pics here, first one is before export Mdi picture and other one after export

    How could I overcome the issue

    With Regards,
    Jamsheer

  8. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3759 posts

    Posted 26 Dec 2018 Link to this post

    Hello, Jamsheer,

    Following the provided information, I was unable to reproduce the issue you are facing. I have attached my sample project. Am I missing something? Could you please specify the exact steps how to reproduce the problem?

    Alternatively, feel free to submit a support ticket from your account where you can provide a sample project demonstrating the problem you are facing. Thus, our support staff will gladly assist you further. Thank you in advance.

    I am looking forward to your reply.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  9. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 26 Dec 2018 Link to this post

    Hi Dess,

          Here I have a maximized radform. The radform is decrease its size from maximum when I click the export button and then click Save from SaveFileDialog.

    Look at the gif file below
    Jamsheer

  10. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 26 Dec 2018 Link to this post

    Hi Dess,
          I have a maximized radform. The form is decreased its size from maximum when I click the export button an then click Save in SaveFileDialog.

    Look at the gif file to reffer more.

    Thank you
    Jamsheer

  11. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3759 posts

    Posted 27 Dec 2018 Link to this post

    Hello, Jamsheer,

    The provided gif file is greatly appreciated. However, it is not enough for me to replicate the issue locally. Have you tested the export behavior with the provided sample project from my previous reply? Is the issue reproducible with it? What is the Telerik UИ for WinForms version that you are currently using?

    I am looking forward to your reply.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  12. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 27 Dec 2018 Link to this post

    Hi Dess,
          Thanks for your fast replay.

    I tested with your code provided sample project from your previous reply, But its not solved my issue.

    I am using "Visual Studio 2015".

    Here is my code I used in my project.

    public Form1()
            {
                InitializeComponent();

                DataTable table = new DataTable();
                table.Columns.Add("Id", typeof(int));

                for (int i = 0; i < 10; i++)
                {
                    table.Columns.Add("Column " + i, typeof(string));
                }

                for (int i = 0; i < 100; i++)
                {
                    DataRow row = null;
                    row = table.NewRow();
                    row["Id"] = i + 1;

                    for (int j = 0; j < table.Columns.Count - 1; j++)
                    {
                        row["Column " + j] = "Name " + j * i;
                    }

                    table.Rows.Add(row);
                }

                this.radGridView1.DataSource = table;
                this.radGridView1.Rows[3].IsPinned = true;
                this.radGridView1.Columns[2].IsPinned = true;
                this.radGridView1.Columns[2].PinPosition = Telerik.WinControls.UI.PinnedColumnPosition.Left;
            }

            private void radButton1_Click(object sender, EventArgs e)
            {
                SaveFileDialog dialog = new SaveFileDialog();
                dialog.FileName = "exportedFile";
                dialog.Filter = "xlsx files (*.xlsx)|*.xlsx|All files (*.*)|*.*";

                if (dialog.ShowDialog() == DialogResult.OK)
                {
                    ExportData(dialog.FileName);
                }
            }

            void ExportData(string fileName)
            {
                SpreadExportRenderer renderer = new SpreadExportRenderer();
                GridViewSpreadExport spreadExporter = new GridViewSpreadExport(this.radGridView1);
                spreadExporter.FreezeHeaderRow = true;
                spreadExporter.FreezePinnedColumns = true;
                spreadExporter.FreezePinnedRows = true;
                spreadExporter.ExportVisualSettings = true;
                spreadExporter.SheetMaxRows = ExcelMaxRows._1048576;
                spreadExporter.ExportFormat = SpreadExportFormat.Xlsx;
                spreadExporter.FileExportMode = FileExportMode.CreateOrOverrideFile;
                spreadExporter.RunExport(fileName, renderer);
            }

    Can I attach my project zip file here? If yes, how could I do

    This issue is in Windows10 with maximum resolution(1980*1080)
    Thank you
    Jamsheer

  13. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3759 posts

    Posted 27 Dec 2018 Link to this post

    Hello, Jamsheer,

    I have tested my sample project with resolution 1920 x 1080 and it behaves as expected. After creating a new form with the provided code snippet, the problem is still not reproducible on my end. It seems to be something specific in the environment that you are using.

    The allowed extensions in the forum threads are: .gif, .jpg, .jpeg, .png. That is why I kindly asked you to submit a ticket from your account where you can provide a full description of the precise case together with your sample project. Thus, our support staff will gladly will be able to make an adequate analysis of the precise case and assist you further. Thank you in advance.

    Thank you for your understanding.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  14. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 28 Dec 2018 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hi Dess,
          I run the project that you specified above, But there also getting the same issue.

    The issue is coming only in "Windows 10 OS, Resolution (1920 x 1080)".

    You should check with Windows 10 OS, Resolution (1920 x 1080)

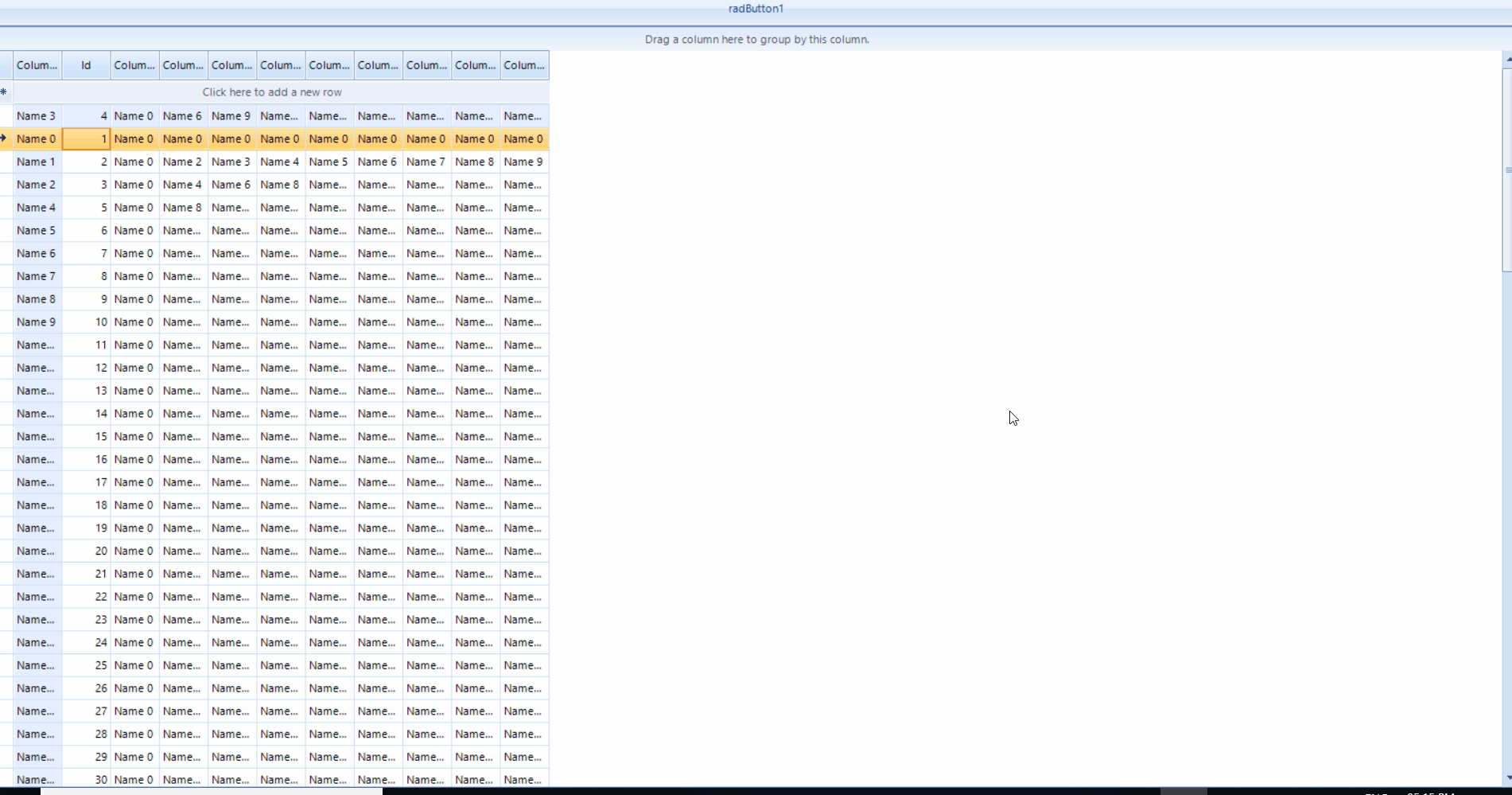

    I attached the gif file with run you specified project.

    Thank you.

    Jamsheer

  15. Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    3759 posts

    Posted 28 Dec 2018 Link to this post

    Hello, Jamsheer,

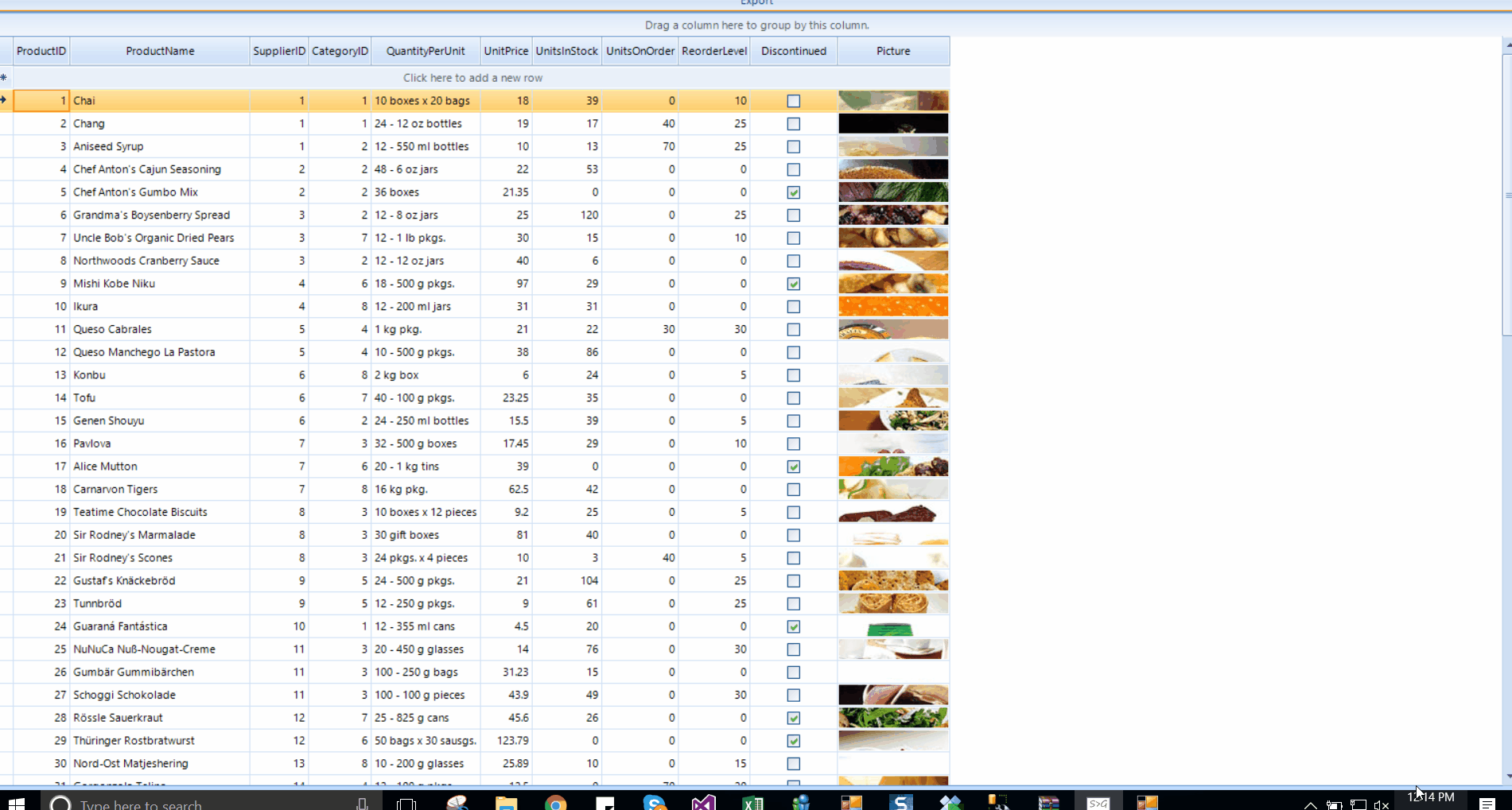

    The provided gif file was very useful since it clearly shows how th font was changed after exporting the grid. I was able to replicate the problem if the application is run on higher than 100% DPI scaling. Note that the grid export uses the RadSpreadProcessing library. Telerik’s document processing library (RadSpreadProcessing, RadWordProecessing or RadPdfProcessing) is referencing assemblies which are used in WPF. All WPF-based applications are DPI-aware by default and this is declared in the manifests of the WPF assemblies. Therefore, if you use the document processing library in WinForms applications that are not DPI-aware, they might suddenly become DPI-aware at run time when you instantiate a type from the DPL assemblies (when the DPL assemblies are loaded by the CLR, this will also load the WPF assemblies which they depend on, which in turn will make the application DPI-aware). If you intend to use your application on machines where the DPI scaling is larger than 100 percent, you should explicitly set the application to be DPI-unaware right before running the export logic:

    private void workbookTestButton_Click(object sender, EventArgs e)
    {
        SetProcessDpiAwareness(_Process_DPI_Awareness.Process_DPI_Unaware);
        Workbook wb = new Workbook();
    }

    [DllImport("shcore.dll")]
    static extern int SetProcessDpiAwareness(_Process_DPI_Awareness value);

    enum _Process_DPI_Awareness
    {
        Process_DPI_Unaware = 0,
        Process_System_DPI_Aware = 1,
        Process_Per_Monitor_DPI_Aware = 2
    }

    I have tested it on my end and it seems to work properly.

    I hope this information helps.

    Regards,
    Dess | Tech Support Engineer, Sr.
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  16. jamsheer
    jamsheer avatar
    64 posts
    Member since:
    Feb 2017

    Posted 30 Dec 2018 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Hi Dess,

          Thank you, Its worked properly.
    Jamsheer
  17. Jaco Van Zyl
    Jaco Van Zyl avatar
    5 posts
    Member since:
    May 2006

    Posted 06 Jan 2019 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Thank you!

    I ran into the same problem today and your post fixed my error.
