Expander does not Show all Content with ScrollView

2 posts, 0 answers
  1. Unb
    Unb avatar
    16 posts
    Member since:
    Oct 2018

    Posted 05 Nov 2018 Link to this post

    Hello

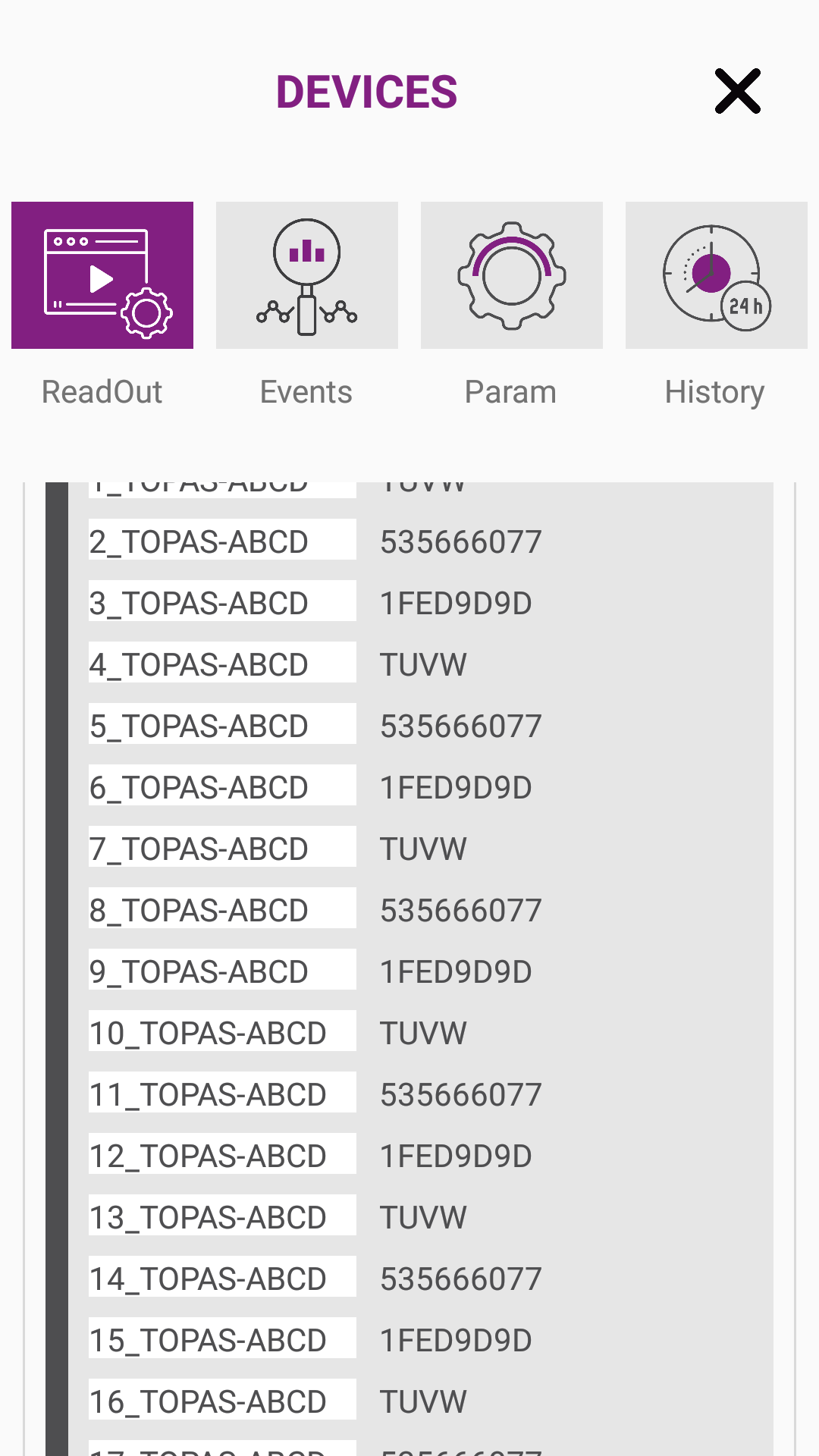

    I have a parameter list which contains 75 items (I've created a custom UI element. I try to show these params in the content of RadAccordion. Unfortunately it shows only 24 items by using scroll and after 24 items, I cannot scroll.. I've tried with RadExpander, it shows 16 items. I do not give any height value. How I can increase the size? Here is my code

    <ContentView.Content>
           <Grid BindingContext="{Binding MeterReadout, Source={StaticResource ViewModelLocator}}"  VerticalOptions="FillAndExpand">
               <StackLayout  Margin="10,20,10,0">
                   <datacontrols:RadListView x:Name="listView"   ItemsSource="{Binding Source}" SelectionMode="None" VerticalOptions="FillAndExpand" >
                       <datacontrols:RadListView.ItemTemplate>
                           <DataTemplate>
                               <telerikListView:ListViewTemplateCell >
                                   <telerikListView:ListViewTemplateCell.View>
                                       <ScrollView VerticalOptions="FillAndExpand">
                                         <telerikPrimitives:RadExpander x:Name="expander" Style="{StaticResource ExpanderStyle}">
                                                   <telerikPrimitives:RadExpander.Header>
                                                       <telerikPrimitives:ExpanderHeader>
                                                       <Label Text="{Binding MeterId}"  Style="{Binding CapitalLettersLabel}"   />
                                                </telerikPrimitives:ExpanderHeader>
                                                   </telerikPrimitives:RadExpander.Header>
                                                   <telerikPrimitives:RadExpander.Content>
                                                   <ScrollView  Style="{StaticResource ExpanderContent}">

                                                       <customCellItem:CustomReadoutListItem
                                                           ItemsSource="{Binding MeterValues}"

                                                       />
                                                   </ScrollView>
                                                   </telerikPrimitives:RadExpander.Content>
                                               </telerikPrimitives:RadExpander>
                                        </ScrollView>
                                   </telerikListView:ListViewTemplateCell.View>
                               </telerikListView:ListViewTemplateCell>
                           </DataTemplate>
                       </datacontrols:RadListView.ItemTemplate>
                   </datacontrols:RadListView>
               </StackLayout>
           </Grid>
       </ContentView.Content>





  2. Didi
    Admin
    Didi avatar
    336 posts

    Posted 06 Nov 2018 Link to this post

    Hello,

    Thank you for the provided code.

    I have created a sample example and I could not reproduce the issue on my side. Please take a look at the attached sample and may I ask you to modify it according your specific setup and send it back to me? In this case we could research it further. Also please note that you should open a support ticket and attach the project there, because in the forum only image attachments are allowed.

    Thanks in advance.

    Regards,
    Didi
    Progress Telerik
