Dragging and dropping a row in RadGridView does not work.

[Eusebio]

Hi there,

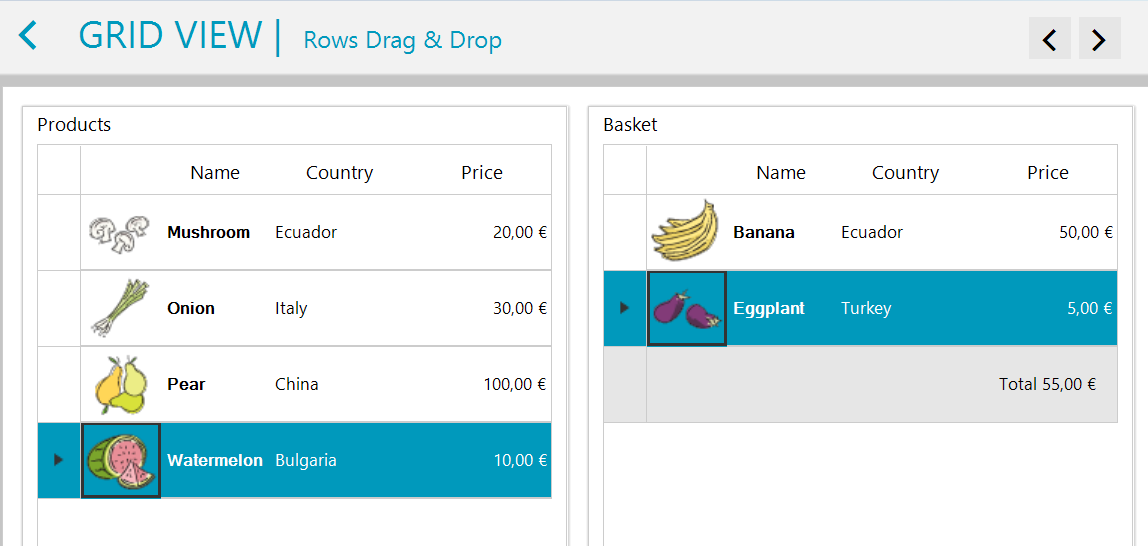

I tried dragging and dropping a row into my RadGridView using the "Rows drag & drop" example from the "Progress Telerik UI for WinForms" application but I can't get it to work.



My need is to drag only one row and on the same grid.

Please, any suggestions?

Thank you very much.

[Eusebio]

Now I am trying with the example "Windows sdk master" / BoundGridReorderRows.sln but I use DataTable and that example uses objects of an Item class, what would it be like for the DataTable to be used?

Best regards.



This is code of BoundGridReorderRows.sln:

        private void MoveRows(RadGridView dragGrid,
            GridViewRowInfo dragRow, int index)
        {
            dragGrid.BeginUpdate();

            GridViewRowInfo row = dragRow;
            if (row is GridViewSummaryRowInfo)
            {
                return;
            }
            if (dragGrid.DataSource != null && typeof(System.Collections.IList).IsAssignableFrom(dragGrid.DataSource.GetType()))
            {
                //bound to a list of objects scenario
                var sourceCollection = (System.Collections.IList)dragGrid.DataSource;
                if (row.Index < index)
                {
                    index--;
                }
                sourceCollection.Remove(row.DataBoundItem);
                sourceCollection.Insert(index, row.DataBoundItem);
            }
            else
            {
                throw new ApplicationException("Unhandled Scenario");
            }

            dragGrid.EndUpdate(true);
        }



        public class Item
        {
            public Item(int id, string name)
            {
                this.Id = id;
                this.Name = name;
            }

            public int Id { get; set; }

            public string Name { get; set; }
        }



[Eusebio]

I also cannot reproduce the "Rows reorder" example.
  Does the fact that Form1 inherits from ExamplesForm have to do with it? We don't have the source code for ExamplesForms.

[Eusebio]

I have managed to reproduce the "Rows reorder", but when I use the DataSet linked to the GridView it doesn't work.

[Dess | Tech Support Engineer, Principal]

Hello, Eusebio,

I would recommend you to refer to the following tutorial: https://www.telerik.com/blogs/extending-radgridview-to-enable-row-drag-and-drop-functionality

At the bottom of the article there is a "DOWNLOAD SOURCE" link from where you can download a complete working project with the drag and drop functionality described in the article.

If you want to get familiar with the RadGridViewDragDropService and how to work with it, you can refer to the following section in our online documentation: https://docs.telerik.com/devtools/winforms/controls/gridview/drag-and-drop/radgridviewdragdropservice

I hope this information helps. If you need any further assistance please don't hesitate to contact me.

Regards,
Dess | Tech Support Engineer, Sr.
Progress Telerik

[Eusebio]

Thank you!

This app(https://www.telerik.com/blogs/extending-radgridview-to-enable-row-drag-and-drop-functionality) is made with the DragAndDropRadGrid control.

But my application is using the RadGridView How can I do in this case? Can DragAndDropRadGrid be converted easily?

You do not have code to apply "Rows reorder" (in the same grid).

Thank you very much

[Eusebio]

Do you have examples with RadGridViewDragDropService ?

[Dess | Tech Support Engineer, Principal]

Hello, Eusebio,

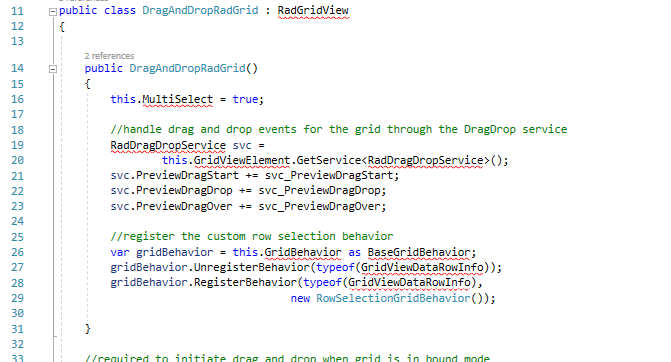

The previously referred KB article with a complete project actually uses the RadGridViewDragDropService. You have an implementation of the mentioned DragAndDropRadGrid.cs class:

Here is the complete code:

public class DragAndDropRadGrid : RadGridView
{

    public DragAndDropRadGrid()
    {
        this.MultiSelect = true;

        //handle drag and drop events for the grid through the DragDrop service
        RadDragDropService svc =
                this.GridViewElement.GetService<RadDragDropService>();
        svc.PreviewDragStart += svc_PreviewDragStart;
        svc.PreviewDragDrop += svc_PreviewDragDrop;
        svc.PreviewDragOver += svc_PreviewDragOver;

        //register the custom row selection behavior
        var gridBehavior = this.GridBehavior as BaseGridBehavior;
        gridBehavior.UnregisterBehavior(typeof(GridViewDataRowInfo));
        gridBehavior.RegisterBehavior(typeof(GridViewDataRowInfo),
                                    new RowSelectionGridBehavior());

    }

    //required to initiate drag and drop when grid is in bound mode
    private void svc_PreviewDragStart(object sender, PreviewDragStartEventArgs e)
    {
        e.CanStart = true;
    }

    //gather drag/source grid and target/destination information and initiate
    //the move of selected rows
    private void svc_PreviewDragDrop(object sender, RadDropEventArgs e)
    {
        var rowElement = e.DragInstance as GridDataRowElement;

        if (rowElement == null)
        {
            return;
        }
        e.Handled = true;

        var dropTarget = e.HitTarget as RadItem;
        var targetGrid = dropTarget.ElementTree.Control as RadGridView;
        if (targetGrid == null)
        {
            return;
        }

        var dragGrid = rowElement.ElementTree.Control as RadGridView;
        if (targetGrid != dragGrid)
        {
            e.Handled = true;
            //append dragged rows to the end of the target grid
            int index = targetGrid.RowCount;

            //Grab every selected row from the source grid, including the current row
            List<GridViewRowInfo> rows =
                                dragGrid.SelectedRows.ToList<GridViewRowInfo>();
            if (dragGrid.CurrentRow != null)
            {
                GridViewRowInfo row = dragGrid.CurrentRow;
                if (!rows.Contains(row))
                    rows.Add(row);
            }
            this.MoveRows(targetGrid, dragGrid, rows, index);
        }
    }

    private void svc_PreviewDragOver(object sender, RadDragOverEventArgs e)
    {
        if (e.DragInstance is GridDataRowElement)
        {
            e.CanDrop = e.HitTarget is GridDataRowElement ||
                        e.HitTarget is GridTableElement ||
                        e.HitTarget is GridSummaryRowElement;
        }
    }

    private void MoveRows(RadGridView targetGrid, RadGridView dragGrid,
                            IList<GridViewRowInfo> dragRows, int index)
    {
        dragGrid.BeginUpdate();
        targetGrid.BeginUpdate();
        for (int i = dragRows.Count - 1; i >= 0; i--)
        {
            GridViewRowInfo row = dragRows[i];
            if (row is GridViewSummaryRowInfo)
            {
                continue;
            }
            if (targetGrid.DataSource == null)
            {
                //unbound scenario
                GridViewRowInfo newRow = targetGrid.Rows.NewRow();

                foreach (GridViewCellInfo cell in row.Cells)
                {
                    if (newRow.Cells[cell.ColumnInfo.Name] != null)
                        newRow.Cells[cell.ColumnInfo.Name].Value = cell.Value;
                }

                targetGrid.Rows.Insert(index, newRow);

                row.IsSelected = false;
                dragGrid.Rows.Remove(row);
            }
            else if (typeof(DataSet).IsAssignableFrom(targetGrid.DataSource.GetType()))
            {
                //bound to a dataset scenario
                var sourceTable = ((DataSet)dragGrid.DataSource).Tables[0];
                var targetTable = ((DataSet)targetGrid.DataSource).Tables[0];

                var newRow = targetTable.NewRow();
                foreach (GridViewCellInfo cell in row.Cells)
                {
                    newRow[cell.ColumnInfo.Name] = cell.Value;
                }

                sourceTable.Rows.Remove(((DataRowView)row.DataBoundItem).Row);
                targetTable.Rows.InsertAt(newRow, index);
            }
            else if (typeof(IList).IsAssignableFrom(targetGrid.DataSource.GetType()))
            {
                //bound to a list of objects scenario
                var targetCollection = (IList)targetGrid.DataSource;
                var sourceCollection = (IList)dragGrid.DataSource;
                sourceCollection.Remove(row.DataBoundItem);
                targetCollection.Add(row.DataBoundItem);
            }
            else
            {
                throw new ApplicationException("Unhandled Scenario");
            }
            index++;
        }
        dragGrid.EndUpdate(true);
        targetGrid.EndUpdate(true);
    }


}

//initiates drag and drop service for clicked rows
public class RowSelectionGridBehavior : GridDataRowBehavior
{
    protected override bool OnMouseDownLeft(MouseEventArgs e)
    {
        GridDataRowElement row = this.GetRowAtPoint(e.Location) as GridDataRowElement;
        if (row != null)
        {
            RadGridViewDragDropService svc =
                        this.GridViewElement.GetService<RadGridViewDragDropService>();
            svc.Start(row);
        }
        return base.OnMouseDownLeft(e);
    }
}

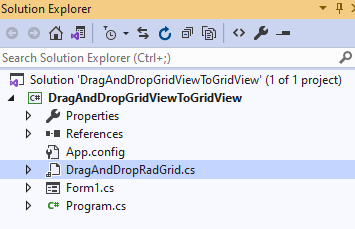

This is a derivative of RadGridView, but the separate class is used just as a wrapper to separate the  drag and drop implementation from the code of the form. You can see that all described events for the drag drop service are used here:

If you don't want to separate the logic from the Form.cs file, you can use the default RadGridView, subscribe to the PreviewDragOver, PreviewDragDrop events of the service and start the service in the OnMouseDownLeft method of the GridDataRowBehavior.

But I would recommend you to use it as a custom control like in the above example. Thus it would be easier to use it multiple times without duplicating the code.

Should you have further questions please let me know.

Regards,
Dess | Tech Support Engineer, Sr.
Progress Telerik

[levenzer]

Hello Dess.

I was looking for help on this too.

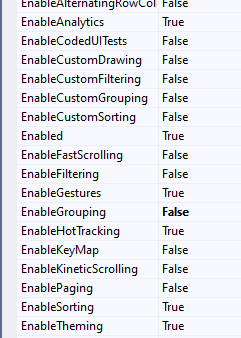

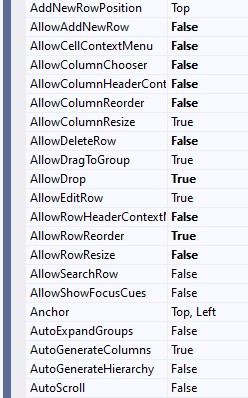

I wanted to change the order of rows in a bounded mode gridview by drag-and-drop. I finally managed to drag but not drop it :(
When I release the left mouse button, the order of the lines does not change. What am I missing?

https://imgur.com/a/NFaHBgE (The page did not allow uploading gifs)

[Dinko | Tech Support Engineer]

Thank you for the provided gif file.

Looking at the gif file I can't say what is the reason behind this. Could it be possible to share how the control is set up? This way I can take a closer look at what is going on. It will be great if you can isolate this in a standalone project so that I can debug it on my side.
