Donut RadChart View Overlap And Not Show the smart label, (using smartlabel and donut series)

1 Answer 19 Views
ChartView Label
Genda
Top achievements
Rank 2
Genda asked on 20 May 2021, 08:11 AM

I have a problem about the donut chart and the labels that are displayed ..

How do I organize and display labels that are not drawn due to the previously set space, so that they become visible? thank you, I hope someone finds a solution to this problem ..



1 Answer, 1 is accepted

Sort by
0
Accepted
Dess | Tech Support Engineer, Principal
Telerik team
answered on 20 May 2021, 11:35 AM

Hello, Genda,

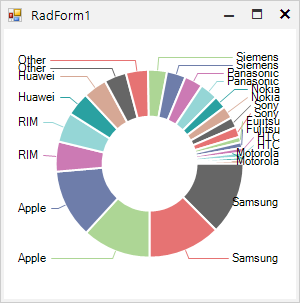

RadChartView’s SmartLabelsController uses strategies specific to different chart types to resolve label overlaps. The default available strategies are FourPositionsLabelsStrategy, EightPositionsLabelsStrategy, PieTwoLabelColumnsStrategy, VerticalAdjusmentLabelsStrategy. You can find below a sample code snippet demonstrating how to adjust some settings of the strategy:

public RadForm1()
        {
            InitializeComponent();

            List<KeyValuePair<double, object>> data = new List<KeyValuePair<double, object>>();

            data.Add(new KeyValuePair<double, object>(46, "Samsung"));
            data.Add(new KeyValuePair<double, object>(43.5, "Apple"));
            data.Add(new KeyValuePair<double, object>(19, "RIM"));
            data.Add(new KeyValuePair<double, object>(15, "Huawei"));
            data.Add(new KeyValuePair<double, object>(14, "Other"));
            data.Add(new KeyValuePair<double, object>(12, "Siemens"));
            data.Add(new KeyValuePair<double, object>(11.5, "Panasonic"));
            data.Add(new KeyValuePair<double, object>(8, "Nokia"));
            data.Add(new KeyValuePair<double, object>(6.5, "Sony"));
            data.Add(new KeyValuePair<double, object>(3.5, "Fujitsu"));
            data.Add(new KeyValuePair<double, object>(3, "HTC"));
            data.Add(new KeyValuePair<double, object>(2, "Motorola"));

            this.radChartView1.AreaType = ChartAreaType.Pie;
            DonutSeries series = new DonutSeries();
            foreach (KeyValuePair<double, object> dataItem in data)
            {
                PieDataPoint point = new PieDataPoint(dataItem.Key, dataItem.Value.ToString());
                point.Label = dataItem.Value.ToString();
                series.DataPoints.Add(point);

                point = new PieDataPoint(dataItem.Key, dataItem.Value.ToString());
                point.Label = dataItem.Value.ToString();
                series.DataPoints.Add(point);
            }
            series.ShowLabels = true;
            this.radChartView1.Series.Add(series);
            series.DrawLinesToLabels = true;

            SmartLabelsController controler = new SmartLabelsController();
            PieTwoLabelColumnsStrategy strategy = new PieTwoLabelColumnsStrategy();
            strategy.DistanceToLabel = -10;
            strategy.DistanceBetweenLabels = -10;
            controler.Strategy = strategy;
            this.radChartView1.Controllers.Add(controler);
        }

Note that you can implement your own label's strategy and thus implement custom algorithm for placing the labels. You can find here a sample approach for implementing your own strategy: https://docs.telerik.com/devtools/winforms/controls/chartview/features/smart-labels#custom-labels-strategy

I hope this information helps. If you need any further assistance please don't hesitate to contact me.
