Display Buy/Sell Indicator in CandleStickSeries based ChartView

2 posts, 0 answers
  1. willie johnson
    willie johnson avatar
    7 posts
    Member since:
    Apr 2006

    Posted 26 Feb 2018 Link to this post

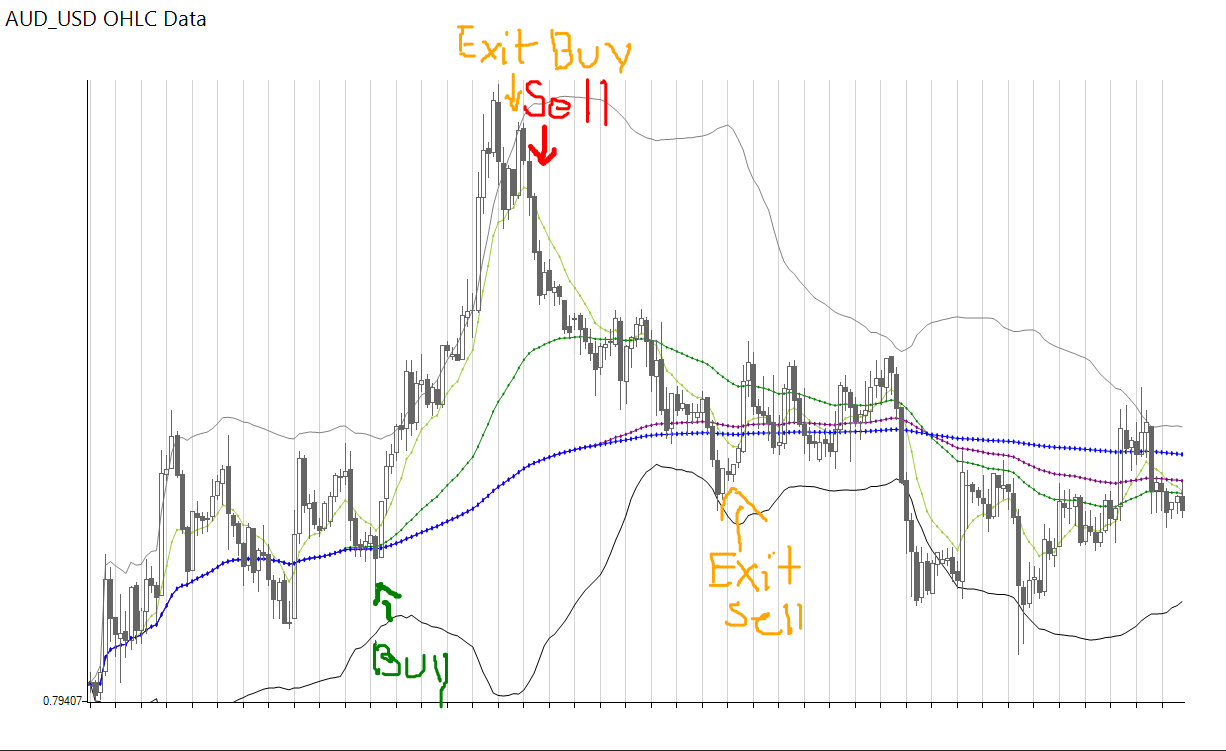

    Need help trying to figure out how to add custom buy/sell indicator, label and or colors to a chart that is based on the CandleStick Series. I attached a example of what i am looking to accomplish, this is a screenshot of an existing chart i created, it display the O,H,L,V, and other indicators like ema, just having a hard time trying to figure out how to add custom items like symbols (triangles, arrows, and a bar) at a specific point in date and time and display the symbol, and buy/sell label how do i accomplish this and is this possible using RadChartView?

  2. Hristo
    Admin
    Hristo avatar
    1520 posts

    Posted 27 Feb 2018 Link to this post

    Hello Willie,

    Thank you for writing.

    If I understand correctly, you need to customize the data points displayed in the chart. This can be accomplished with a custom renderer and custom CandlestickSeriesDrawParthttps://docs.telerik.com/devtools/winforms/chartview/customization/custom-rendering.

    In the context of the CandleStickSeries you can change the renderer this way:
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();

            this.radChartView1.CreateRenderer += radChartView1_CreateRenderer;

            CandlestickSeries candlestickSeries = new CandlestickSeries();
                                                             //o   h   l  c
            candlestickSeries.DataPoints.Add(new OhlcDataPoint(10, 11, 7, 8, DateTime.Now));
            candlestickSeries.DataPoints.Add(new OhlcDataPoint(8, 9, 5, 9, DateTime.Now.AddDays(1)));
            candlestickSeries.DataPoints.Add(new OhlcDataPoint(12, 12, 9, 10, DateTime.Now.AddDays(2)));
            candlestickSeries.DataPoints.Add(new OhlcDataPoint(7, 10, 6, 9, DateTime.Now.AddDays(3)));
            this.radChartView1.Series.Add(candlestickSeries);
        }

        private void radChartView1_CreateRenderer(object sender, ChartViewCreateRendererEventArgs e)
        {
            e.Renderer = new CustomCartesianRenderer(e.Area as CartesianArea);
        }
    }

    public class CustomCartesianRenderer : CartesianRenderer
    {
        public CustomCartesianRenderer(CartesianArea area)
            : base(area)
        { }

        protected override void Initialize()
        {
            base.Initialize();

            for (int i = 0; i < this.DrawParts.Count; i++)
            {
                CandlestickSeriesDrawPart linePart = this.DrawParts[i] as CandlestickSeriesDrawPart;
                if (linePart != null)
                {
                    this.DrawParts[i] = new MyCandlestickSeriesDrawPart((CandlestickSeries)linePart.Element, this);
                }
            }
        }
    }

    public class MyCandlestickSeriesDrawPart : CandlestickSeriesDrawPart
    {
        public MyCandlestickSeriesDrawPart(CandlestickSeries series, IChartRenderer renderer)
            : base(series, renderer)
        { }

        public override void DrawSeriesParts()
        {
            RadGdiGraphics radGraphics = new RadGdiGraphics(((Graphics)this.Renderer.Surface));

            for (int i = 0; i < this.Element.Children.Count; i++)
            {
                DataPointElement childElement = (DataPointElement)this.Element.Children[i];
                RadRect slot = this.Element.DataPoints[i].LayoutSlot;
                RectangleF rect = new RectangleF((float)(this.OffsetX + slot.X), (float)(this.OffsetY + slot.Y), (float)slot.Width, (float)slot.Height);

                rect.Y++;
                OhlcDataPoint point = this.Element.DataPoints[i] as OhlcDataPoint;
                GraphicsPath path = ConstructPath(point, rect);

                if (childElement.BackgroundShape != null)
                {
                    childElement.BackgroundShape.Paint((Graphics)radGraphics.UnderlayGraphics, rect);
                }

                if (point.IsFalling)
                {
                    FillPrimitiveImpl fill = new FillPrimitiveImpl(childElement, null);
                    fill.PaintFill(radGraphics, path, rect);
                }

                BorderPrimitiveImpl border = new BorderPrimitiveImpl(childElement, null);
                border.PaintBorder(radGraphics, null, path, rect);

                rect.Y--;
                radGraphics.DrawLine(Color.Red, rect.X, rect.Y + rect.Height / 2, rect.X + rect.Width, rect.Y + rect.Height / 2);
            }
        }
    }

    The example above will draw a median line through each of the data points. It is up to you, to implement the DrawSeriesParts method according to your scenario.
