Disable group sorting

3 posts, 1 answers
  1. Ilya
    Ilya avatar
    7 posts
    Member since:
    Dec 2012

    Posted 13 Oct 2015 Link to this post

    Greetings!

     I`m trying to attach context menu to a GroupFieldElement (those boxes in group panel when groupping applied) to add possibility to expand\collapse whole group.

    Everything's ok, but both mouse clicks (left\right) call group sorting event and i cannot get rid of this behavior (tried even with RadGridBehavior and overriding OnMouseUp\Down). So, how can i disable sorting event when i click on group definition in group panel with right mouse click?

     Thank you!



  2. Answer
    Dess | Tech Support Engineer, Sr.
    Admin
    Dess | Tech Support Engineer, Sr.  avatar
    4166 posts

    Posted 16 Oct 2015 Link to this post

    Hello Ilya,

    Thank you for writing.

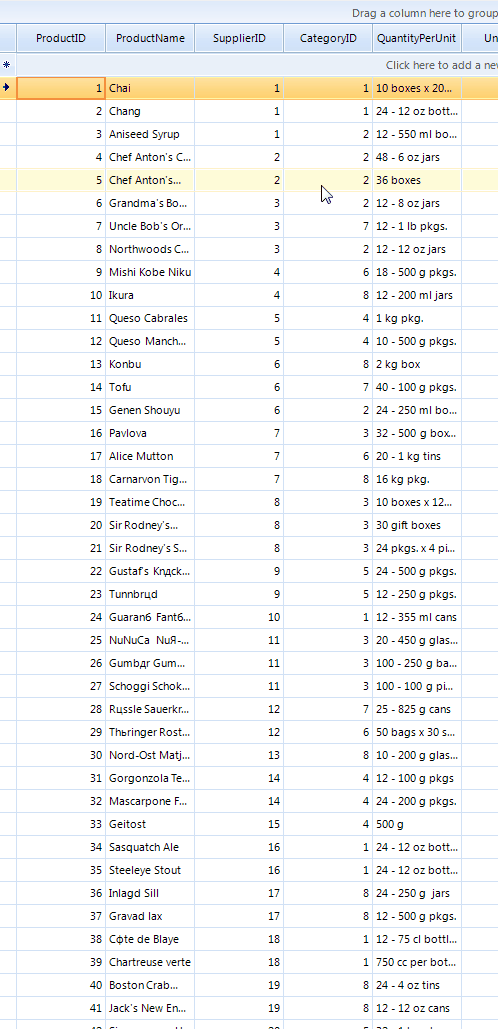

    Here is a sample code snippet demonstrating how to show a RadContextMenu with right mouse click over a GroupFieldElement and keep the ListSortDirection. The attached gif file illustrates the behavior on my end:
    RadContextMenu menu = new RadContextMenu();

    public Form1()
    {
        InitializeComponent();

        RadMenuItem item1 = new RadMenuItem("Expand Groups");
        item1.Click += item1_Click;
        RadMenuItem item2 = new RadMenuItem("Collapse Groups");
        item2.Click += item2_Click;
        menu.Items.Add(item1);
        menu.Items.Add(item2);
        this.radGridView1.MouseDown += radGridView1_MouseDown;
        this.radGridView1.MouseUp += radGridView1_MouseUp;
    }

    private void radGridView1_MouseUp(object sender, MouseEventArgs e)
    {
        if (e.Button == System.Windows.Forms.MouseButtons.Right)
        {
            GroupFieldElement el = this.radGridView1.ElementTree.GetElementAtPoint(e.Location).FindDescendant<GroupFieldElement>() ;
            if (el != null && this.radGridView1.Tag != null)
            {
                ListSortDirection direction = (ListSortDirection)this.radGridView1.Tag;
                if (direction != null)
                {
                    el.SortDescription.Direction = direction;
                }
            }
        }
    }

    private void radGridView1_MouseDown(object sender, MouseEventArgs e)
    {
        if (e.Button == System.Windows.Forms.MouseButtons.Right)
        {
            GroupFieldElement el = this.radGridView1.ElementTree.GetElementAtPoint(e.Location) as GroupFieldElement;
            if (el != null)
            {
                this.radGridView1.Tag = el.SortDescription.Direction;
                Point p = (sender as Control).PointToScreen(e.Location);
                menu.Show(p.X, p.Y);
            }
        }
    }

    private void item2_Click(object sender, EventArgs e)
    {
        foreach (GridViewGroupRowInfo g in this.radGridView1.ChildRows)
        {
            g.IsExpanded = false;
        }
    }

    private void item1_Click(object sender, EventArgs e)
    {
        foreach (GridViewGroupRowInfo g in this.radGridView1.ChildRows)
        {
            g.IsExpanded = true;
        }
    }

    Note that this is just a sample approach and it may not cover all possible cases. Feel free to modify it in a way which suits your requirement best.

    I hope this information helps. Should you have further questions I would be glad to help.

    Regards,
    Dess
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Ilya
    Ilya avatar
    7 posts
    Member since:
    Dec 2012

    Posted 16 Oct 2015 in reply to Dess | Tech Support Engineer, Sr. Link to this post

    Thank you very much! That`s great!)
