Diagram intermediate connection points

4 Answers 46 Views
Diagram
This is a migrated thread and some comments may be shown as answers.
Nick
Top achievements
Rank 1
Nick asked on 29 Nov 2016, 05:49 PM

Hello,

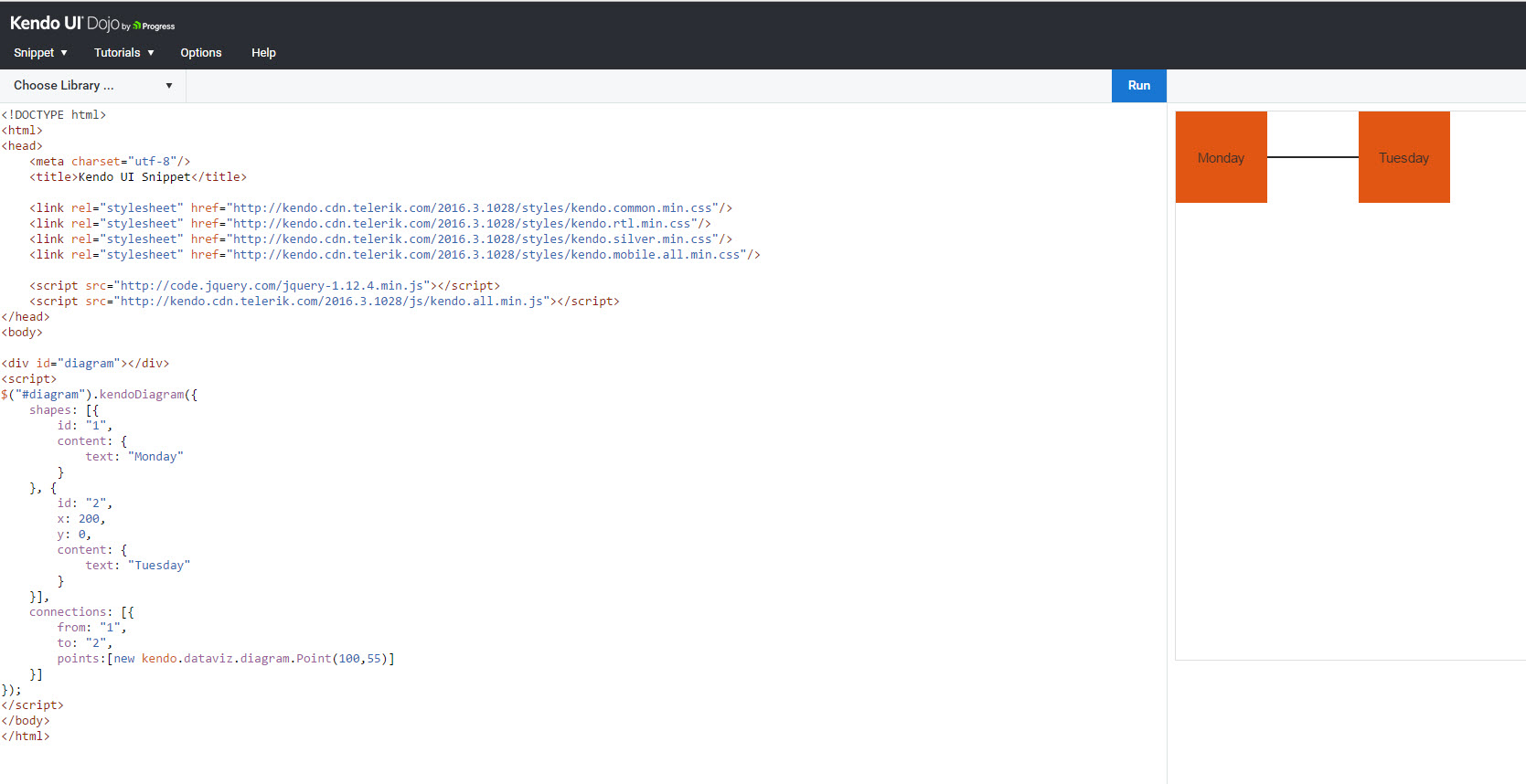

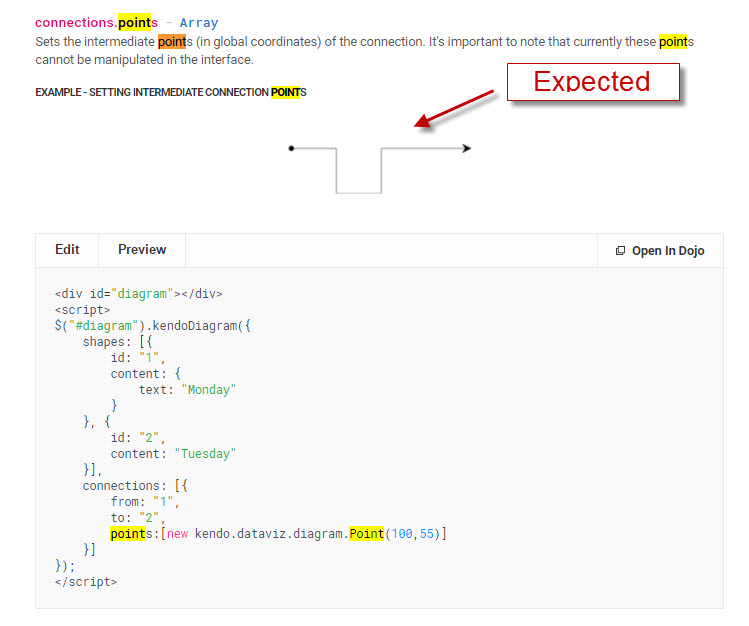

I'm trying to open dojo example for diagram intermediate connection points (http://docs.telerik.com/kendo-ui/api/javascript/dataviz/ui/diagram#configuration-connections.points). However it doesn't work for me (http://dojo.telerik.com/ozIno) as connection is still a straight line (screenshot2.jpg).

Could you please provide a working example of this feature?

Thank you,

Nick

4 Answers, 1 is accepted

Sort by
0
Vessy
Telerik team
answered on 01 Dec 2016, 11:46 AM
Hi Nick,

In order to set custom points to a connections you will need to make sure that the connection's type is set to "polyline", but not "cascading" which is the default connecttion.type.

We will make sure to update our documentation appropriately. Meanwhile, you can take a look at the sample here: http://dojo.telerik.com/@veselinar/EFenow

Regards,
Vessy
Telerik by Progress
Kendo UI is ready for Visual Studio 2017 RC! Learn more.
0
Nick
Top achievements
Rank 1
answered on 05 Dec 2016, 07:56 PM

Hi,

Could you please advise how to make it work (custom points) with dynamic data sources?

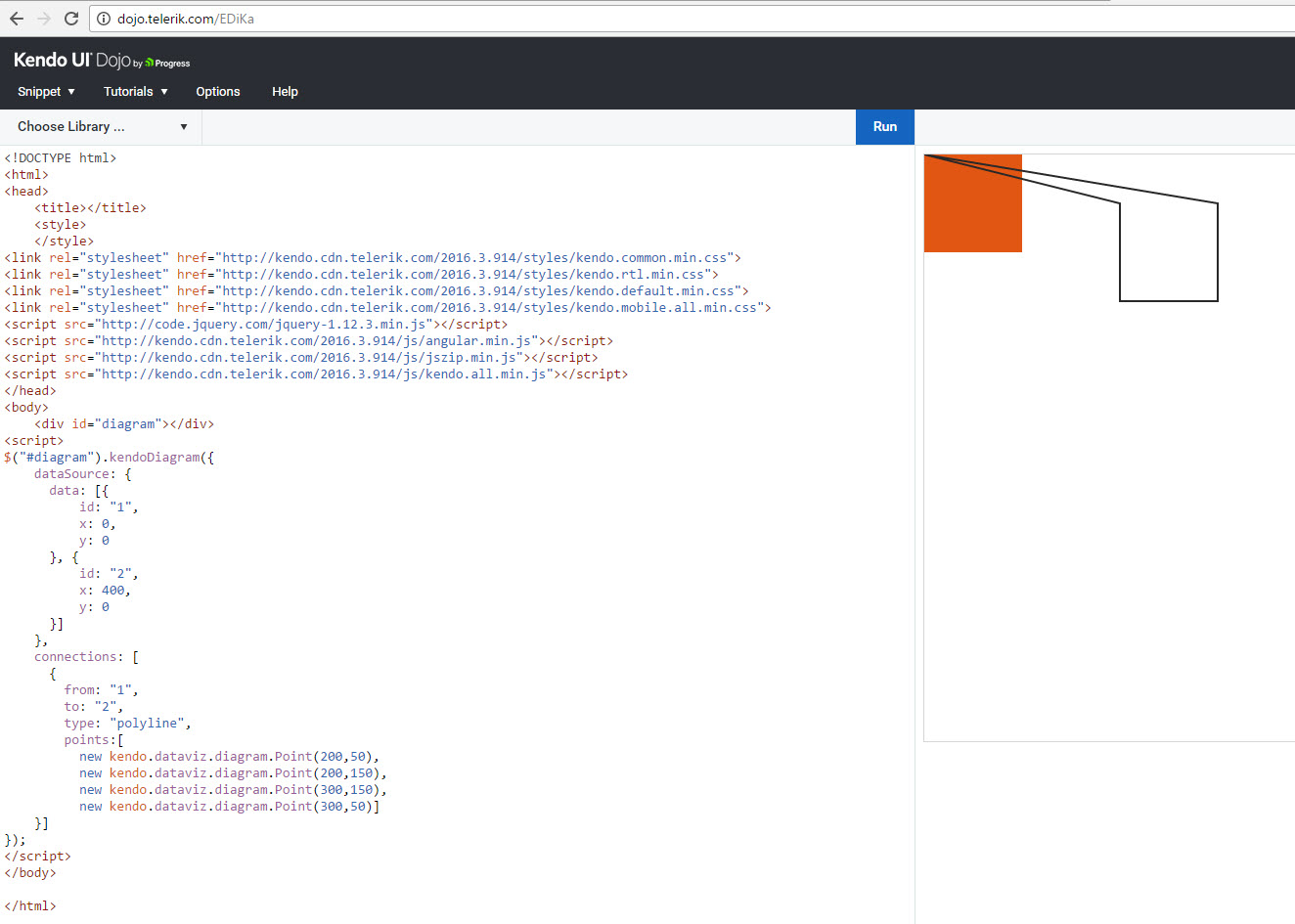

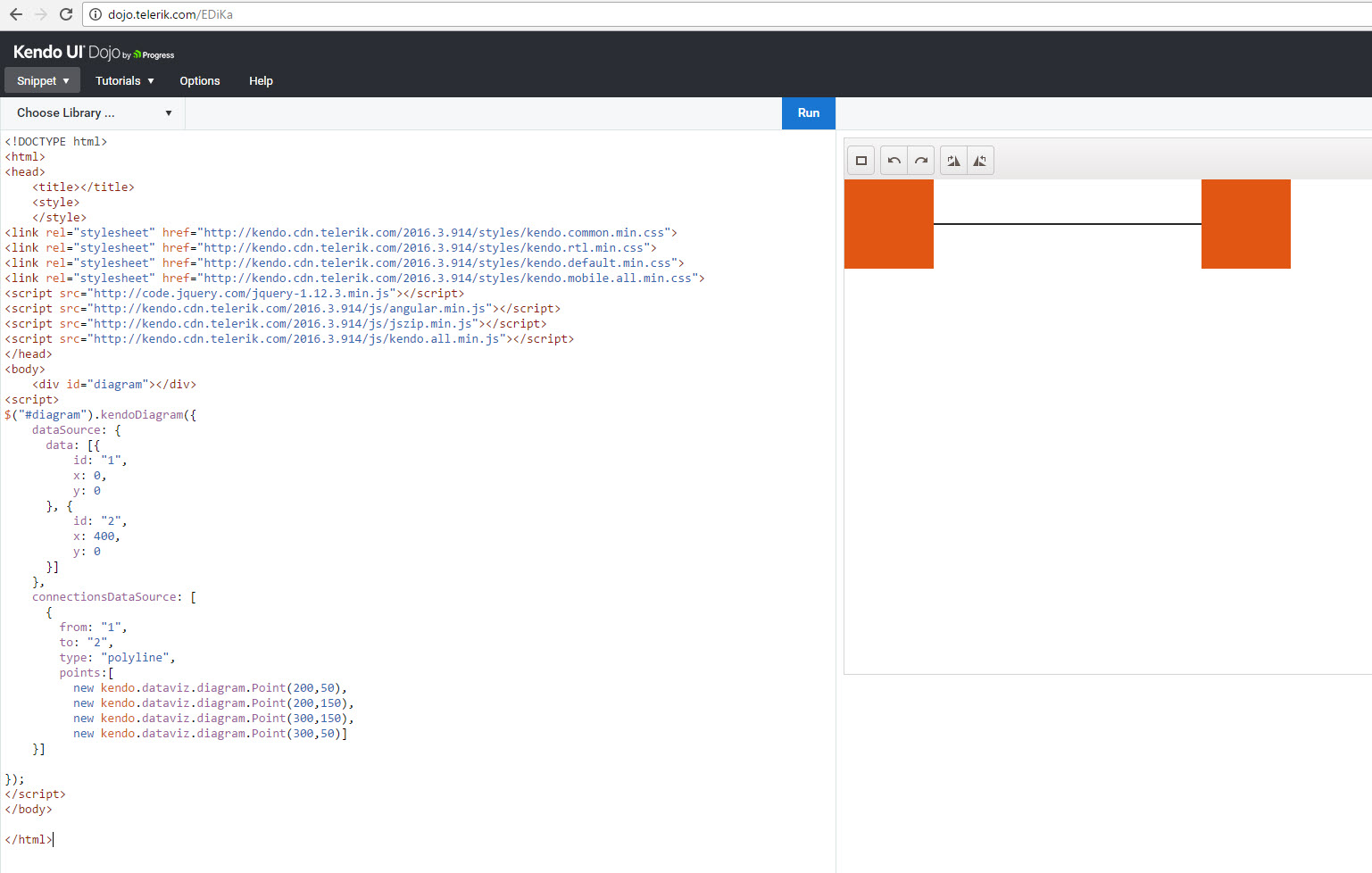

I want exactly same behaviour as on your example (http://dojo.telerik.com/@veselinar/EFenow) but with dynamic data sources for shapes (http://dojo.telerik.com/EDiKa) and connections (http://dojo.telerik.com/ILUgO). At the moment with same data as in your example I have absolutely unpredictable behavior and 2 different diagrams rendered (see attached screenshots).
