Custom numeric filter cell with filter operator DropDownList

[Christian]

Hello KendoReact Team,

is there an example that shows how to fully customise a numeric filter cell? I have the case that I need a filter cell for integers and one for decimals. The creation of the component is done, but I can't find an example that also implies the filter operator. The following questions arise from the problem.

1. Where can I view all the CSS classes of KendoReact that I can use for component styling? E.g. `k-icon k-i-filter-clear k-buttonicon` With this class I can style a clear button, including automatic assignment of the icon.

2. Which element is necessary to display the selection list of the filter operator?

3. Is it possible to implement the filter element in the standard display?



Thank you for the help

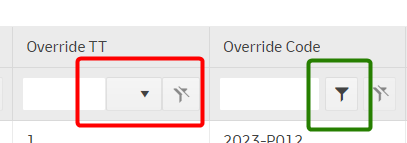

Screen capture



Code

import { NumericTextBox, NumericTextBoxChangeEvent } from "@progress/kendo-react-inputs";
import { GridFilterCellProps } from "@progress/kendo-react-grid";
import { Button } from "@progress/kendo-react-buttons";
import React, { useState } from "react";
import { DropDownList } from "@progress/kendo-react-dropdowns/dist/npm/DropDownList/DropDownList";
import { DropDownListChangeEvent } from "@progress/kendo-react-dropdowns";

type CustomNumericFilterCellProps = {
  gridFilterCellProps: GridFilterCellProps;
  format: string;
};

type NumericFilterOperatorType = {
  text: string;
  operator: string;
};

const numericFilterOperators: NumericFilterOperatorType[] = [
  { text: "Is equal to", operator: "eq" },
  { text: "Is not equal to", operator: "neq" },
  { text: "Is greater than or equal", operator: "gte" },
  { text: "Is greater than", operator: "gt" },
  { text: "Is less than or equal", operator: "lte" },
  { text: "Is less than", operator: "lt" },
  { text: "Is null", operator: "isnull" },
  { text: "Is not null", operator: "isnotnull" },
];

export const CustomNumericFilterCell = ({
  gridFilterCellProps,
  format,
}: CustomNumericFilterCellProps) => {
  const { onChange: filterCellPropsOnChange } = gridFilterCellProps;

  const [filterCellValue, setFilterCellValue] = useState<number | null>(null);
  const [isFilterActive, setIsFilterActive] = useState<boolean>(false);
  const [selectedOperator, setSelectedOperator] = useState<NumericFilterOperatorType>(
    numericFilterOperators[0]
  );

  const numericTextBoxOnChange = (event: NumericTextBoxChangeEvent) => {
    const { value: filterValue } = event.target;
    setFilterCellValue(filterValue);
    setIsFilterActive(true);

    filterCellPropsOnChange({
      value: filterValue,
      operator: filterValue ? selectedOperator.operator : "",
      syntheticEvent: event.syntheticEvent,
    });
  };

  const onButtonClearClick = (event: React.MouseEvent<HTMLButtonElement, MouseEvent>) => {
    event.preventDefault();
    setFilterCellValue(null);
    setIsFilterActive(false);
    setSelectedOperator(numericFilterOperators[0]);

    filterCellPropsOnChange({
      value: "",
      operator: "",
      syntheticEvent: event,
    });
  };

  const dropdownlistOnChange = (event: DropDownListChangeEvent) => {
    const operator = event.value as NumericFilterOperatorType;
    setSelectedOperator(operator);
  };

  return (
    <div className="k-filtercell">
      <NumericTextBox onChange={numericTextBoxOnChange} format={format} value={filterCellValue} />

      <DropDownList
        data={numericFilterOperators}
        textField="text"
        dataItemKey="operator"
        onChange={dropdownlistOnChange}
        value={numericFilterOperators.find((item) => item.operator === selectedOperator.operator)}
        className="k-button k-filtercell-clear"
        popupSettings={{ width: "180px" }}
      />

      <Button title="Clear" onClick={onButtonClearClick}>
        <span
          className={`k-icon k-i-filter-clear k-button-icon ${
            !isFilterActive ? "k-disabled" : "k-clear-button-visible"
          }`}
        />
      </Button>
    </div>
  );
};



[Christian]

Hello,

after much trial and error, I have found a solution. For all those who are interested.

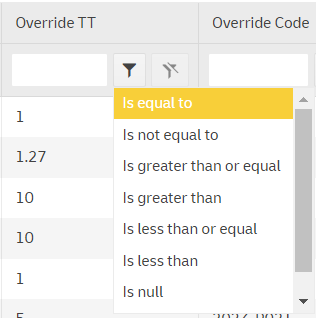

Screen


import { NumericTextBox, NumericTextBoxChangeEvent } from"@progress/kendo-react-inputs";
import { GridFilterCellProps } from"@progress/kendo-react-grid";
import { Button } from"@progress/kendo-react-buttons";
importReact, { useState } from"react";
import { DropDownList } from"@progress/kendo-react-dropdowns/dist/npm/DropDownList/DropDownList";
import { DropDownListChangeEvent } from"@progress/kendo-react-dropdowns";
import { KendoReactNumericFilterFormat } from"./KendoReactNumericFilterFormat";

exporttypeCustomNumericFilterCellProps = {
  gridFilterCellProps: GridFilterCellProps;
  format: KendoReactNumericFilterFormat;
};

typeNumericFilterOperatorType = {
  text: string;
  operator: string;
};

constnumericFilterOperators: NumericFilterOperatorType[] = [
  { text: "Is equal to", operator: "eq" },
  { text: "Is not equal to", operator: "neq" },
  { text: "Is greater than or equal", operator: "gte" },
  { text: "Is greater than", operator: "gt" },
  { text: "Is less than or equal", operator: "lte" },
  { text: "Is less than", operator: "lt" },
  { text: "Is null", operator: "isnull" },
  { text: "Is not null", operator: "isnotnull" },
];

exportconstCustomNumericFilterCell = ({
  gridFilterCellProps,
  format,
}: CustomNumericFilterCellProps) => {
  const { onChange: filterCellPropsOnChange } = gridFilterCellProps;

  const [filterCellValue, setFilterCellValue] = useState<number | null>(null);
  const [isFilterActive, setIsFilterActive] = useState<boolean>(false);
  const [selectedOperator, setSelectedOperator] = useState<NumericFilterOperatorType>(
    numericFilterOperators[0]
  );

  constnumericTextBoxOnChange = (event: NumericTextBoxChangeEvent) => {
    const { value: filterValue } = event.target;
    setFilterCellValue(filterValue);
    setIsFilterActive(true);

    filterCellPropsOnChange({
      value: filterValue,
      operator: filterValue ? selectedOperator.operator : "",
      syntheticEvent: event.syntheticEvent,
    });
  };

  constonButtonClearClick = (event: React.MouseEvent<HTMLButtonElement, MouseEvent>) => {
    event.preventDefault();
    setFilterCellValue(null);
    setIsFilterActive(false);
    setSelectedOperator(numericFilterOperators[0]);

    filterCellPropsOnChange({
      value: "",
      operator: "",
      syntheticEvent: event,
    });
  };

  constdropdownlistOnChange = (event: DropDownListChangeEvent) => {
    const operator = event.valueasNumericFilterOperatorType;
    setSelectedOperator(operator);
    setIsFilterActive(true);
  };

  return (
    <div className="k-filtercell">
      <NumericTextBox
        style={{ marginRight: "4px" }}
        onChange={numericTextBoxOnChange}
        format={format}
        value={filterCellValue}
      />

      <DropDownList
        data={numericFilterOperators}
        textField="text"
        dataItemKey="operator"
        onChange={dropdownlistOnChange}
        value={numericFilterOperators.find((item) => item.operator === selectedOperator.operator)}
        popupSettings={{ width: "180px" }}
        className="k-dropdownlist k-picker k-dropdown-operator k-picker-md k-rounded-md k-picker-solid"
        iconClassName="k-icon k-i-filter k-button-icon"
        style={{ marginRight: "4px" }}
      />

      <Button
        title="Clear"
        className="k-button-md"
        onClick={onButtonClearClick}
        disabled={!isFilterActive}
      >
        <span
          className={`k-icon k-i-filter-clear k-button-icon ${
            !isFilterActive ? "k-disabled" : "k-clear-button-visible"
          }`}
        />
      </Button>
    </div>
  );
};


[Konstantin Dikov]

Hi Christian,

I am glad to see that you have found a solution for the operators and the filtering.

As for a list with all class names, I have to say that we do not have such list available and in order to use the class names of KendoReact components for styling elements you can inspect the rendered elements in the browser for the component which styles you want to use and see the structure and the applied class names.



[Christian]

Hello Konstantin,

thank you for your response. I still have a question about the custom filter cell. If I want to use this with floating point numbers, I get an error with numbers with a leading 0. Do you have a suggestion on how I can deal with this? The NumericTextBox only accepts numbers.

[Konstantin Dikov]

Hi Christian,

The NumericTextBox works only with numbers, so if you need to use leading zeroes you will have to use a simple input element (000.1 for example). However, if the issue is observed with numbers like 0.1, this could indicate that you are passing string values and not a float numbers to the underlying data of the Grid (the data property).

Nevertheless, if the issue persists, please share a stackblitz example demonstrating the problem, so we can test and debug it locally.
