Custom Filter with Checkboxes

31 posts, 1 answers
  1. Flo
    Flo avatar
    6 posts
    Member since:
    Apr 2014

    Posted 11 Sep 2014 Link to this post

    Hy,

    I've got a Column with String Values!

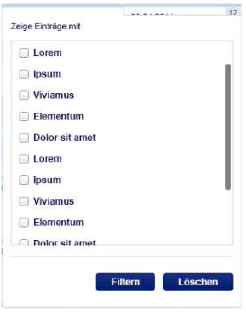

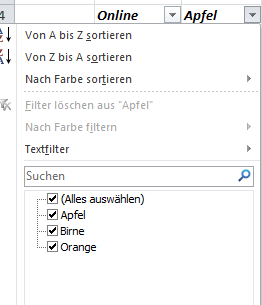

    Our Customer wants to filter this Column with Checkboxes (like it is in Excel > look 'filter_checkbox-excel.png' attached) based on the Values of the Column and with "or"-Functionality! I've added a Screenshot oft the Design (filter_checkbox-web.png), how it should look like - can anyone say if this is possible?

    greetings from Austria
    Flo
  2. Answer
    Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 15 Sep 2014 Link to this post

    Hello Flo,

    This is not supported but it is possible to implement it by using filterable ui function or the filterMenuInit event to modify the filter menu elements. I created an example that demonstrates one possible implementation with the filterMenuInit event.

    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  3. Flo
    Flo avatar
    6 posts
    Member since:
    Apr 2014

    Posted 15 Sep 2014 in reply to Daniel Link to this post

    Thank you Daniel!

    Your Code is working partly in my solution "out of the box"! I just had to do some adjustments!

    Greetings from Austria
    Flo
  4. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 19 Sep 2014 in reply to Daniel Link to this post

    Hi Daniel,

    How would you take this a step further to update the filter list in an editable grid where the user creates, edits, or delete an item?
  5. Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 23 Sep 2014 Link to this post

    Hi,

    I created an example that demonstrates how to update the filter items when the grid dataSource is changed.

    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  6. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 23 Sep 2014 in reply to Daniel Link to this post

    Thank you for this! This is great.
  7. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 03 Oct 2014 Link to this post

    Hi Daniel,

    Do you know if there is a filter menu close event? I need to reset the checkboxes in case the user changes their selections but then never clicks on the filter or clear button and just closes the menu.
  8. Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 07 Oct 2014 Link to this post

    Hello,

    The popup used by the filter menu has a close event:
    function initCheckboxFilter(e) {
        e.container.data("kendoPopup").bind("close", function (e) {
            //your logic
        });


    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  9. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 09 Oct 2014 in reply to Daniel Link to this post

    Hi Thanks for this. I swear I tried this before and it didn't work, but your code is working. I am running into another issue however. I am implementing these filter menu drop downs on multiple columns and not just 1 column as you have in the example. When I had local data for the dataSource everything was working but now that I have live data coming the server, the filters are not quite working correctly. The filters work but they are only filtering from checkboxes from 1 column.

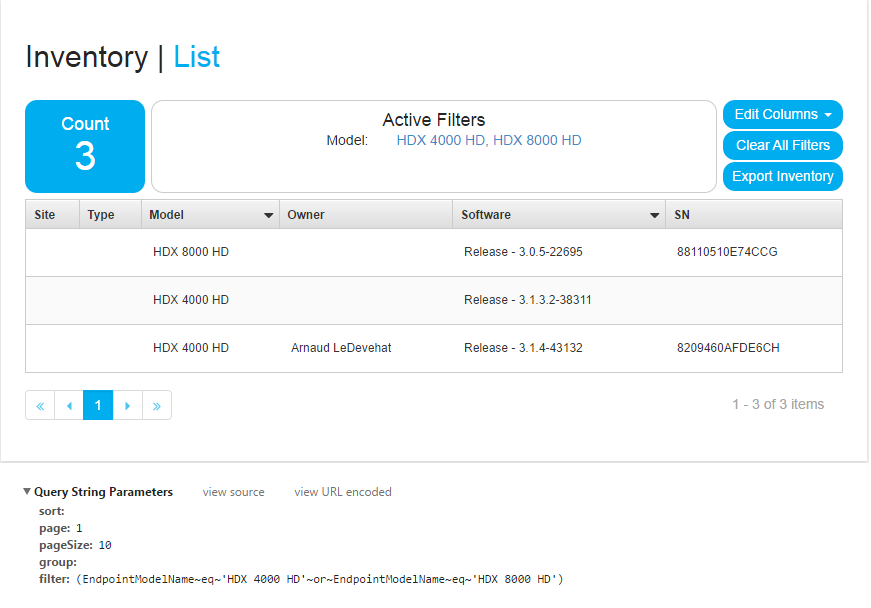

    Screen 1 shows filtering of the column "Model"

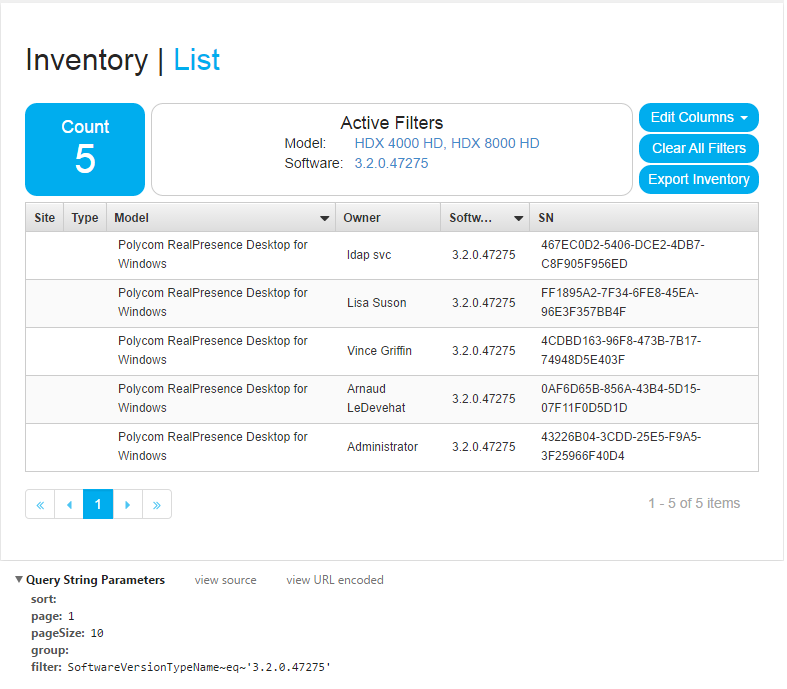

    Screen 2 should have filtering for both "Model" and "Software" but as you can see from the query string parameters its only showing filters for "Software". This filter should return 0 items as the 2 Models checked do not have software with that version.

    Your source code I am using:
    e.container.find("[type='submit']").click(function (e) {
      var filter = dataSource.filter() || { logic: "and", filters: [] };
      var fieldFilters = element.find(":checkbox:checked").map(function (idx, input) {
        return {
          field: field,
          operator: "eq",
          value: input.value
        };
      });
      if (fieldFilters.length) {
        removeFiltersForField(filter, field);
        filter.filters.push({
          logic: "or",
          filters: fieldFilters
        });
        dataSource.filter(filter);
      }
    });

  10. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 09 Oct 2014 Link to this post

    Also I am using MVC wrappers for getting the data. Here's the code for the grid

    @(Html.Kendo().Grid<EndpointViewModel>()
         .Name("grid-inventory")
         .Columns(columns =>
         {
             columns.Bound(inventoryList => inventoryList.SiteName).Title(PhoenixLocalization.Inventory.List.Site).Filterable(false);
             columns.Bound(inventoryList => inventoryList.SiteName).Title(PhoenixLocalization.Inventory.List.Type).Filterable(false);
             columns.Bound(inventoryList => inventoryList.EndpointModelName).Title(PhoenixLocalization.Inventory.List.Model);
             columns.Bound(inventoryList => inventoryList.OwnerName).Title(PhoenixLocalization.Inventory.List.Owner).Filterable(false);
             columns.Bound(inventoryList => inventoryList.SoftwareVersionTypeName).Title(PhoenixLocalization.Inventory.List.Software);
             columns.Bound(inventoryList => inventoryList.SerialNumber).Title(PhoenixLocalization.Inventory.List.SN).Filterable(false);
             columns.Bound(inventoryList => inventoryList.E164Number).Title(PhoenixLocalization.Inventory.List.E164).Filterable(false);
             columns.Bound(inventoryList => inventoryList.IpAddress).Title(PhoenixLocalization.Inventory.List.IP).Filterable(false);
             columns.Bound(inventoryList => inventoryList.ISDNVideoNumber).Title(PhoenixLocalization.Inventory.List.ISDN).Filterable(false);
             columns.Bound(inventoryList => inventoryList.H323Alias).Title(PhoenixLocalization.Inventory.List.H323).Filterable(false);
             columns.Bound(inventoryList => inventoryList.GKIp).Title(PhoenixLocalization.Inventory.List.GKIP).Filterable(false);
             columns.Bound(inventoryList => inventoryList.SipServerIP).Title(PhoenixLocalization.Inventory.List.SIP).Filterable(false);
             columns.Bound(inventoryList => inventoryList.Managed).Title(PhoenixLocalization.Inventory.List.Managed).Filterable(false);
             columns.Bound(inventoryList => inventoryList.SipURI).Title(PhoenixLocalization.Inventory.List.SIPURI).Filterable(false);
         })
         .Sortable()
         .Filterable()
         .Events(e => e.FilterMenuInit("initCheckboxFilter"))
         .DataSource(dataSource => dataSource
               .WebApi()
               .Model(model =>
               {
                   model.Id(inventoryList => inventoryList.Id); // Specify the property which is the unique identifier of the model
                   model.Field(inventoryList => inventoryList.Id).Editable(false); // Make the ProductID property not editable
               })
                   .Create(create => create.Url(Url.HttpRouteUrl("DefaultApi", new { controller = "EndpointKds" }))) // Action invoked when the user saves a new data item
                       .Read(read => read.Url(Url.HttpRouteUrl("DefaultApi", new { controller = "EndpointKds" }))) // Action invoked when the grid needs data

         )
         .Pageable()
           )
  11. Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 13 Oct 2014 Link to this post

    Hello,

    I am not sure what could be causing the described problem and at least when I tested with the example, the filtering was working correctly for multiple fields. Could you check this updated version and let me know if I am missing something?

    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  12. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 13 Oct 2014 in reply to Daniel Link to this post

    Hi Daniel,

    It seems when I set ServerOperation to false, this fixes it, however for our situation we need to have this set as True as we only want to send back data that is in the page view and not all data.
  13. Chris
    Chris avatar
    3 posts
    Member since:
    Sep 2014

    Posted 15 Oct 2014 in reply to Daniel Link to this post

    Daniel,

    First off this is great.   It works as expected if filtering on that column alone

    I have issues when it comes to multi-column sorting.  If I sort by column A then by the StatusEnum column I can see that the Ajax grid is posting two times,  first with the correct filters (Column A,  and column StatusEnum) and gets a valid result.  but then immediately does another ajax call only with column A filters?

    The same thing happens if I pre-filter "statusEnum":
    .Filter(filter => filter.Add(p => p.StatusEnum).IsNotEqualTo(Enums.StatusEnums.Cancelled)

    It initials loads with only cancled,  then if I change the filter it does two ajax calls,  first what my new selection is,  second the original filter.

    Here is the filter js:
    function onFilterMenuInit(e) {
            if (e.field == "StatusEnum") {
                initCheckboxFilter.call(this, e);
            }
        }

        function initCheckboxFilter(e) {
            var grid = $("#Tasks").data("kendoGrid");
            var field = e.field;
            var checkboxesDataSource = new kendo.data.DataSource({
                    data: [
                      { Label: "Not Started", Enum: 0 },
                      { Label: "On Hold", Enum: 1 },
                      { Label: "Complete", Enum: 2 }
                    ]
            });


            var helpTextElement = e.container.children(":first").children(":first");
            helpTextElement.nextUntil(":has(.k-button)").remove();
            var element = $("<div class='checkbox-container'></div>").insertAfter(helpTextElement).kendoListView({
                dataSource: checkboxesDataSource,
                template: "<div><label><input type='checkbox' value='#:Enum#'/> #:Label#</label></div>"
            });


            e.container.find("[type='submit']").click(function (e) {

                var filter = grid.dataSource.filter() || { logic: "and", filters: [] };

                var fieldFilters = element.find(":checkbox:checked").map(function (idx, input) {
                    return {
                        field: field,
                        operator: "eq",
                        value: input.value
                    };
                });
                if (fieldFilters.length) {
                    removeFiltersForField(filter, field);
                    filter.filters.push({
                        logic: "or",
                        filters: fieldFilters
                    });

                    grid.dataSource.filter(filter);
                }
            });
        }

        function removeFiltersForField(expression, field) {
            if (expression.filters) {
                expression.filters = $.grep(expression.filters, function (filter) {
                    removeFiltersForField(filter, field);
                    if (filter.filters) {
                        return filter.filters.length;
                    } else {
                        return filter.field != field;
                    }
                });
            }
        }

  14. Chris
    Chris avatar
    3 posts
    Member since:
    Sep 2014

    Posted 15 Oct 2014 in reply to Chris Link to this post

    I had a typo...  I said sort,  instead of filtering.

    I have issues when it comes to multi-column filtering.  If I filter by column
  15. Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 15 Oct 2014 Link to this post

    Hi,

    Thien

    If server operations are enabled then the dataSource will have the data only for the current page and filters so if all items should be shown in the checkboxlist then you should make a separate request to get all items. The filter should still work as expected for multiple columns. I attached a sample MVC project which uses server operations and seems to work as expected. Let me know if I am missing something.

    Chris

    I couldn't reproduce the multiple requests. Could you provide a runnable sample?

    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  16. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 15 Oct 2014 in reply to Daniel Link to this post

    Hey Daniel,

    I believe you are having the same issue that I am having however its just being masked by the data. As a quick replication :-

    Select a filter on Endpoint Model Name as 3 4 and 5
    Then on Software Version Type Name select 4

    This correctly filters to just one item (item 4) however if you remove the item 4 filter we should then have items 3,4,5 appear since they were added as filters, unfortunately however they revert to the full dataset.

    The problem I am seeing is that when you have two filters set and ServerOperation is true the DataSource does not return the list of filters and only applies the most recent filter instead of all filters.

    Thanks
    Thien
  17. Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 17 Oct 2014 Link to this post

    Hi Thien,

    Thank you for pointing out the issue. It seems that the default filter menu submit handler will still clear the filters for the field if there are not any values in the expected inputs. I attached an updated version of the project that stops the default handler and manually closes the popup which should resolve the problem.

    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  18. Thien
    Thien avatar
    38 posts
    Member since:
    Aug 2014

    Posted 17 Oct 2014 in reply to Daniel Link to this post

    Hi Daniel,

    Thanks for this fix. We also found a fix by adding a return false at the end of Submit button handler event.
  19. Chris
    Chris avatar
    3 posts
    Member since:
    Sep 2014

    Posted 17 Oct 2014 in reply to Daniel Link to this post

    This is perfect,  this solves the double posting issue I was having!

    Do you know how I can make it auto do this for any enum?  Currently if I have an enum the telerik grid makes filters that are a dropdown of the enum options.  I would like any enum to automatically make this check box filter option,  giving a check box for each possible enum.
  20. Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 21 Oct 2014 Link to this post

    Hello,

    The grid treats enumerations the same way as foreignkey fields so you could check if the grid column has a values option in order to automatically initialize a checkbox filter in this scenario e.g.
    function onFilterMenuInit(e) {
        var field = e.field;
        var columns = this.columns;
        var column;
        for (var idx = 0; idx < columns.length; idx++) {
            if (columns[idx].field == field) {
                column = columns[idx];
                break;
            }
        }

        if (column.values) {
            //init checkbox filter
        }
    }



    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  21. Rajasekar Nammalvar
    Rajasekar Nammalvar avatar
    16 posts
    Member since:
    Aug 2009

    Posted 29 Apr 2015 in reply to Daniel Link to this post

    I have faced the same problem that Thein has faced like the following,

    I need to reset the checkboxes in case the user changes their selections but then never clicks on the filter or clear button and just closes the menu.

    I am not sure how we can reset the user changed checkboxes unless user clicks the Fliter or Clear button. Is it possible to do with the close event as described,

    function initCheckboxFilter(e) {
    e.container.data("kendoPopup").bind("close"function (e) {
    //your logic
    });

  22. Rajasekar Nammalvar
    Rajasekar Nammalvar avatar
    16 posts
    Member since:
    Aug 2009

    Posted 01 May 2015 in reply to Rajasekar Nammalvar Link to this post

    I have fixed the Issue: Reset the checkboxes in case the user changes their selections but then never clicks on the filter or clear button and just closes the menu.

    Telerik Example: http://dojo.telerik.com/IWudI

    I have taken the code example from the above telerik link & modified the following,

    function initCheckboxFilter(e) {
     var popup = e.container.data("kendoPopup");
     var dataSource = this.dataSource;
     var field = e.field;
     var checkboxesDataSource = new kendo.data.DataSource({
                         data: uniqueForField(dataSource.data(), field)
     });
     e.container.data("kendoPopup").bind("close", function (e) {
       checkboxesDataSource.data(uniqueForField(dataSource.data(),field));
       var appliedFilter = dataSource.filter();
       if (appliedFilter != null && appliedFilter != undefined) {
       for (i = 0; i < appliedFilter.filters.length; i++) {
           var appliedFiltersChild = appliedFilter.filters[i];
           for (j = 0; j < appliedFiltersChild.filters.length; j++) {
                 if (appliedFiltersChild.filters[j].field == field)
                     $("div[class='k-animation-container'] input[type='checkbox'][value='" + appliedFiltersChild.filters[j].value + "']").prop('checked', true);
           }
       }
     }   });
    }

  23. Rajasekar Nammalvar
    Rajasekar Nammalvar avatar
    16 posts
    Member since:
    Aug 2009

    Posted 01 May 2015 in reply to Rajasekar Nammalvar Link to this post

    I have fixed the Issue: Reset the checkboxes in case the user changes their selections but then never clicks on the filter or clear button and just closes the menu.

    Telerik Example: http://dojo.telerik.com/IWudI

    I have taken the code example from the above telerik link & modified the following,

    function initCheckboxFilter(e) {
     var popup = e.container.data("kendoPopup");
     var dataSource = this.dataSource;
     var field = e.field;
     var checkboxesDataSource = new kendo.data.DataSource({
                         data: uniqueForField(dataSource.data(), field)
     });
     e.container.data("kendoPopup").bind("close", function (e) {
       checkboxesDataSource.data(uniqueForField(dataSource.data(),field));
       var appliedFilter = dataSource.filter();
       if (appliedFilter != null && appliedFilter != undefined) {
       for (i = 0; i < appliedFilter.filters.length; i++) {
           var appliedFiltersChild = appliedFilter.filters[i];
           for (j = 0; j < appliedFiltersChild.filters.length; j++) {
                 if (appliedFiltersChild.filters[j].field == field)
                     $("div[class='k-animation-container'] input[type='checkbox'][value='" + appliedFiltersChild.filters[j].value + "']").prop('checked', true);
           }
       }
     }   });
    }

  24. HungReo
    HungReo avatar
    2 posts
    Member since:
    Dec 2015

    Posted 19 Apr 2016 Link to this post

    Hi,

    Would it be possible to make the multi-checkbox filter checked by default, i.e. similar to what excel does?

  25. Daniel
    Admin
    Daniel avatar
    2231 posts

    Posted 22 Apr 2016 Link to this post

    Hi,

    You can apply the initial state in the template:
    template: "<div><input type='checkbox' checked='checked' value='#:" + field + "#'/>#:" + field + "#</div>"


    Regards,
    Daniel
    Telerik

    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  26. Rahul
    Rahul avatar
    1 posts
    Member since:
    Mar 2019

    Posted 01 Apr 2019 in reply to Daniel Link to this post

    Hi Daniel,


    I am trying to create a multi checkbox filter for a Kendo grid column. For this feature I am using "multi:true" property on the column's filterable. I also want to use the "ui" callback function (filterable:ui) which does not seem to work when I have the "multi:true" property set. If I remove this property, the "ui:function(e){}" gets called.

    Is there a way I can use both these together? -  https://dojo.telerik.com/EcUdaFeT/5

  27. Viktor Tachev
    Admin
    Viktor Tachev avatar
    2501 posts

    Posted 03 Apr 2019 Link to this post

    Hi Rahul,

    Generally the filterable.ui setting is used when customizing the filter for a given Grid column. For example when you would like to use a different input in the filter menu.

    With that said, would you elaborate in more detail what is the functionality you would like to implement? If we have better understanding of your goal we will be able to provide specific suggestions on how it can be implemented.

    Regards,
    Viktor Tachev
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  28. Shawn
    Shawn avatar
    57 posts
    Member since:
    Jul 2011

    Posted 16 Aug 2019 in reply to Daniel Link to this post

    Hi Daniel.

    I how can I achieve this when I have column menu specified on the grid?

    I've found this post (https://www.telerik.com/forums/filtermenuinit-event-not-fired) that says to use columnMenuInit instead.  But when I do so, I don't seem to have the same access to the Filter Container as your example demonstrates?

  29. Viktor Tachev
    Admin
    Viktor Tachev avatar
    2501 posts

    Posted 20 Aug 2019 Link to this post

    Hello Shawn,



    When you specify filterable.ui for a Grid column the customized filter will be used with filter menu and column menu. There is no need to handle other events in this case. Check out the example below that illustrates how you can customize the filters when column menu is enabled.

    https://dojo.telerik.com/aNAWEnev



    Regards, Viktor Tachev
    Progress Telerik

    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  30. Len
    Len avatar
    3 posts
    Member since:
    May 2017

    Posted 16 Sep 2020 in reply to Daniel Link to this post

    How are the checkboxes retaining their selected state when the element is re-built when it it is opened?
Back to Top
