[Solved] Cursor does not goes to end of text after inserting image

[Kiran]

Hello,

I am using RadRichTextBox in which RadDocument with Paged LayoutMode and Section is used.
When I enter text, Cursor will be at the end.
When I insert image into RichTextBox Image will be displayed after the ‘Text’.

My problem is that, When I Click the mouse on last character in the text or then press end key.
Cursor remains one character before end of text/last character.

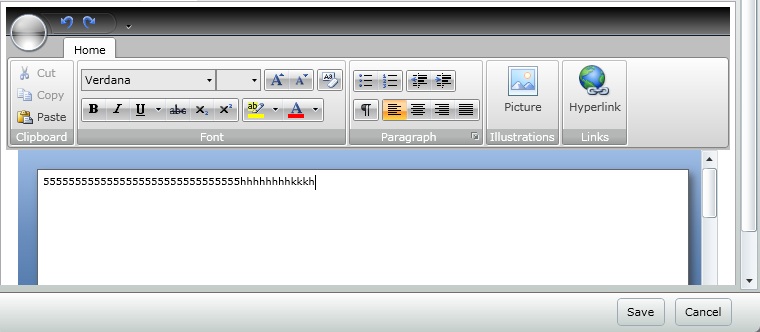

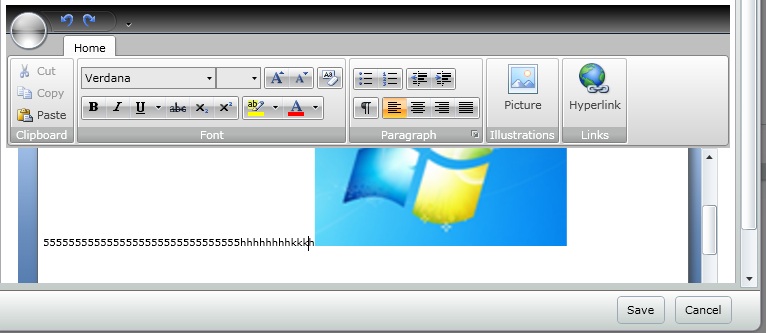

Please find attached images for your reference.

Here is the code:

<telerik:RadRichTextBox VerticalAlignment="Stretch" HorizontalAlignment="Stretch" HorizontalContentAlignment="Stretch"
x:Name="radRichTextBoxFullText" Grid.Row="1" BorderBrush="DarkGray" BorderThickness="1" FontSize="5" Foreground="Red"  Grid.RowSpan="2" IsSpellCheckingEnabled="False" Width="700" Height="200">
                                   <telerik:RadRichTextBox.Document>
                                       <telerik:RadDocument LayoutMode="Paged" DefaultPageLayoutSettings="650,500">
                                           <telerik:Section PageMargin="5,5,5,5">
                                               <telerik:Paragraph FontSize="10">
                                               </telerik:Paragraph>
                                           </telerik:Section>
                                       </telerik:RadDocument>
                                   </telerik:RadRichTextBox.Document>

                                   <Interactivity:Interaction.Triggers>
                                       <Interactivity:EventTrigger EventName="LostFocus">
                                           <TriggerActions:MapEventToCommand Command="{Binding OnFullTextLostFocus}"></TriggerActions:MapEventToCommand>
                                       </Interactivity:EventTrigger>
                                       <Interactivity:EventTrigger EventName="DocumentContentChanged">
                                           <TriggerActions:MapEventToCommand Command="{Binding OnAnnouncementUpdated}"></TriggerActions:MapEventToCommand>
                                       </Interactivity:EventTrigger>
                                   </Interactivity:Interaction.Triggers>
                               </telerik:RadRichTextBox>



 Please help me in this case.

[Boby]

Hello Kiran,
Unfortunately we cannot reproduce the issue. Could you please try to remove the attached triggers and check if this solves the problem? If not, please open a support ticket with attached sample project reproducing the problem, so we can investigate it further.

All the best, Boby
the Telerik team

[Kiran]

Hi Boby,

Thanks for you reply.

I checked after removing attached triggers to RadRichTextBox. but, still it is not working.

Thanks in advance.
Kiran Ghanwat

[Boby]

Hello Kiran,
We managed to reproduce the issue. We will add it to our to-do list and will try to fix it for some of the next releases. The points in your account have been updated in appreciation for this bug report.

Don't hesitate to contact us if you have other questions.

All the best,
Boby
the Telerik team
