CrossTab with fixed width possible?

[Tobias]

Hello,

is it possible to set a CrossTab to a fixed width​? The first column (underneath the corner) and the last column (the total column) should also get a fixed width but all columns between them should became the same width wich is calculated by "<remaining space> divided by <number-of-columns>".

I know it could be possible that the content of the columns is truncated because the columns are getting to small but for this case I would dynamically downsize the font size.

Greetings from Germany,

Tobias

[Nasko]

Hello Tobias,

The Crosstab item does not provide an auto-size or a fixed width out-of-the-box.
You can create the whole Crosstab item programmatically in your application and set its column widths according to custom logic based on your data. Note that this is not a trivial solution and you will need the help of the Reporting API Reference.

Regards,
Nasko
Telerik

[Tobias]

Hello Nasko,

thank you for your reponse. I want to create the Crosstab programmatically but where? I am looking for an event like "data source bound" where I can start analyzing the bound data to create the column widths programmatically.

Regards,

Tobias

[Tobias]

Hello Nasko,

I got it! I have to use the ItemDataBinding event of the cross table. At this point I can calculate with the data and manipulate the crosstable definition and all of the child items.

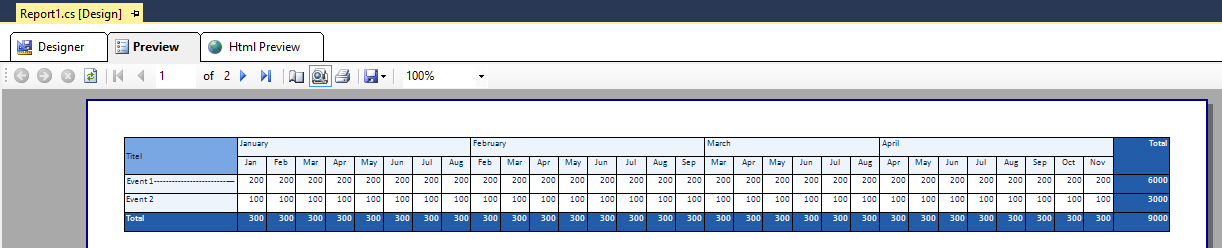

I have attached my result.

Regards,

Tobias

[Tobias]

Hello,

it's me again. I though I got it but I get it only to work in the preview in the designer but not if I render the report as PDF. If I programmatically render a report and want to set the bound data from outside I can only use the DataSource property of the Report class. Am I right? I am rendering the report as follows:

01.var reportModel = new MainReportModel()
02.{
03.    Orders = Report1._Orders()
04.};
05.
06.ObjectDataSource objectDataSource = new ObjectDataSource();
07.objectDataSource.DataSource = reportModel;
08.
09.var report = new Report1();
10.report.DataSource = objectDataSource;
11.
12.InstanceReportSource instanceReportSource = new InstanceReportSource();
13.instanceReportSource.ReportDocument = report;
14.
15.ReportProcessor reportProcessor = new ReportProcessor();
16.RenderingResult renderingResult = reportProcessor.RenderReport("PDF", instanceReportSource, null);
17.
18.File.WriteAllBytes("test.pdf", renderingResult.DocumentBytes);

For design time I added a ObjectDataSource of type Order. So I can use the expression designer for example. For render time I added a binding to my crosstable to bind DataSource to the Orders property of MainReportModel. How can I get the bound order list in the ItemDataBinding event to do my calculation of the column width?

Regards,

Tobias
