Conditionally format backcolor of Summary Row

2 posts, 0 answers
  1. Mark
    Mark avatar
    28 posts
    Member since:
    Jan 2014

    Posted 19 Oct 2017 Link to this post

    I need to format the background color of the Summary row based on its Aggregated (Sum) value compared to another value on the form.  If the values are equal, I want it blue, if they are not equal, I need it to be red.



                Dim ugRow As GridViewRowInfo
                Dim dAdditionTotal As Double = 0
                For Each ugRow In radGVBuildingAdditions.Rows
                    dAdditionTotal += ugRow.Cells("Addition_SQFT").Value
                Next

                With Me.radGVBuildingAdditions.SummaryRowsBottom
                    If .Count > 0 Then
                        For i As Integer = 0 To .Count - 1
                            .Remove(.Item(i))
                        Next i
                    End If
                End With

                If dAdditionTotal > 0 Then

                    Dim summary1 As New GridViewSummaryItem()
                    summary1.Name = "Addition_SqFt"
                    summary1.Aggregate = GridAggregateFunction.Sum
                    summary1.FormatString = "Addition Total SF {0:#,##0}"
                    Dim summaryRowItem As New GridViewSummaryRowItem()
                    summaryRowItem.Add(summary1)

                    Me.radGVBuildingAdditions.SummaryRowsBottom.Add(summaryRowItem)
                    Me.radGVBuildingAdditions.MasterTemplate.ShowTotals = True
                    Me.radGVBuildingAdditions.MasterView.SummaryRows(0).IsVisible = True
                    Dim dBuildingArea As Double = IIf(CLIB_MAPPS.Utilities.ConvertNULLtoDouble(Me.txtBldgNetSF.Text) > 0, CLIB_MAPPS.Utilities.ConvertNULLtoDouble(Me.txtBldgNetSF.Text), Me.txtBldgEstimatedSF.Text)
                    If dAdditionTotal = dBuildingArea Then  ' dBuildingArea from another control on the form
                        'MAKE SUMMARY ROW (NOT CELL, ENTIRE ROW) BLUE
                    Else
                        'MAKE SUMMARY ROW (NOT CELL, ENTIRE ROW) RED
                    End If


                Else
                    Me.radGVBuildingAdditions.MasterTemplate.ShowTotals = False
                End If



    I attempted to do it in the ViewCellFormatting event, but this requires parsing the number back out of the formatted text and is only working with the Cell in which I placed the total.



        Private Sub radGVBuildingAdditions_ViewCellFormatting(sender As Object, e As CellFormattingEventArgs) Handles radGVBuildingAdditions.ViewCellFormatting
            If TypeOf e.CellElement Is GridSummaryCellElement Then
                Dim dArea As Double = IIf(CLIB_MAPPS.Utilities.ConvertNULLtoDouble(Me.txtBldgNetSF.Text) > 0, CLIB_MAPPS.Utilities.ConvertNULLtoDouble(Me.txtBldgNetSF.Text), Me.txtBldgEstimatedSF.Text)
                If e.CellElement.ColumnInfo.Name = "Addition_SqFt" Then
                    If dArea = CInt(e.CellElement.Value) Then   'I HAVE TO PARSE THE TOTAL BACK OUT OF e.CellElement.Value
                        e.CellElement.BackColor = Color.DodgerBlue
                    Else
                        e.CellElement.BackColor = Color.Firebrick
                    End If
                End If
            End If
        End Sub



    is there a better way to do this?

  2. Hristo
    Admin
    Hristo avatar
    1520 posts

    Posted 20 Oct 2017 Link to this post

    Hello Mark,

    Thank you for writing.

    In order to accomplish your task, you will need to handle the ViewCellFormatting event and parse the value in order the make the validation. Since the event is firing for the summary cells and you need to change the color of the row, you will need to access the row element through the cell.

    Additionally, you will also need to cache the already formatted rows as the event will be raised for other cells within the same row and only reset the value for rows which are not formatted. If you will be formatting all of your summary rows then you can skip the caching and the reset:
    public partial class Form2 : Form
    {
        public Form2()
        {
            InitializeComponent();

            this.radGridView1.EnableFiltering = true;
            this.radGridView1.DataSource = GetData();
            this.radGridView1.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill;

            GridViewSummaryRowItem summaryRowItemSum = new GridViewSummaryRowItem();
            summaryRowItemSum.Add(new GridViewSummaryItem("Id", "{0:F0}", GridAggregateFunction.Sum));
            this.radGridView1.SummaryRowsBottom.Add(summaryRowItemSum);

            summaryRowItemSum = new GridViewSummaryRowItem();
            summaryRowItemSum.Add(new GridViewSummaryItem("Value", "{0:F0}", GridAggregateFunction.Avg));
            this.radGridView1.SummaryRowsBottom.Add(summaryRowItemSum);

            this.radGridView1.ViewCellFormatting += RadGridView1_ViewCellFormatting;
        }

        HashSet<GridViewRowInfo> rows = new HashSet<GridViewRowInfo>();
        private void RadGridView1_ViewCellFormatting(object sender, CellFormattingEventArgs e)
        {
            GridSummaryCellElement summaryCell = e.CellElement as GridSummaryCellElement;
            if (summaryCell == null)
                return;


            int value = -1;
            if (!string.IsNullOrEmpty(summaryCell.Text) && int.TryParse(summaryCell.Text, out value) && value < 100)
            {
                rows.Add(summaryCell.RowInfo);
                summaryCell.RowElement.DrawFill = true;
                summaryCell.RowElement.GradientStyle = Telerik.WinControls.GradientStyles.Solid;
                summaryCell.RowElement.BackColor = Color.LightBlue;
            }
            else if(!rows.Contains(summaryCell.RowInfo))
            {
                summaryCell.RowElement.ResetValue(LightVisualElement.DrawFillProperty, Telerik.WinControls.ValueResetFlags.Local);
                summaryCell.RowElement.ResetValue(LightVisualElement.GradientStyleProperty, Telerik.WinControls.ValueResetFlags.Local);
                summaryCell.RowElement.ResetValue(LightVisualElement.BackColorProperty, Telerik.WinControls.ValueResetFlags.Local);
            }
        }

        private object GetData()
        {
            DataTable dt = new DataTable();
            dt.Columns.Add("Id", typeof(int));
            dt.Columns.Add("Name", typeof(string));
            dt.Columns.Add("Date", typeof(DateTime));
            dt.Columns.Add("Bool", typeof(bool));
            dt.Columns.Add("Value", typeof(int));

            for (int i = 1; i < 10; i++)
            {
                dt.Rows.Add(i, "Name " + i, DateTime.Now.AddDays(i), i % 2 == 0, Math.Truncate(Convert.ToDouble(DateTime.Now.Millisecond / i)));
            }

            return dt;
        }
    }

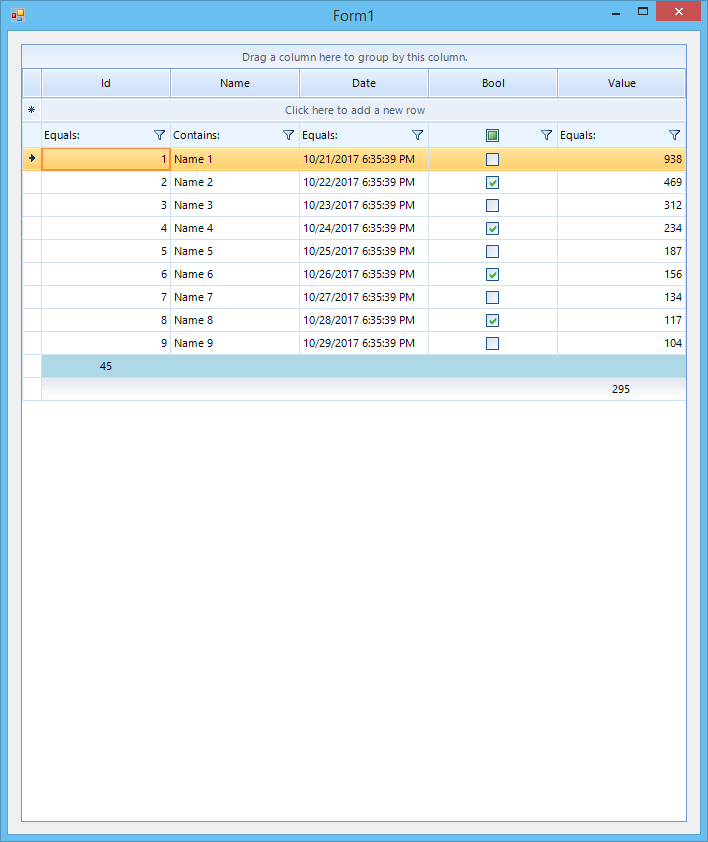

    I am also attaching a screenshot showing the result on my end.

    I hope this helps. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo
