Combination of ScatterSeries and arbitrary area

8 posts, 0 answers
  1. Valery
    Valery avatar
    65 posts
    Member since:
    May 2011

    Posted 26 Jun 2019 Link to this post

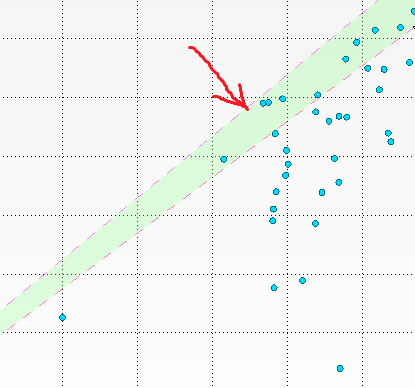

    I need a graph where a ScatterSeries is drawn and also some arbitrary area is drawn (see figure). How to do it?
  2.
  3. Nadya
    Admin
    Nadya avatar
    483 posts

    Posted 27 Jun 2019 Link to this post

    Hello Valery,

    RadChartView provides different type of annotations. Annotations are visual elements that can be used to highlight certain areas on the plot area and denote significant values. You can have a look at the online documentation for further information in order to determine whether it would suit your specific scenario:
    https://docs.telerik.com/devtools/winforms/controls/chartview/features/annotations/plot-band
    https://docs.telerik.com/devtools/winforms/controls/chartview/features/annotations/marked-zone

    Another way I can suggest is to use custom rendering. Please refer to the following help article which demonstrates how to plug any custom implementation of chart renderer: https://docs.telerik.com/devtools/winforms/controls/chartview/customization/custom-rendering.html

    I hope this information helps.

    Regards,
    Nadya
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  5. Valery
    Valery avatar
    65 posts
    Member since:
    May 2011

    Posted 28 Jun 2019 in reply to Nadya Link to this post

    You misunderstood the problem. Annotation is a rectangle, but I need an arbitrary region.
  7. Nadya
    Admin
    Nadya avatar
    483 posts

    Posted 28 Jun 2019 Link to this post

    Hello, Valery

    I have prepared a sample project demonstrating how to draw a ScatterSeries and some arbitrary area in the RadChartView. Feel free to modify it in a way which suits your requirements best. The attached picture illustrates the achieved behavior.

    I hope this information helps. Should you have any other questions, I will be glad to help.

    Regards,
    Nadya
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  8.
  9. Valery
    Valery avatar
    65 posts
    Member since:
    May 2011

    Posted 28 Jun 2019 in reply to Nadya Link to this post

    Thank. But this approach to solving the simplest problem seems to me not very successful
  11. Nadya
    Admin
    Nadya avatar
    483 posts

    Posted 01 Jul 2019 Link to this post

    Hello Valery,

    I am sorry to hear that the suggested solution is not applicable for your case. Actually I used ScatterAreaSeries and add four arbitrary points which mark also some arbitrary area. Am I missing something? Could you please send more information or get back to me with a sample project so I can investigate the precise case? Thank you in advance for your cooperation.

    I am looking forward to your reply.

    Regards,
    Nadya
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  13. Valery
    Valery avatar
    65 posts
    Member since:
    May 2011

    Posted 08 Jul 2019 in reply to Nadya Link to this post

    You again did not understand me. I did not write that your solution can not be used.

    Adding arbitrary areas to a graph is a frequently occurring task. For example, such areas are easily added to MSChart using SeriesChartType.Range. Why is this feature missing in your components?

  14.
  15. Nadya
    Admin
    Nadya avatar
    483 posts

    Posted 10 Jul 2019 Link to this post

    Hello Valery,

    Currently, we haven't had similar requests for the RadChartView. After discussion with the team, we approved this as a feature request. You can track its progress, subscribe to status changes and add your comment to it here. I have also updated your Telerik Points.

    Should you have any other questions, do not hesitate to ask.

    Regards,
    Nadya
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
