Column width glitch

3 posts, 1 answers
  1. Dominik
    Dominik avatar
    82 posts
    Member since:
    Dec 2012

    Posted 21 Jun 2013 Link to this post

    Version: 2013.2.612.20
    I noticed a strange behavior when trying to change the column width.
    Just copy and paste the code below to get the same environment.

    Hold the line between columns and move the cursor to the left a little. The first column will reduce its width inappropriately. The cursor remains in the correct position.

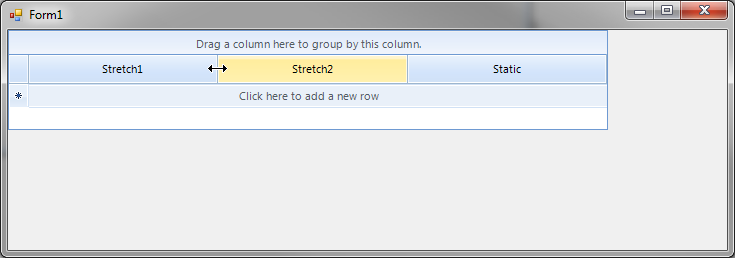

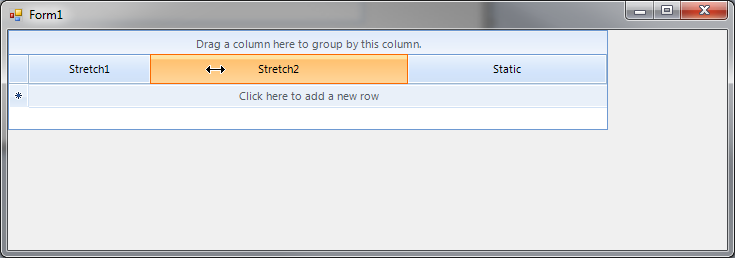

    The result can be seen in the attached files before.png and after.png.

    private void Form1_Load(object sender, EventArgs e)
    {
     GridViewTextBoxColumn col1 = new GridViewTextBoxColumn();
     col1.HeaderText = "Stretch1";
        col1.MinWidth = 100;
        col1.Width = 200;

        GridViewTextBoxColumn col2 = new GridViewTextBoxColumn();
        col2.HeaderText = "Stretch2";
        col2.MinWidth = 100;
        col2.Width = 200;

        GridViewTextBoxColumn col3 = new GridViewTextBoxColumn();
        col3.HeaderText = "Static";
        col3.MaxWidth = 200;
        col3.MinWidth = 200;
        col3.Width = 200;

     Telerik.WinControls.UI.RadGridView grid = new RadGridView();
     grid.Location = new Point(0, 0);
     grid.Size = new System.Drawing.Size(600, 100);
        grid.MasterTemplate.AutoSizeColumnsMode = GridViewAutoSizeColumnsMode.Fill;

        grid.MasterTemplate.Columns.AddRange(new GridViewDataColumn[] { col1, col2, col3});

        Controls.Add(grid);
    }
  2.
  3. Answer
    George
    Admin
    George avatar
    500 posts

    Posted 25 Jun 2013 Link to this post

    Hello Dominik,

    Thank you for writing.

    I have reviewed your case and was able to reproduce the issue. In this case when you set min and max width of the columns before actually adding the grid to the form it can not properly calculate the columns sizes. You should set the min and max width after you have added the grid, like this:
    Controls.Add(grid);
    col1.MinWidth = 100;
    col2.MinWidth = 100;
    col3.MaxWidth = 200;
    col3.MinWidth = 200;

    I hope this helps.

    Regards,
    George
    Telerik
    RadChart for WinForms is obsolete. Now what?
  5. Dominik
    Dominik avatar
    82 posts
    Member since:
    Dec 2012

    Posted 07 Aug 2013 Link to this post

    Works like a charm!
    Thanks for your help.
