ColorDialog not on top of Main Form

1 Answer 150 Views
ColorBox ColorDialog
Mark
Top achievements
Rank 3
Iron
Iron
Iron
Mark asked on 05 Jul 2023, 01:11 PM
Hi,

I am trying to use the radColorDialog but its not showing on top of my main form.

The main form is set to TopMost to ensure its at the top (the app has other forms open)

From the main form I am calling:
private void button1_Click(object sender, EventArgs e)
        {
            this.TopMost = true;
            this.BringToFront();

            radColorDialog1.Reset();

            if (radColorDialog1.ShowDialog(this) == DialogResult.OK)
            {

            }

        }

This is winforms .net7 I am only using this one Telerik control UI.for winforms... (2023.2.606)

I would expect the dialog to above the main form.

I tried the colourBox and it has the same issue.

1 Answer, 1 is accepted

Sort by
1
Accepted
Dinko | Tech Support Engineer
Telerik team
answered on 06 Jul 2023, 12:15 PM

Hi Mark,

I have used your code snippet to test your case but seems that I will need more information on how the forms are shown in your scenario. My test so far shows that the RadColorDialog is open at the top. Can you check the attached project and let me know what I am missing from your code?

Regards,
Dinko | Tech Support Engineer
Progress Telerik

Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.

Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 06 Jul 2023, 01:52 PM

Hi Dinko,

Thanks for your response on this.

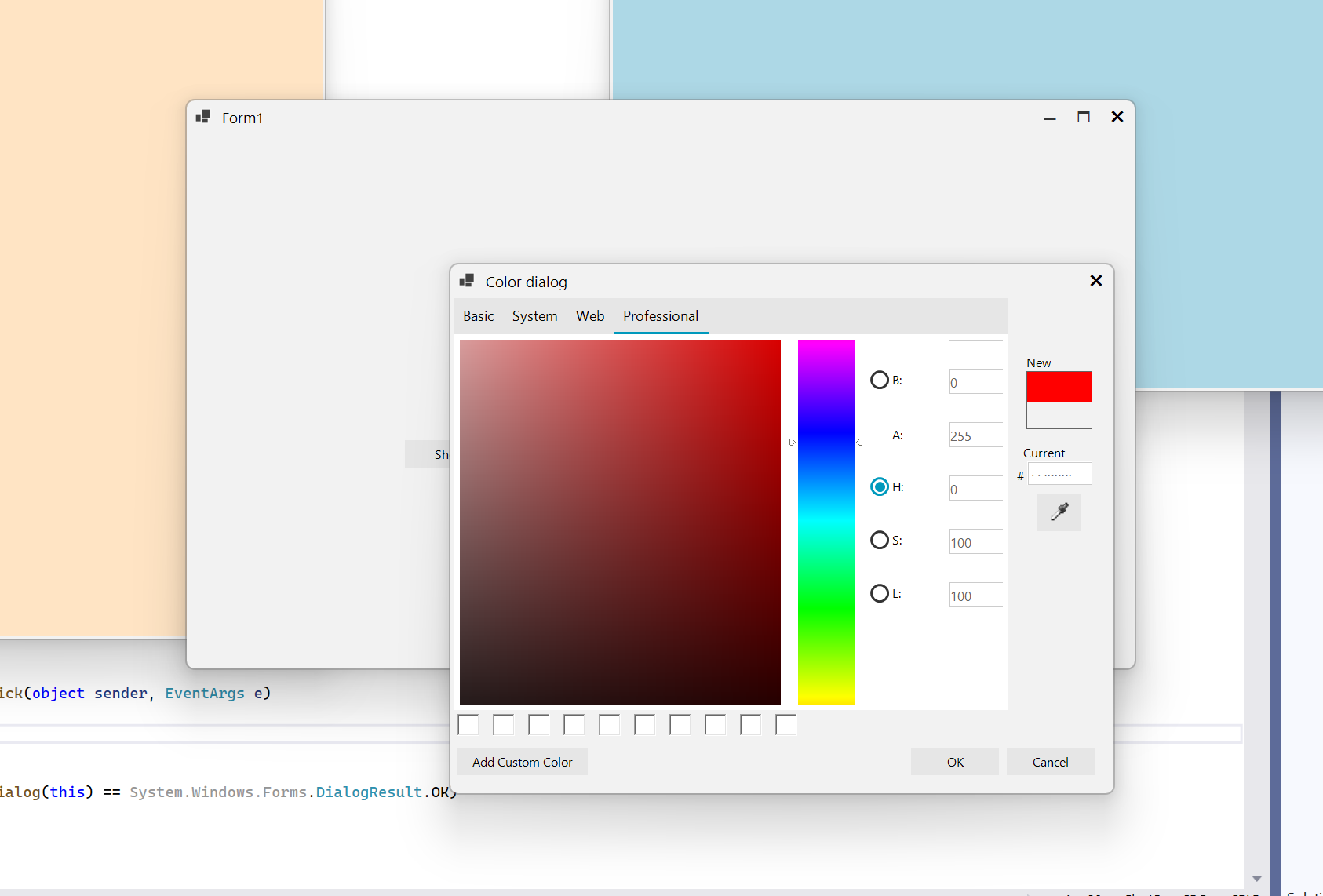

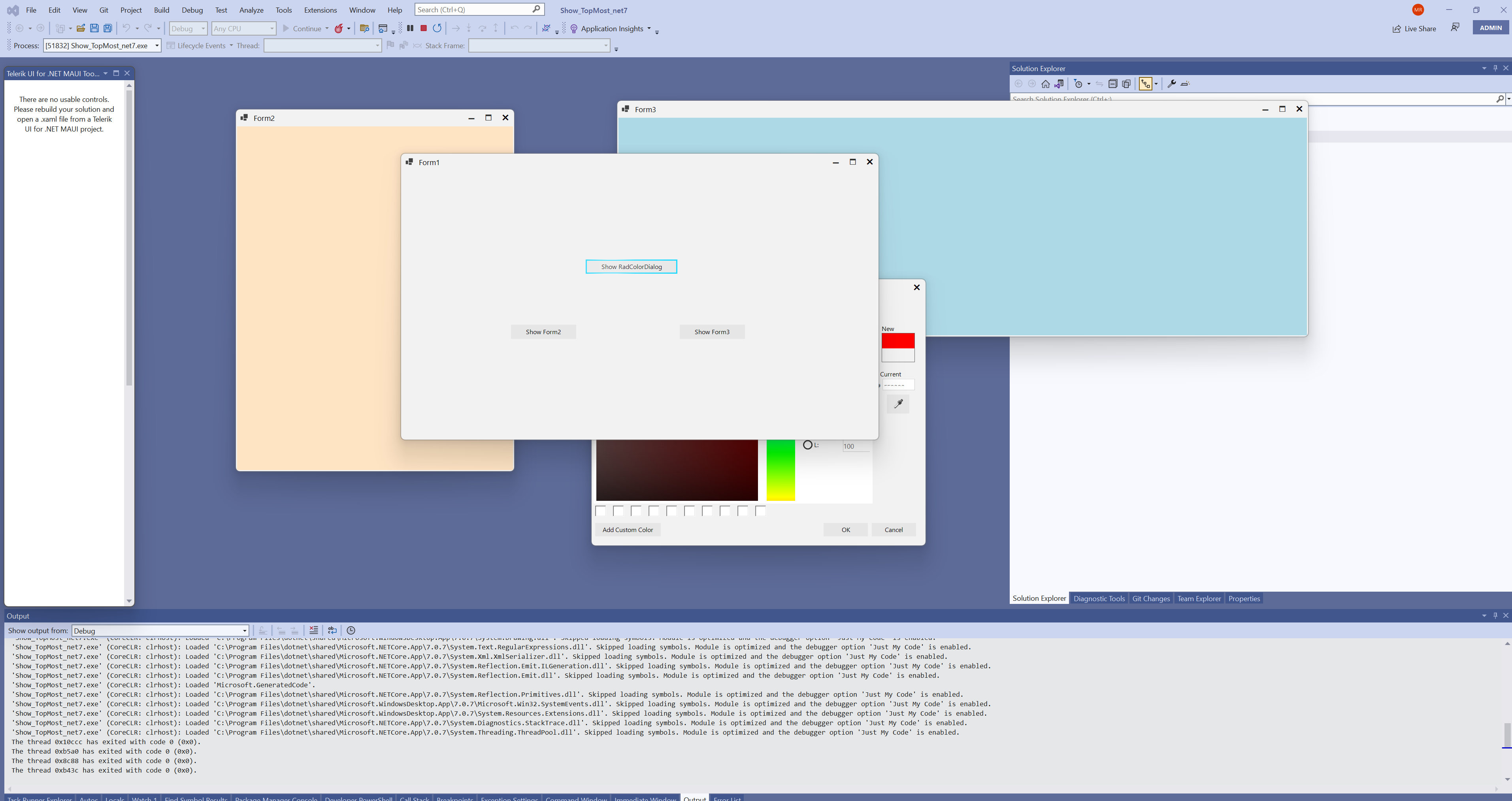

I thought I might try use your example to see if I can replicate it, and I found the same issue straight away..



I get the same issue restarting Visual Studio at 100% scaling

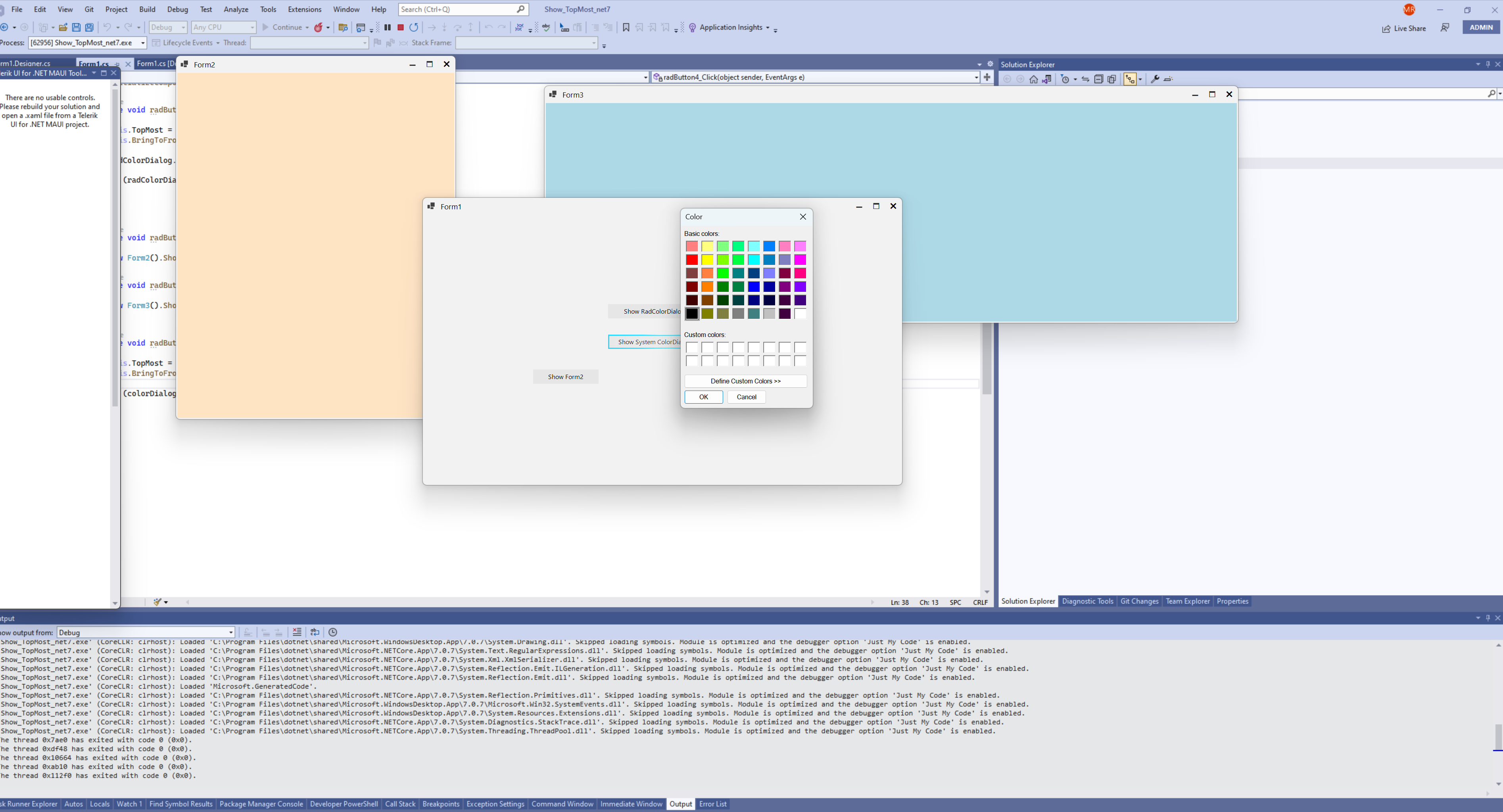

The system ColorDialog works as expected


More info:

Is there any other info you might need from me?

Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 06 Jul 2023, 02:18 PM | edited

Some additional info..

The forms in my application are all set to TopMost, including the main form, but its on top and the dialog is not on top.

In your example, if I remove the line
this.TopMost = true;
Then it works?

Going back to my own application,

If I temporarily set all the forms
TopMost = false
Then bring the main form to the front, the Dialog is working and is on top.

I am not sure why TopMost is not working on the RadColorPicker (and on my mahcine and not yours), it may be that the TopMost is overriding the Dialog form in this instance? maybe that should be set to TopMost, or have a setting on Dialog properties to set it?


Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 06 Jul 2023, 03:10 PM | edited

It seems I can work with the Color Dialog as long as I dont use TopMost or set these to false when I need the Dialog, but it seems like I should not be doing this.

Having played with this control...

I found 2 more issues:

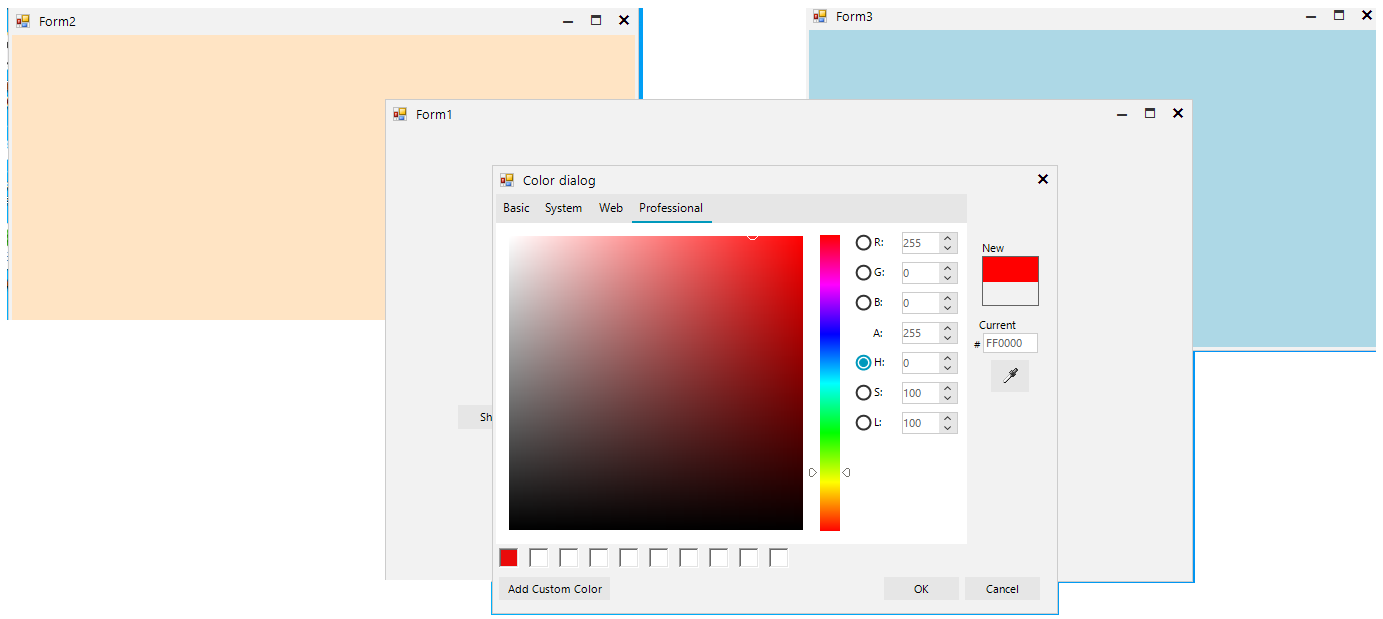

1) The scaling is all wrong withing the Dialog, ie I cannot see all the RGB values (see screen shot below)

I have 2 x 4K monitors at 150% and my laptop screen at 150%, the dialog should cater for this.

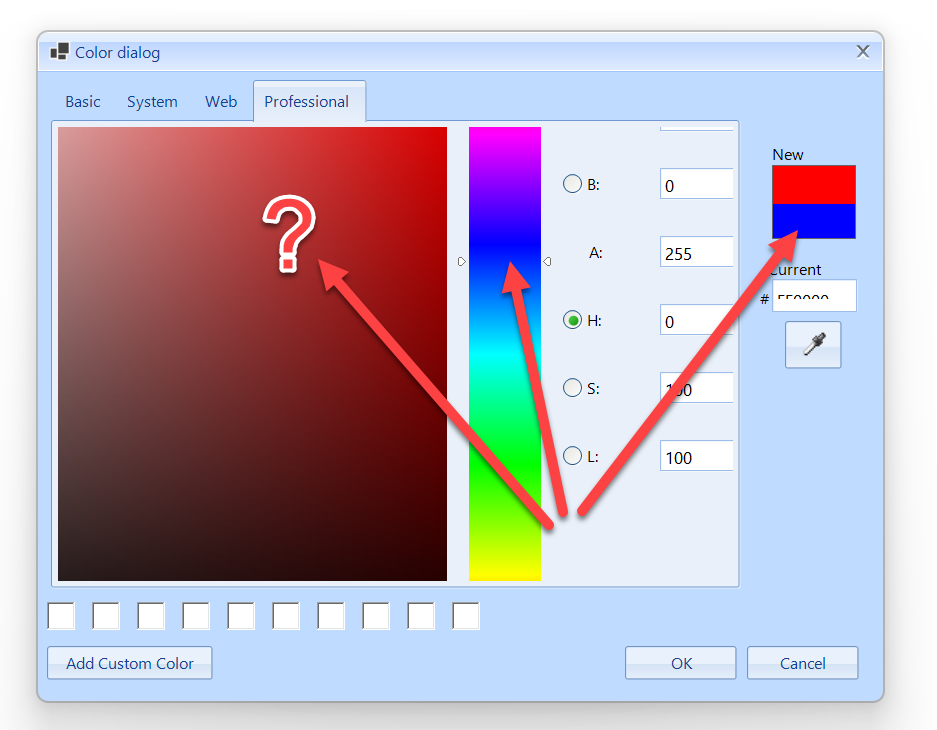

2) When setting the OldValue, the colour is not being set correctly. Old COlour is Blue

Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 07 Jul 2023, 08:34 AM

re OldValue,

If I set the old Colour and SelectedColour this works..

Feedback: I assumed that setting the old colour without a SelectedColour would use that as the default colour, subjective but its makes sense to me.
Dinko | Tech Support Engineer
Telerik team
commented on 07 Jul 2023, 11:18 AM

Thank you for the provided images.

For the TopMost property: I have doubled check my project and you are right the RadColorDialog is placed under the form if the form is TopMost. It seems that I have overlooked it at first. It took me some time to investigate why this is happening. It turns on it is not directly related to our controls. You mentioned that you are using .Net7. I have tested it with .NetFramework 4.8 and this behavior is not observed. Our RadColorDialogs derives from MS CommonDialog which seems to be the problem. I have created a simple class that derives from this one and the dialog is not on top.

public partial class Form1 : Form
{
    public Form1()
    {
        InitializeComponent();
        TopMost = true;
    }

    private void button1_Click(object sender, EventArgs e)
    {
        new MyCommonDialog().ShowDialog();
    }
}
public class MyCommonDialog : CommonDialog
{
    private Form myForm = new Form();
    public override void Reset()
    {
    }

    protected override bool RunDialog(nint hwndOwner)
    {
        return ((Form)myForm).ShowDialog(NativeWindow.FromHandle(hwndOwner)) == DialogResult.OK;
    }
}

This behavior is not directly related to our controls, but to the MS CommonDialog which the RadColorDialog derives from. To workaround this behavior, you can set the TopMost property of the RadForm inside the RadColorDialog.

private void radButton1_Click_1(object sender, EventArgs e)
{
    (radColorDialog.ColorDialogForm as RadForm).TopMost= true;
    radColorDialog.ColorDialogForm.OldColor = Color.Bisque;
    radColorDialog.ShowDialog();
}

As for the other questions, you are right the RadColorDialog elements location is messed up when the monitor that main form where the applications start has a higher DPI than 100%. I have searched our backlog and found that this behavior is already logged. You can follow the item to receive status changes so that you can be aware of its progress.  I have added your scenario to the feedback and increased its priority so that our team could consider adding this to their planning.

Regarding the OldColor property. Upon testing this, the property is set correctly. Can you share how you are setting this property?

Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 11 Jul 2023, 08:32 AM

Hi,

ok thanks for your replies.

For the TopMost issue, I can get around that.

The OldValue is ok, it makese sense now on how that works, I can set the SelectedValue to pick the last one anyway.

Given the scaling issue, we cannot use the control until that is fixed, hopeully this is fixed soon

Dinko | Tech Support Engineer
Telerik team
commented on 12 Jul 2023, 08:21 AM

I am sorry to hear that this behavior is stopping you from using the control. I have already forwarded this behavior to our development team and raised the priority of the item. When the feedback item is planned for fixing, we will update the status of the item so that you can be notified.

In the meantime, if you have any other questions, feel free to open a new thread with your questions and we will be happy to help.

Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 12 Jul 2023, 09:27 AM

I have a small free app that I built specifically to replace an existing all that I paid-for app that doesnt support monitors of different scales, so it wouldnt look good if all the components didnt work properly at different scales.

The app selects html colours from any screen and want to use the Telerik Colour picker to preselect colour palettes.
https://apps.microsoft.com/store/detail/colour-picker-app/9NQ8FV9DFQ4V

I will check back for any updates.


Thanks for your help.
Dinko | Tech Support Engineer
Telerik team
commented on 12 Jul 2023, 12:03 PM

Thank you for sharing your application. You are right that supporting different scaling is an important functionality for user-friendly applications. I will let you know when this behavior is added to our development team planning for fixing.
Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 08 Dec 2023, 09:32 AM

Is there a fix for this?
Dinko | Tech Support Engineer
Telerik team
commented on 08 Dec 2023, 02:56 PM

Upon checking the feedback item, which I forgot to share in my previous post, accept my apologies for that, is currently not planned for fixing. If you haven't done it already, you can subscribe to the feedback item so that you will be notified of its status change.

In the meantime, if you have any other questions, feel free to open a new thread, and will be happy to help.

Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 08 Dec 2023, 03:00 PM

Sorry I was referring to this issue:

"You are right that supporting different scaling is an important functionality for user-friendly applications. I will let you know when this behavior is added to our development team planning for fixing."

The component is useless if the monitor is not set to 100% scaling?

This is a fundamental bug.

Mark
Top achievements
Rank 3
Iron
Iron
Iron
commented on 08 Dec 2023, 03:02 PM

I am not sure that disabling scaling is a valid fix, but I will try it.
Nadya | Tech Support Engineer
Telerik team
commented on 13 Dec 2023, 12:00 PM

Hello, Mark,

I understand the importance of this issue and that it affects your application. The feedback item has already been marked with increased priority in our internal issue tracking system. However, I can't give you an exact time frame when a fix would be introduced. If disabling the scaling is a valid approach for you feel free to disable it.

Please excuse us for the inconvenience caused.
