ChartView Line Chart Label position to Offset in to the left

2 Answers 251 Views
ChartView
This is a migrated thread and some comments may be shown as answers.
Dominic
Top achievements
Rank 2
Iron
Iron
Iron
Dominic asked on 20 May 2020, 07:13 AM

How for I offset ChartView Line Chart Label position more to the left of the datapoint ?

Meaning how do I move the label further left of the datapoint ?



2 Answers, 1 is accepted

Sort by
0
Nadya | Tech Support Engineer
Telerik team
answered on 21 May 2020, 01:58 PM

Hello Dominic,

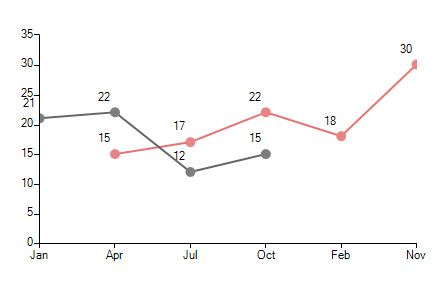

In order to achieve this, you can subscribe to the LabelFormatting event and in the handler manually move the label to the left. This can be done by setting a proper value to the PointLabelElement.PosittionOffset property. Please refer to the following example that uses LineSeries to plot the data points:

 public RadForm1()
 {
     InitializeComponent();

     LineSeries lineSeries = new LineSeries();
     lineSeries.DataPoints.Add(new CategoricalDataPoint(21, "Jan"));
     lineSeries.DataPoints.Add(new CategoricalDataPoint(22, "Apr"));
     lineSeries.DataPoints.Add(new CategoricalDataPoint(12, "Jul"));
     lineSeries.DataPoints.Add(new CategoricalDataPoint(15, "Oct"));
     this.radChartView1.Series.Add(lineSeries);
     LineSeries lineSeries2 = new LineSeries();
     lineSeries2.DataPoints.Add(new CategoricalDataPoint(18, "Feb"));
     lineSeries2.DataPoints.Add(new CategoricalDataPoint(15, "Apr"));
     lineSeries2.DataPoints.Add(new CategoricalDataPoint(17, "Jul"));
     lineSeries2.DataPoints.Add(new CategoricalDataPoint(22, "Oct"));
     lineSeries2.DataPoints.Add(new CategoricalDataPoint(30, "Nov"));
     this.radChartView1.Series.Add(lineSeries2);
     lineSeries.ShowLabels = true;
     lineSeries2.ShowLabels = true;

     this.radChartView1.LabelFormatting += this.RadChartView1_LabelFormatting;
 }

 private void RadChartView1_LabelFormatting(object sender, ChartViewLabelFormattingEventArgs e)
 {
     PointLabelElement pointLabel = e.LabelElement as PointLabelElement;
     if (pointLabel != null)
     {
         pointLabel.PositionOffset = new PointF(-10, 0);
         pointLabel.DataPointElement.PointSize = new SizeF(10, 10);
     }
 }

I hope this helps. Should you have other questions do not hesitate to ask.

Regards,
Nadya
Progress Telerik
