Chart Issue After Upgrade to R3 2018

2 posts, 0 answers
  1. Benjamin
    Benjamin avatar
    13 posts
    Member since:
    Apr 2011

    Posted 04 Oct 2018 Link to this post

    Hi,

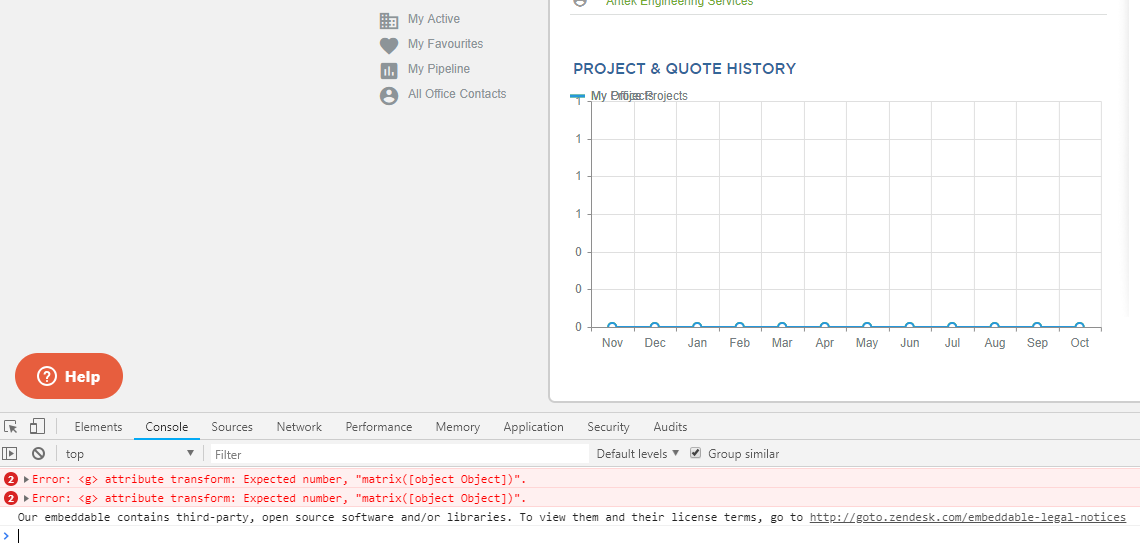

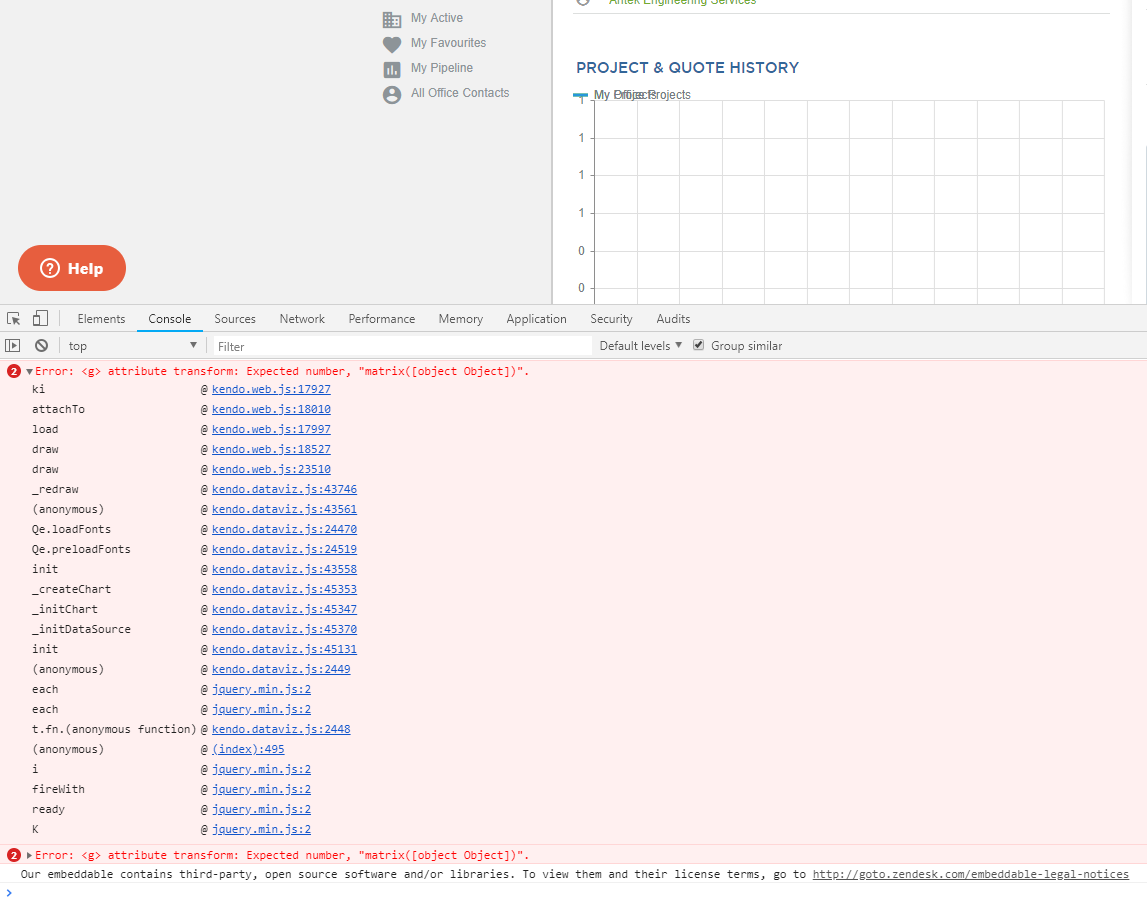

    I have issue with chart after upgrade kendo libraries to R3 2018 (ver. 2018.3.911.545). Here is my code snippet:

    @(Html.Kendo().Chart(Model.ListChartOfProjectHistory)
    .Name("MyProjectHistoryChart")
    .Series(series =>
    {
    series.Line(s => s.QuoteValue).Color("#8ACD16").Name("My Projects")
    .Tooltip(true);
    series.Line(s => s.OfficeQuoteValue).Color("#2698DB").Name("My Office Projects")
    .Tooltip(true);
    })
    .Legend(legend => legend
    .Position(ChartLegendPosition.Bottom)
    )
    .ValueAxis(axis => axis.Numeric().Labels(labels => labels.Format("{0:N0}")))
    .CategoryAxis(axis => axis
    .Categories(c => c.MonthValue)
    )
    .Tooltip(tooltip => tooltip.Visible(true).Format("C2"))
    .HtmlAttributes(new { style = "border-style:none;height:300px" })
    .Events(events => events.LegendItemClick("refreshHistory"))
    )



    and this is my layout with references:

    <!DOCTYPE html>
    <html>
    <head>
        <title>@ViewBag.Title</title>
        <meta name="SKYPE_TOOLBAR" content="SKYPE_TOOLBAR_PARSER_COMPATIBLE" />
        <link rel="shortcut icon" href="@Url.Content("~/Content/images/favicon.gif")" type="image/x-icon" />
        <link href="@Url.Content("~/Content/Site.css?v=123")" rel="stylesheet" type="text/css" />
        <link href="@Url.Content("~/Content/css/global.css?v=123")" rel="stylesheet" type="text/css" />
        <link href="@Url.Content("~/Content/kendo.dataviz.min.css?ver=1.1")" rel="stylesheet" type="text/css" />
        <link href="@Url.Content("~/Content/kendo.common.min.css?ver=1.1")" rel="stylesheet" />
        <link href="@Url.Content("~/Content/kendo.default.min.css?ver=1.1")" rel="stylesheet" />
        <script src="@Url.Content("~/Scripts/jquery.min.js")" type="text/javascript"></script>
        <script src="@Url.Content("~/Scripts/kendo.dataviz.min.js?ver=1.1")"></script>
        <script src="@Url.Content("~/Scripts/kendo.web.min.js?ver=1.1")" type="text/javascript"></script>
        <script src="@Url.Content("~/Scripts/kendo.aspnetmvc.min.js?ver=1.1")" type="text/javascript"></script>
        <script src="@Url.Content("~/Scripts/corners.js")" type="text/javascript"></script>
        <script src="@Url.Content("~/Scripts/menu.js")" type="text/javascript"></script>
        <script src="@Url.Content("~/Scripts/jquery.validate.min.js")" type="text/javascript"></script>
        <script src="@Url.Content("~/Scripts/jquery.validate.unobtrusive.min.js")" type="text/javascript"></script>



    I also already updated it with telerik.ui.for.aspnetmvc.hotfix.2018.3.911.commercial libraries but still getting the same error. Fyi my project use MVC 5 and bootstrap 4.

    Any thoughts on how to fix this greatly appreciated.

    Thanks.



  2. Tsvetina
    Admin
    Tsvetina avatar
    2481 posts

    Posted 08 Oct 2018 Link to this post

    Hi Benjamin,

    We do not have an issue logged about such an error in the latest version, so we would need to do some troubleshooting to see what causes the issue.

    My first guess would be conflicting scripts. Could you try removing the references to kendo.web.min.js and kendo.dataviz.min.js  and putting kendo.all.min.js in their place? This is to confirm that there is no conflict between the two sub-libraries. As noted in the documentation about the Kendo UI combined scripts, only one of the combined JavaScript files can be included at a time, because each of them includes the Kendo UI framework. To simultaneously use widgets from different Kendo UI suites, use the kendo.all.min.js or build a custom script.


    Regards,
    Tsvetina
    Progress Telerik
