Change theme border color and Ripple effect

7 posts, 0 answers
  1. Tiago
    Tiago avatar
    14 posts
    Member since:
    Jun 2015

    Posted 03 May Link to this post

    I'm currently using the Fluent theme, but I would like to remove the active border that draws on everything and disable the Ripple effect on buttons

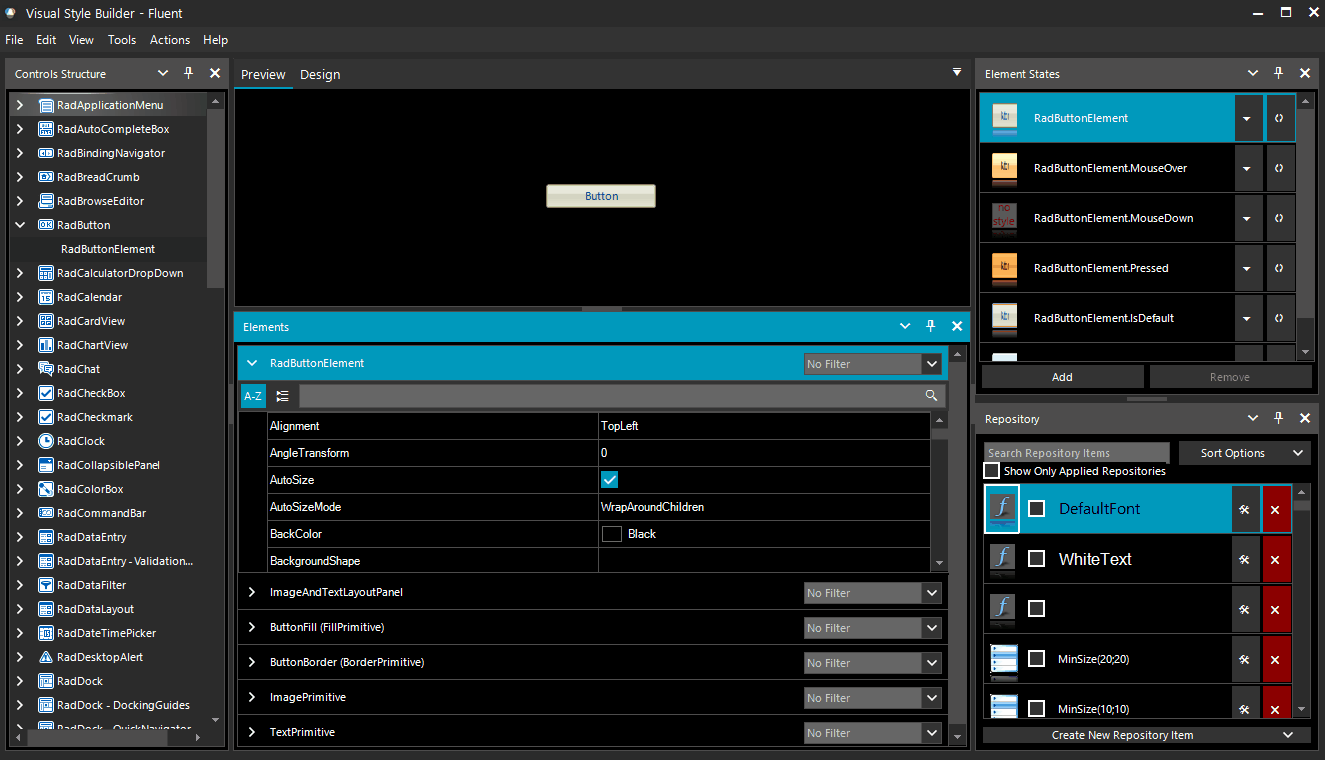

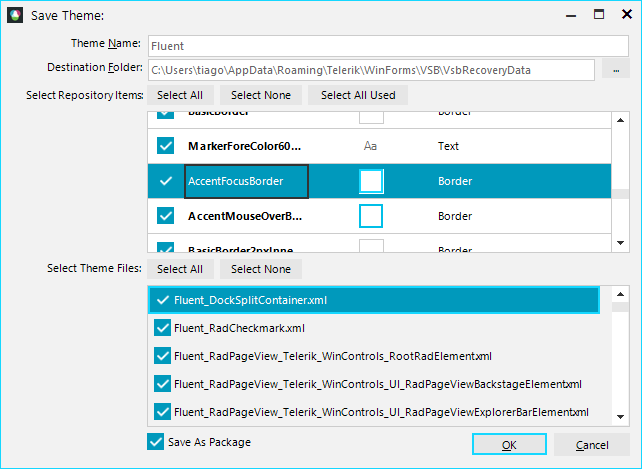

    I tryed to do that on Visual Style Builder, when I 'save as' I can see those options but I can't edit them, and I can't find those options anythere else
  2. Nadya
    Admin
    Nadya avatar
    399 posts

    Posted 06 May Link to this post

    Hello Tiago,

    According to the provided information, it seems that you would like to modify the existing Fluent theme via the Visual Style Builder.

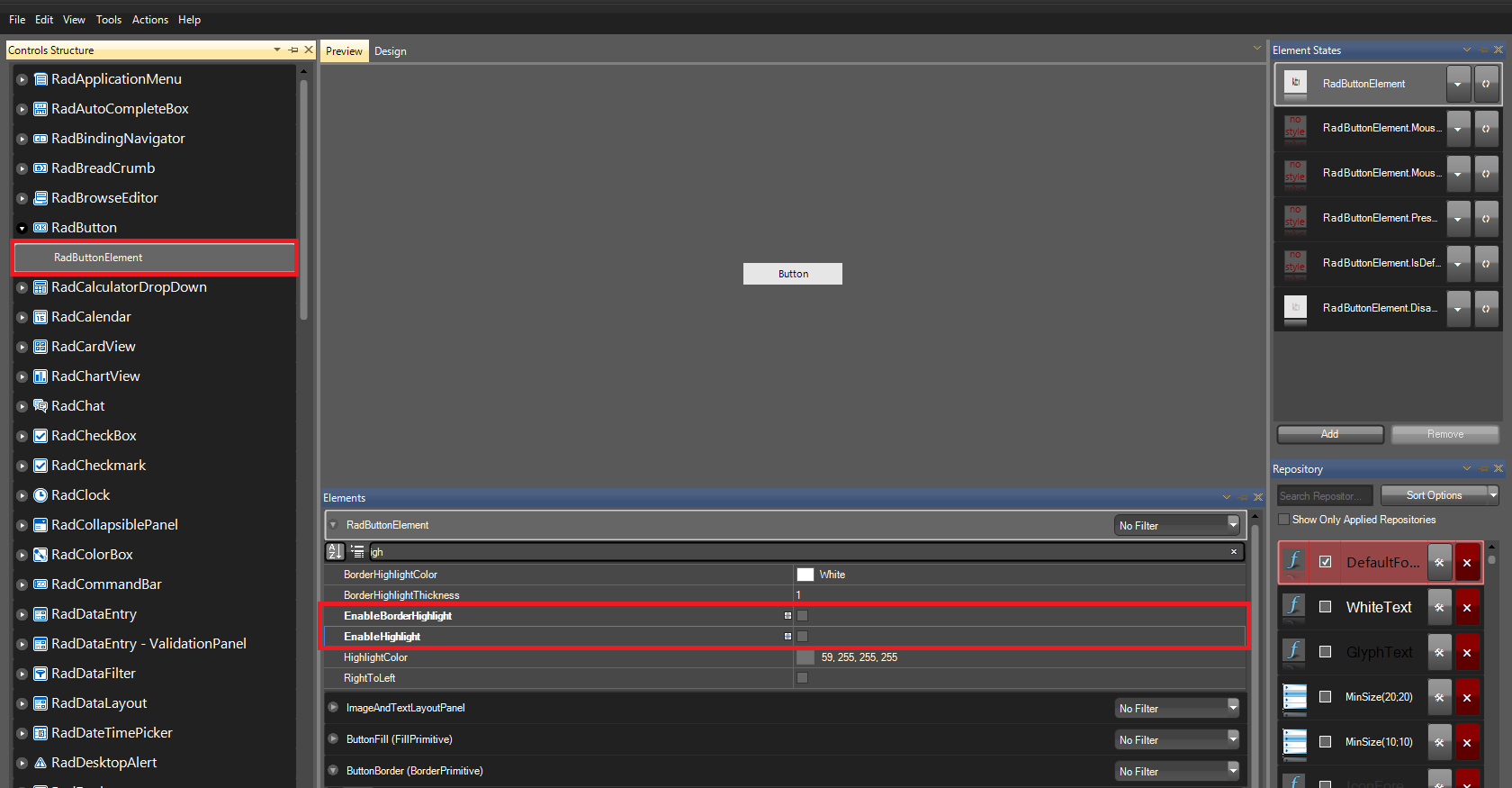

    In the Fluent theme, this ripple effect is introduced by EnableHighlight and EnableBorderHighlight properties and they are set on element level, not global. This means that if you want to disable this highlighting effect you should go through all the elements that you want to modify and disable it as shown in the attached picture.

    After modifying the theme you can save it and apply it in your application. Plese refer to the following article: https://docs.telerik.com/devtools/winforms/styling-and-appearance/using-custom-themes

    I hope this information is useful. If you have other questions please let me know.

    Regards,
    Nadya
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  3. Tiago
    Tiago avatar
    14 posts
    Member since:
    Jun 2015

    Posted 06 May in reply to Nadya Link to this post

    Hi Nadya, thanks for the response

    In Visual Style Builder that option is unchecked by default in fluent theme, I check/unchecked it and the beaviour didn't change.

    About the active border color, I saw that Focus Border Animation option, I changed the value but the behaviour is still the same



    Did you try it? Am I doing something wrong?

  4. Nadya
    Admin
    Nadya avatar
    399 posts

    Posted 11 May Link to this post

    Hello Tiago,

    Note that different themes have different settings applied. In the Fluent theme, the EnableHighlight and EnableBorderHighlight properties control the ripple effect that you see. If you try to check/uncheck other properties they shouldn't reach the desired result. Another specific setting is that this effect is applied to an element level, which means that currently, you can not disable it globally. You need to go through all the elements that you would like to disable this and uncheck these two properties. I prepared a gif file for your reference.

    I hope this information helps. Please let me know if you need further assistance.

    Regards,
    Nadya
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  5. Tiago
    Tiago avatar
    14 posts
    Member since:
    Jun 2015

    Posted 13 May in reply to Nadya Link to this post

    Hi Nadya,

    Thanks! the buttons are great now, but I cant find where to remove the focus border on the RadTabbedForm
  6. Nadya
    Admin
    Nadya avatar
    399 posts

    Posted 18 May Link to this post

    Hello Tiago,

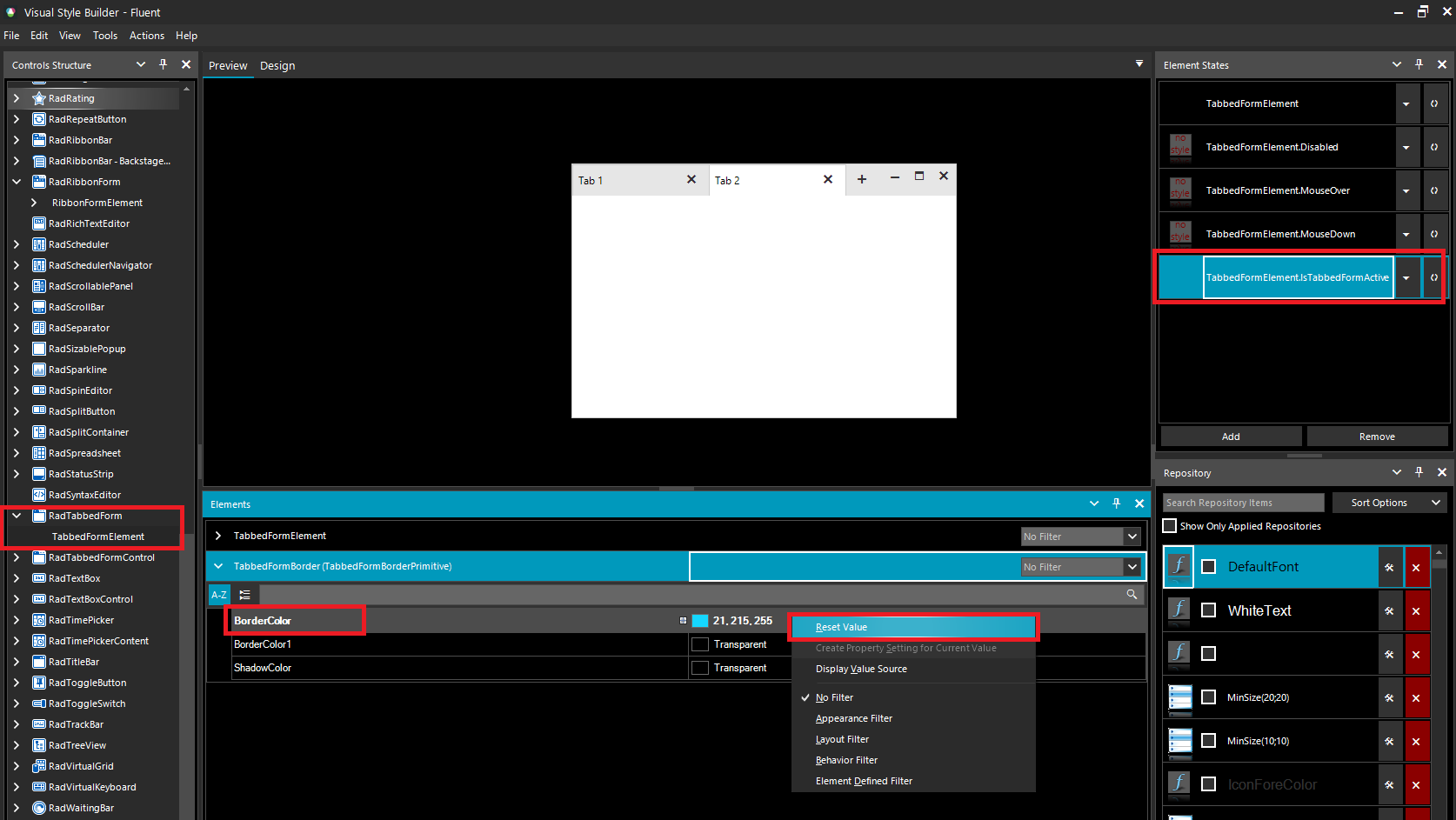

    In order to remove this border, you should choose the TabbedFormElement In the Visual Style Builder. Then go to the Element States section at the right and find the TabbedFormElement.IsTabbedFormActive state. You will see that the TabbedFormBorder has BackColor applied. You can reset it by right click on the BackColor field and choose "Reset value". Please refer to the attached picture that will be useful.

    I hope this information helps. Should you have other questions do not hesitate to ask.

    Regards,
    Nadya
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  7. Tiago
    Tiago avatar
    14 posts
    Member since:
    Jun 2015

    Posted 17 Jun in reply to Nadya Link to this post

    Hi Nadya,

    Perfect!
    Thank you so much for the help
