Change GroupPanel Text in UI for WinForms GridView

Vance Smith

38 posts

Member since:
Jun 2012

Posted 04 Jan 2013 Link to this post

Hi,

I would like to change the GroupPanel Text. Currently it says, "Drag a column here to group by that column.". I would like it to say something else.

Can someone please assist.

Thanks,

Vance

Princy

17421 posts

Member since:
Mar 2007

Posted 07 Jan 2013 Link to this post

Hi,

Try the following code snippet to achieve your scenario.

C#:

this.radGridView1.TableElement.GridViewElement.GroupPanelElement.Text = "some text";

Hope this helps.

Regards,
Princy.

Anton

Admin

167 posts

Posted 09 Jan 2013 Link to this post

Hello Vance,

Thank you Princy for provided help.

The provided code is correct. Just for your information, the GridViewElement can be accessed directly through the control as well:

this.radGridView1.GridViewElement.GroupPanelElement.Text = "Your Custom text 1";

Also, you need to handle the case when user clears the groups, because the grid will reset the text to the default one. This can be achieved by subscribing to the GroupByChanged event:

void radGridView1_GroupByChanged(object sender, GridViewCollectionChangedEventArgs e)

{

if (e.GridViewTemplate.GroupDescriptors.Count == 0)

{

this.radGridView1.GridViewElement.GroupPanelElement.Text = "Your Custom text 1";

}

This topic is also discussed in the following forum thread: http://www.telerik.com/community/forums/winforms/gridview/radgridlocalizationprovider-custom-groupingpaneldefaultmessage.aspx

I hope this helps.

All the best,
Anton
the Telerik team

Q3'12 SP1 of RadControls for WinForms is out now. See what's new.

Fariba

24 posts

Member since:
May 2014

Posted 21 Sep 2015 Link to this post

Hi
I want to change the height of GroupPanelElement by changing the height value in
this.radGridView1.GridViewElement.GroupPanelElement.Size = new Size(this.radGridView1.Width, 200);
nothing would be happened and value came back to 23 which is set for it as a default value.
What should I do?

Best regards,
Faqriba

Dess | Tech Support Engineer, Sr.

Admin

4120 posts

Posted 21 Sep 2015 Link to this post

Hello Faqriba,

Thank you for writing.

Instead of setting the Size property, you can set the MinSize property to increase the group panel's height:

this.radGridView1.GridViewElement.GroupPanelElement.MinSize = new Size(this.radGridView1.Width, 200);

I hope this information helps. Should you have further questions I would be glad to help.

Regards,
Dess
Telerik

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items

Fariba

24 posts

Member since:
May 2014

Posted 21 Sep 2015 in reply to Dess | Tech Support Engineer, Sr. Link to this post

Dear dess

yes It works

Thank You

Manoj

5 posts

Member since:
Jun 2018

Posted 14 Jun 2018 Link to this post

So this works.

DGVToolNotes.GridViewElement.GroupPanelElement.MinSize = new Size(DGVToolNotes.Width, 50);

But I can't seem to get this to work below.

this.DGVToolNotes.GridViewElement.GroupPanelElement.Text = "test this string";

        private void DGVToolNotes_GroupByChanged(object sender, GridViewCollectionChangedEventArgs e)
        {
            if (e.GridViewTemplate.GroupDescriptors.Count == 0)
            {
                this.DGVToolNotes.GridViewElement.GroupPanelElement.Text = "testing this shit";
            }
        }

Also, anyone know how to change the Font of this string?

MG

Dess | Tech Support Engineer, Sr.

Admin

4120 posts

Posted 15 Jun 2018 Link to this post

Hello, Manoj,

Note that by default the group panel will show the specified text only when no grouping is available. Once you group the grid, the text is hidden. I suppose that you set the GridViewElement.GroupPanelElement.Text property in the form's constructor. If you set it in the Load event, the desired text will be displayed. As to the font, it is necessary to set just the GroupPanelElement.Font property:

private void RadForm1_Load(object sender, EventArgs e)

{

this.radGridView1.GridViewElement.GroupPanelElement.Text = "test this string";

this.radGridView1.GridViewElement.GroupPanelElement.Font = new Font("Arial", 12f, FontStyle.Italic);

}

I hope this information helps. If you have any additional questions, please let me know.

Regards,
Dess
Progress Telerik

Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.

Manoj

5 posts

Member since:
Jun 2018

Posted 18 Jun 2018 in reply to Dess | Tech Support Engineer, Sr. Link to this post

HI Dess,

this worked half way. GroupPanelElement.Font worked, but the GroupPanelElement.Text didn't.

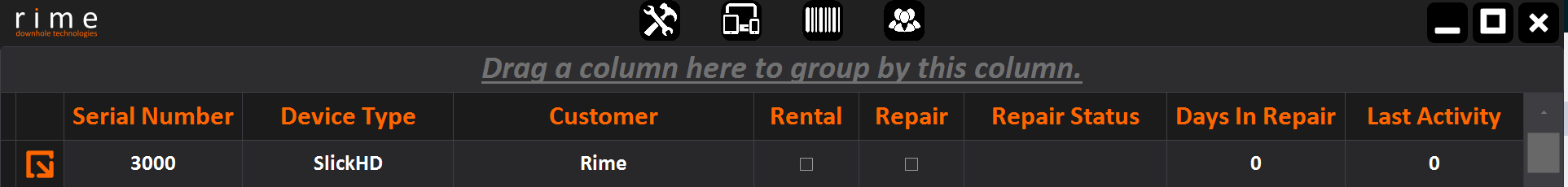

Strange. See screen cap attached.

private void newTablePanel_Load(object sender, EventArgs e)

{

this.myDataTable.GridViewElement.GroupPanelElement.Text = "test this string";

this.myDataTable.GridViewElement.GroupPanelElement.Font = new Font("Calibri", 30f, FontStyle.Italic | FontStyle.Bold | FontStyle.Underline);

}

MG


Dess | Tech Support Engineer, Sr.

Admin

4120 posts

Posted 19 Jun 2018 Link to this post

Hello, Manoj,

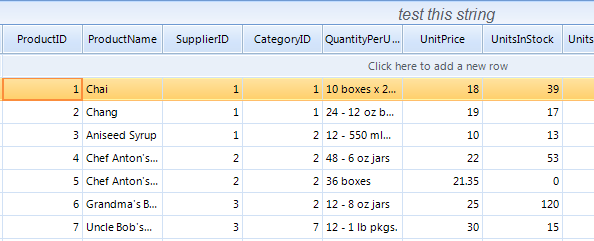

If you set the GroupPanelElement.Text property in the Form.Load event it is supposed to work as expected. I have attached my sample project for your reference. If you are still experiencing any further difficulties, feel free to modify the project in a way to reproduce the experienced issue and get back to me with it so I can investigate the precise case. Thank you in advance.

I hope this information helps. If you have any additional questions, please let me know.

Regards,
Dess
Progress Telerik

Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.

645640GridGroupPanel.zip
