CellFormatting and speed

11 Answers 361 Views

GridView

This is a migrated thread and some comments may be shown as answers.

Svein Thomas asked on 14 Dec 2010, 11:58 AM

Hi,

I have a grid that i have added a custom column containing a progress bar. This is done by adding the progressbar or updating the progressbar each time the CellFormatting event is fired. But it seems like this is done way to often?
In my opinion would i like to paint this the first time i load the row. Then I want to be able to update the progressbar in a row when the progressbar values have changed.
Now it updates this each time i click in a cell or change row. And it does not just happen to the row the i clicked in.. it fires for all visible rows in the grid.

How can i avoid this, how can i speed up the grid. NB the progressvalue function (my function) is slow as well, but fast enough if i was to set the progress value for a specific row.

Regards
Svein Thomas

11 Answers, 1 is accepted

answered on 14 Dec 2010, 01:24 PM

Ok. I cannot give you the exact data that i use, but I use a Linq datasource and some Stored procs to get the values. Thats why my progressbar function is a bit slow. I have tried to create an example that illustrates my grid speed.

using System.ComponentModel;

using System.Threading;

using System.Windows.Forms;

using Telerik.WinControls.UI;

namespace MySlowGrid

{

public class Form1 : Form

{

/// <summary>

/// Required designer variable.

/// </summary>

private System.ComponentModel.IContainer components = null;

/// <summary>

/// Clean up any resources being used.

/// </summary>

/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>

protected override void Dispose(bool disposing)

{

if (disposing && (components != null))

{

components.Dispose();

}

base.Dispose(disposing);

}

#region Windows Form Designer generated code

/// <summary>

/// Required method for Designer support - do not modify

/// the contents of this method with the code editor.

/// </summary>

private void InitializeComponent()

{

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn1 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn2 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn3 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn4 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

Telerik.WinControls.UI.GridViewTextBoxColumn gridViewTextBoxColumn5 = new Telerik.WinControls.UI.GridViewTextBoxColumn();

this.radGridView1 = new Telerik.WinControls.UI.RadGridView();

((System.ComponentModel.ISupportInitialize)(this.radGridView1)).BeginInit();

((System.ComponentModel.ISupportInitialize)(this.radGridView1.MasterTemplate)).BeginInit();

this.SuspendLayout();

//

// radGridView1

//

this.radGridView1.BackColor = System.Drawing.SystemColors.Control;

this.radGridView1.Cursor = System.Windows.Forms.Cursors.Default;

this.radGridView1.Dock = System.Windows.Forms.DockStyle.Fill;

this.radGridView1.Font = new System.Drawing.Font("Segoe UI", 8.25F);

this.radGridView1.ForeColor = System.Drawing.SystemColors.ControlText;

this.radGridView1.ImeMode = System.Windows.Forms.ImeMode.NoControl;

this.radGridView1.Location = new System.Drawing.Point(0, 0);

//

// radGridView1

//

gridViewTextBoxColumn1.FieldName = "A";

gridViewTextBoxColumn1.FormatInfo = new System.Globalization.CultureInfo("");

gridViewTextBoxColumn1.HeaderText = "column1";

gridViewTextBoxColumn1.Name = "column1";

gridViewTextBoxColumn1.Width = 76;

gridViewTextBoxColumn2.FieldName = "B";

gridViewTextBoxColumn2.FormatInfo = new System.Globalization.CultureInfo("");

gridViewTextBoxColumn2.HeaderText = "column2";

gridViewTextBoxColumn2.Name = "column2";

gridViewTextBoxColumn2.Width = 81;

gridViewTextBoxColumn3.FieldName = "C";

gridViewTextBoxColumn3.FormatInfo = new System.Globalization.CultureInfo("");

gridViewTextBoxColumn3.HeaderText = "column3";

gridViewTextBoxColumn3.Name = "column3";

gridViewTextBoxColumn3.Width = 82;

gridViewTextBoxColumn4.FieldName = "D";

gridViewTextBoxColumn4.FormatInfo = new System.Globalization.CultureInfo("");

gridViewTextBoxColumn4.HeaderText = "column4";

gridViewTextBoxColumn4.Name = "column4";

gridViewTextBoxColumn4.Width = 90;

gridViewTextBoxColumn5.FormatInfo = new System.Globalization.CultureInfo("");

gridViewTextBoxColumn5.HeaderText = "column5";

gridViewTextBoxColumn5.Name = "ProgressBar";

gridViewTextBoxColumn5.Width = 88;

this.radGridView1.MasterTemplate.Columns.AddRange(new Telerik.WinControls.UI.GridViewDataColumn[] {

gridViewTextBoxColumn1,

gridViewTextBoxColumn2,

gridViewTextBoxColumn3,

gridViewTextBoxColumn4,

gridViewTextBoxColumn5});

this.radGridView1.Name = "radGridView1";

this.radGridView1.Padding = new System.Windows.Forms.Padding(0, 0, 0, 1);

this.radGridView1.ReadOnly = true;

this.radGridView1.RightToLeft = System.Windows.Forms.RightToLeft.No;

//

this.radGridView1.RootElement.Padding = new System.Windows.Forms.Padding(0, 0, 0, 1);

this.radGridView1.ShowGroupPanel = false;

this.radGridView1.Size = new System.Drawing.Size(599, 416);

this.radGridView1.TabIndex = 0;

this.radGridView1.Text = "radGridView1";

//

// Form1

//

this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);

this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;

this.ClientSize = new System.Drawing.Size(599, 416);

this.Controls.Add(this.radGridView1);

this.Name = "Form1";

this.Text = "Form1";

((System.ComponentModel.ISupportInitialize)(this.radGridView1.MasterTemplate)).EndInit();

((System.ComponentModel.ISupportInitialize)(this.radGridView1)).EndInit();

this.ResumeLayout(false);

}

#endregion

private Telerik.WinControls.UI.RadGridView radGridView1;

public Form1()

{

InitializeComponent();

BindingList<MyData> list = new BindingList<MyData>(); ;

for (int i = 0; i <= 20; i++)

{

list.Add(new MyData(100, 40));

}

radGridView1.DataSource = list;

radGridView1.CellFormatting += new Telerik.WinControls.UI.CellFormattingEventHandler(radGridView1_CellFormatting);

}

void radGridView1_CellFormatting(object sender, Telerik.WinControls.UI.CellFormattingEventArgs e)

{

if (e.CellElement.ColumnInfo is GridViewDataColumn &&

((GridViewDataColumn)e.CellElement.ColumnInfo).Name == "ProgressBar")

{

MyData a = ((MyData)e.CellElement.RowInfo.DataBoundItem);

int progressValue = a.mySlowFunction();

int progressMaxValue = a.B;

if (e.CellElement.Children.Count > 0)

{

var prg = e.CellElement.Children[0] as RadProgressBarElement;

prg.Maximum = progressMaxValue;

prg.Value1 = progressValue;

prg.Text = string.Format("{0}/{1}", progressValue, progressMaxValue);

return;

}

RadProgressBarElement element = new RadProgressBarElement();

element.Minimum = 0; //set min value of RadProgressBarElement

element.Maximum = progressMaxValue; //also max

element.Value1 = progressValue > progressMaxValue ? progressMaxValue : progressValue;

element.Text = string.Format("{0}/{1}", progressValue, progressMaxValue);

//element.ProgressText =

element.StretchHorizontally = true;

element.StretchVertically = true;

e.CellElement.Children.Add(element);

}

public class MyData

{

public string A { get; set; }

public int B { get; set; }

public string C { get; set; }

public int D { get; set; }

public MyData(int b, int d)

{

A = "ProgressBar MaxValue";

B = b;

C = "ProgressBar Value";

D = d;

}

public int mySlowFunction()

{

Thread.Sleep(100);

return D;

}

answered on 14 Dec 2010, 02:34 PM

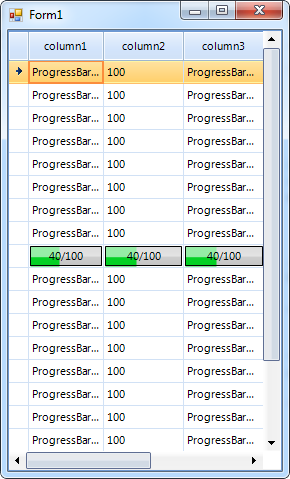

One other thing that i noticed is that, if I make the window so small that the progressbar column does not show and then resizes the window.. i get the progress bars in the other columns.. see attached screenshot.

answered on 22 Dec 2010, 02:38 PM

ProgressBarCellElement.zip

Hello Svein Thomas,

I have attached a sample project that demonstrates how you can achieve the desired behavior.

All the best,
Svett
