Cell Double Click Event

[Ercument Berktas]

Hi,

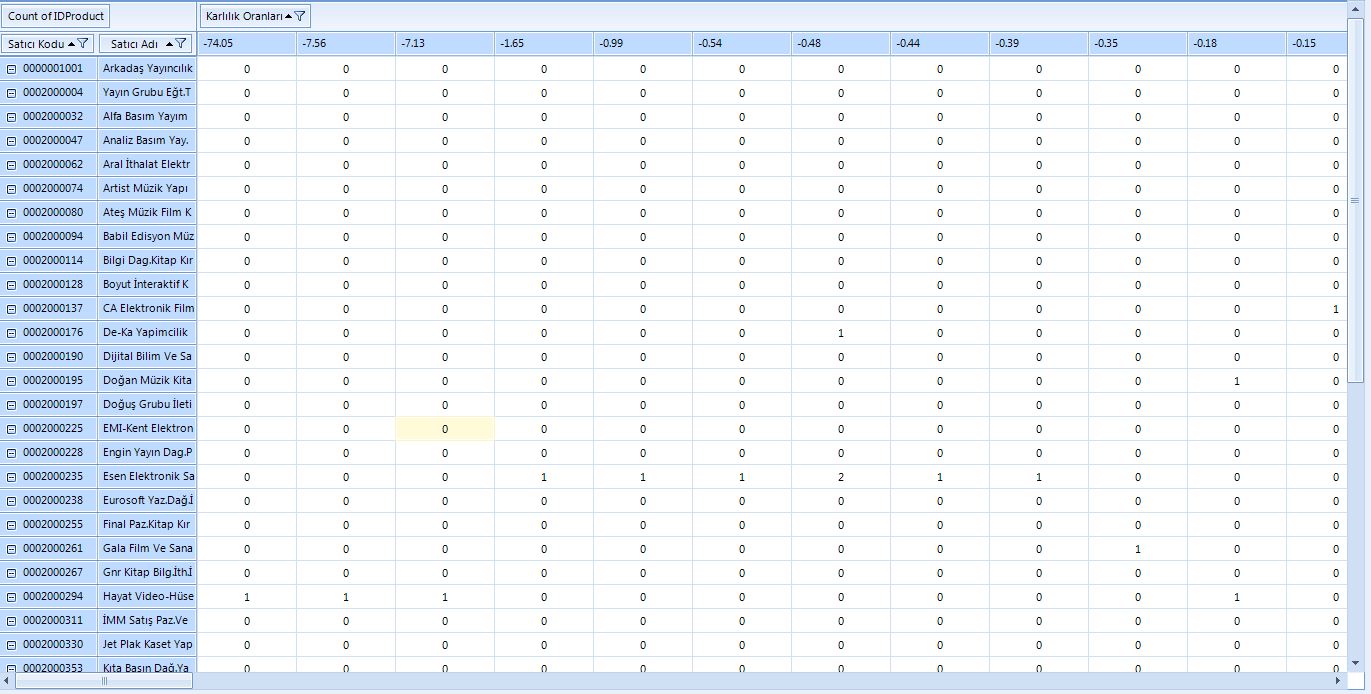

We need a cell double click event on our pivot in order to get the values on that row and column. Our pivot's sample is attached.
We tried the code block below. But did not work. Can you help about this. Our product version is 2013.1.220.20

private void PivotGridReport_CellCreating(object sender, Telerik.WinControls.UI.PivotCellCreatingEventArgs e)
{
      e.CellElement.DoubleClick += new EventHandler(CellElement_DoubleClick);
}

void CellElement_DoubleClick(object sender, EventArgs e)
{

}

[Dimitar]

Hello,

Thank you for writing.

You can get the double clicked cell values in few easy steps:

• Handle the RadPivotGrid MouseDoubleClick event
• Get the clicked cell in a PivotCellElement object using proper casting
• Use the object to get cell values you want

Here is the sample code that corresponds the steps i took:

private void radPivotGrid1_MouseDoubleClick(object sender, MouseEventArgs e)
{
    PivotCellElement currentCell =radPivotGrid1.PivotGridElement.ElementTree.GetElementAtPoint(e.Location) as PivotCellElement;
    if (currentCell != null)
    {
        var cellValue = currentCell.Value;
        var column = currentCell.Column.Name;
        var row = currentCell.Row.Name;
    }
}

I hope this helps. Should you have any other questions do not hesitate to ask.

Regards,
Mitko
Telerik

[Rakhee]

Hi Dimitar

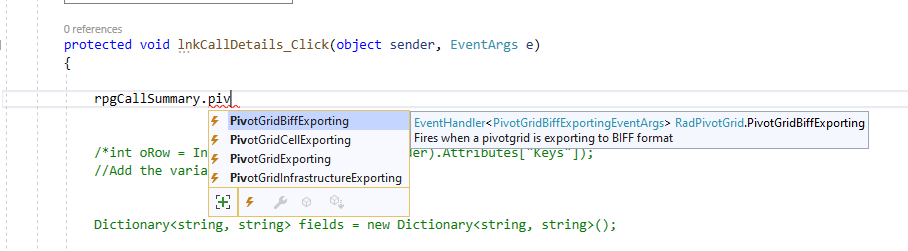

Sorry to return to this thread, but Im wanting to use your code you have suggested but I dont seem to have PivotGridElement property available when I type in the name of my rad pivot grid.

Can you advise what I could be missing please?

Thanks





[Nadya | Tech Support Engineer]

Hello, Rakhee,

RadPivotGridElement belongs to namespace Telerik.WinControls.UI. Note that the following 3 assemblies are required for all projects that uses Telerik UI for WinForms suite:

- Telerik.WinControls

- Telerik.WinControls.UI

- TelerikCommon

In addition to this, RadPivotGrid needs the Telerik.WinControls.PivotGrid reference as well. Could you please make sure that you have refered to the specified dlls in your project.

I hope this information helps. If you need any further assistance, please don't hesitate to contact me.

[Ryan]

<script type="text/javascript">
    function onDblClick(sender, eventArgs) {
        __doPostBack("<%= ReportPivotGrid.UniqueID %>", "RowDoubleClicked:" + eventArgs);
    }
</script>

I am catching the Double Click Event, but am not certain how to get the current Index, when using a Rad Grid the command would be

get_itemIndexHierarchical

What argument does the PivotGrid require?

[Dimitar]

Hello Ryan,

Thank you for contacting Telerik support.

I think that you have posted your question in a wrong forum because this thread is for RadPivodGrid for WinForms. I want to kindly ask you to post your question in the appropriate forum section. This way you will receive proper answer to your question.

Thank you in advance for your patience and cooperation.

Regards,
Dimitar
Telerik
