CartesianGridLineAnnotation - not shown correctly

2 posts, 0 answers
  1. Thomas
    Thomas avatar
    1 posts
    Member since:
    Mar 2009

    Posted 19 Oct 2018 Link to this post

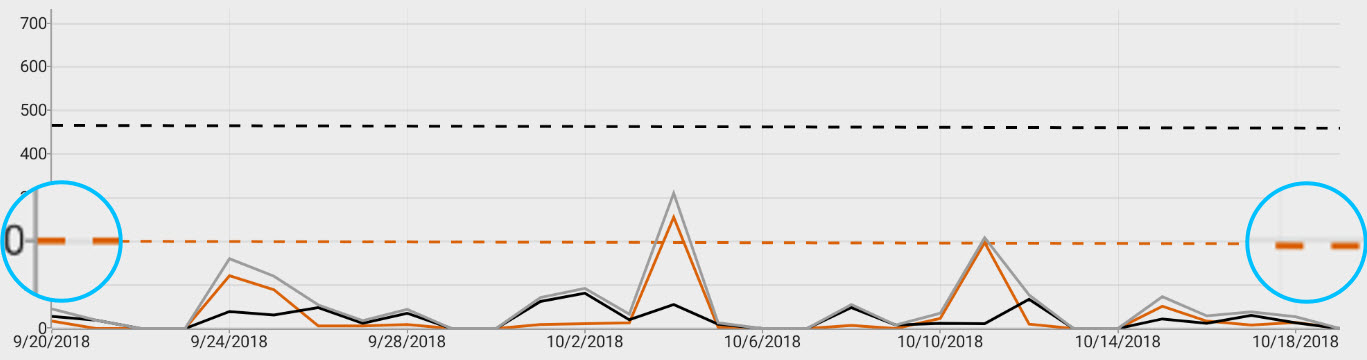

    I have an issue with the Telerik Chart control in Xamarin on Android - please see the attached screenshot.
    I added a CartesianGridLineAnnotation using the following code:

    chartCounter.Annotations.Add(new CartesianGridLineAnnotation() { Axis = verticalAxis, Value = fColorMaxContract, Stroke = Color.FromHex("EB6909"), StrokeThickness = 2, DashArray = new double[] { 8, 8 } });

    The line should be at value 200 but is "hanging down" on the right side. I magnified this a little so it is easier to see.
    I had this issue with older versions but still in Telerik.UI.for.Xamarin v2018.3.1018.1 to which I upgraded now.

    This seems like a bug to me.


    Best regards,


  2. Didi
    Didi avatar
    384 posts

    Posted 23 Oct 2018 Link to this post

    Hi Thomas,

    Thank you for the provided code and screenshot.

    I have tested the described scenario and I reproduced the issue on Android when GridLineAnnotation is used. I have logged this in our Feedback portal and you could follow the item on the provided link: Chart: [Android] The CartesianGridLineAnnotation is not showing correctly. Currently there is no suitable workaround I could suggest. Please find your Telerik points updated for this report.

    Let me know if you have any other questions or concerns.
