Cannot find Property to change CheckMark Color for a CheckBox

3 Answers 225 Views
Themes and Visual Style Builder
This is a migrated thread and some comments may be shown as answers.
ahmed almousa
Top achievements
Rank 1
ahmed almousa asked on 02 Apr 2011, 04:12 PM
Dear Telerik team,
                              I am designing a style for CheckBox control and the problem i face is "I cannot find property to change CheckMark color and backColor of the box for check mark. The property i guess would have worked is "RadCheckBoxElement.ToggleState=Ok.Pressed. But this property produces arrows etc ( for whatever shape i choose from available options)

none of the property changes the dark brown color of check and the box.

Thanks

3 Answers, 1 is accepted

Sort by
0
Ivan Petrov
Telerik team
answered on 04 Apr 2011, 04:09 PM
Hello ahmed almousa,

Thank you for writing.

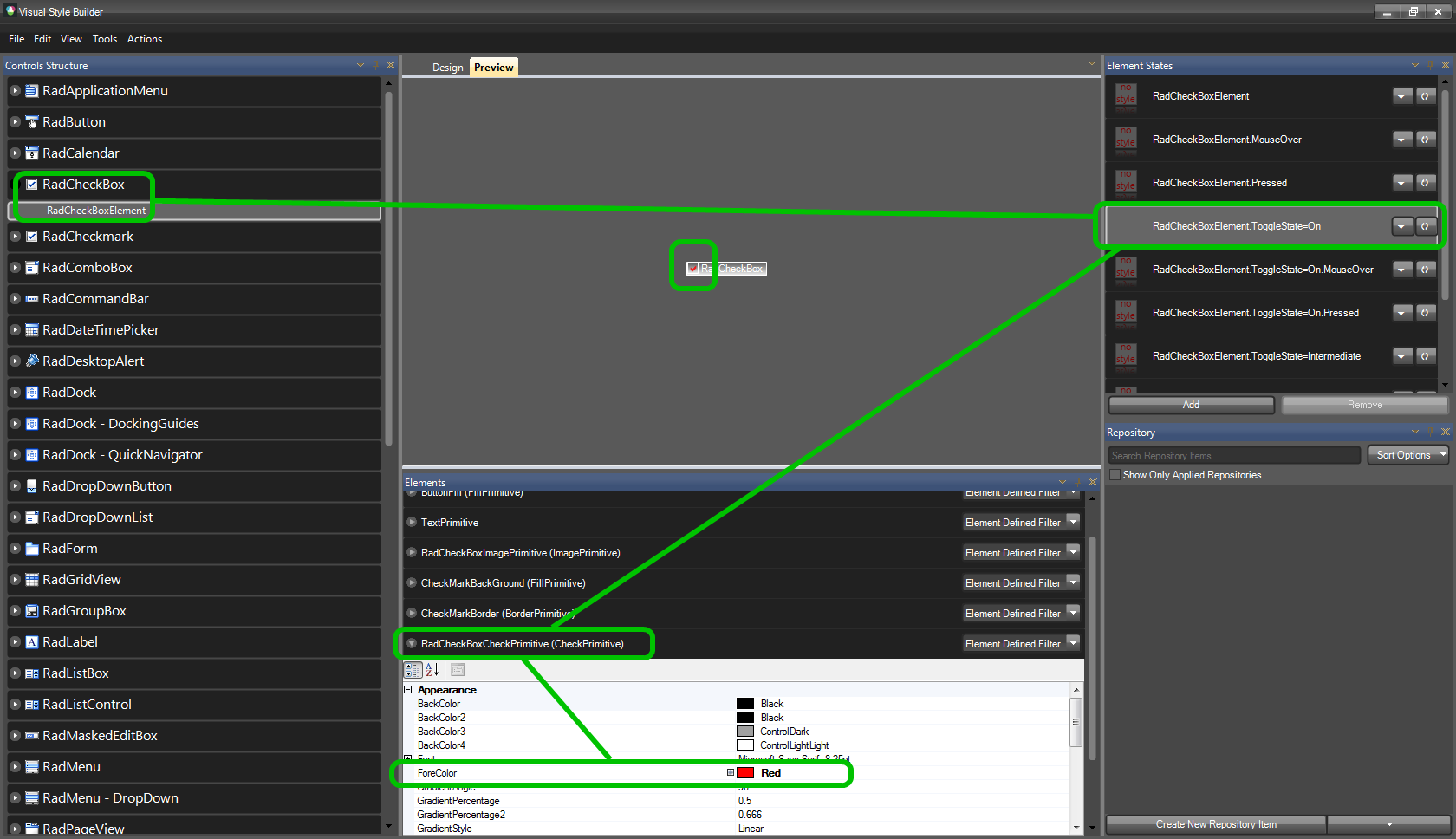

In order to change the color of the RadCheckBox check mark, do the following steps:
1. Select in the Controls Strucure panel RadCheckBox >> RadCheckBoxElement.
2. Select in the Element States panel RadCheckBoxElement.ToggleState=On.
3. Select in the Elements panel RadCheckBoxCheckPrimitive and set the ForeColor property to whatever color you want.

For the back color and border select in the Elements panel - RadCheckMarkBackGround and RadCheckMarkBorder respectively and apply the appropriate repositories.

I hope this will help you, if you have further questions, feel free to ask.

Best wishes,
Ivan Petrov
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
0
Sheetal Prasad
Top achievements
Rank 1
answered on 27 Sep 2011, 07:26 PM
I tried to follow the above specified steps to change color of checkmark. But i am unable to find those proeprties in Microsoft Blend Expression.
Could you please send the xaml code which genrates after setting these value? So that i will add the xaml code in CheckboxStyle.

Can i make darker or increase size of the checkmark of RadCheckBox in order to make display it clearly when this is diabled state ?

Thanks in advance!!!

Thanks & Regards,
Sheetal P. Sahu
0
Nikolay
Telerik team
answered on 28 Sep 2011, 08:42 AM
Hello Sheetal,

The information in this forum thread concerns RadCheckBox for WinForms. If you have a question regarding our Silverlight/WPF suites, please submit it in the appropriate forum section.

Kind regards,
Nikolay
the Telerik team
