C# radgridview Pinned Column

[Marco]

Hello,

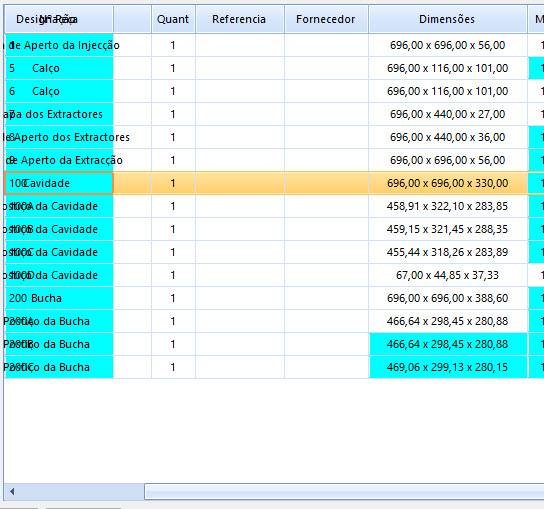

I'm trying to use one pinned column but when moving the bar the text from the others columns became mixed with the pinned column.



How to fix it?



Best Regards,

Marco Gaspar



[Dess | Tech Support Engineer, Principal]

Hello, Marco,

According to the provided information, it wouldn't be easy to conclude what causes this undesired behavior. Usually, this may be affected by the UseCompatibleTextRendering property. It controls whether GDI or GDI+ will be used for rendering the text. Is this the case on your end?

It would be greatly appreciated if you can provide a complete code snippet that leads to this behavior. Thus, we would be able to the behavior on our end and provide further assistance.

Thank you in advance for your cooperation. I am looking forward to your reply.

Regards,
Dess | Tech Support Engineer, Principal
Progress Telerik

[Marco]

Hello,



Telerik.WinControls.UI.GridViewTextBoxColumn radGridListaColumn1 = new Telerik.WinControls.UI.GridViewTextBoxColumn();



            radGridListaColumn1.DataType = typeof(string);
            radGridListaColumn1.FieldName = "Nº Peça";
            radGridListaColumn1.HeaderText = "Nº Peça";
            radGridListaColumn1.IsVisible = true;
            radGridListaColumn1.Name = "Nº Peça";
            radGridListaColumn1.Width = 110;
            radGridListaColumn1.FormatInfo = cultureInfo;
            radGridListaColumn1.IsPinned = true;
            radGridListaColumn1.PinPosition = Telerik.WinControls.UI.PinnedColumnPosition.Left;



            radGridListaColumn2.DataType = typeof(string);
            radGridListaColumn2.FieldName = "Designação";
            radGridListaColumn2.HeaderText = "Designação";
            radGridListaColumn2.IsVisible = true;
            radGridListaColumn2.Name = "Designação";
            radGridListaColumn2.Width = 210;
            radGridListaColumn2.TextAlignment = ContentAlignment.MiddleCenter;

            radGridLista.MasterTemplate.Columns.Add(radGridListaColumn1);                         radGridLista.MasterTemplate.Columns.Add(radGridListaColumn2);



radGridLista.MasterTemplate.AllowAddNewRow = false;
            radGridLista.MasterTemplate.AllowColumnChooser = false;
            radGridLista.MasterTemplate.AllowColumnHeaderContextMenu = false;
            radGridLista.MasterTemplate.AllowDragToGroup = false;
            radGridLista.MasterTemplate.AllowRowResize = false;
            radGridLista.MasterTemplate.AutoGenerateColumns = false;
            radGridLista.MasterTemplate.AllowColumnResize = false;
            radGridLista.MasterTemplate.AllowEditRow = true;

radGridLista.MasterTemplate.EnableSorting = true;

            radGridLista.MasterTemplate.AllowColumnResize = false;
            radGridLista.AllowCellContextMenu = false;
            radGridLista.AllowColumnHeaderContextMenu = false;





GridViewDataRowInfo rowInfo = new GridViewDataRowInfo(this.radGridLista.MasterView);
                rowInfo.Cells["Nº Peça"].Value = "XPTO";
                rowInfo.Cells["Designação"].Value = "XPTO2;

radGridLista.Rows.Add(rowInfo);

[Dess | Tech Support Engineer, Principal]

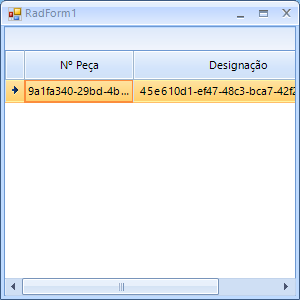

Marco, I prepared a sample project with the provided code snippet. Here is the observed result on my end:

I have attached my sample project. Please give it a try and see how it works on your end. Am I missing something? Could you please specify the exact steps how to reproduce the problem?

[Marco]

Thanks for the help.



Found the problem (UsecompatibletextRendering)
