Blurry rendering using WPF ReportViewer

1 Answer 201 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Matthias
Top achievements
Rank 1
Matthias asked on 12 Sep 2016, 08:13 AM

Hi,

we use the WPF ReportViewer to display reports in our application. The reports are created using the standalone report designer (Q2 2015).

When we use the preview function of the designer we get nicely generated reports including background images. However, when we use the WPF ReportViewer to render and display the reports either the background image is pixelated (at 100% zoom) or the text gets blurry (zoom > 100%).

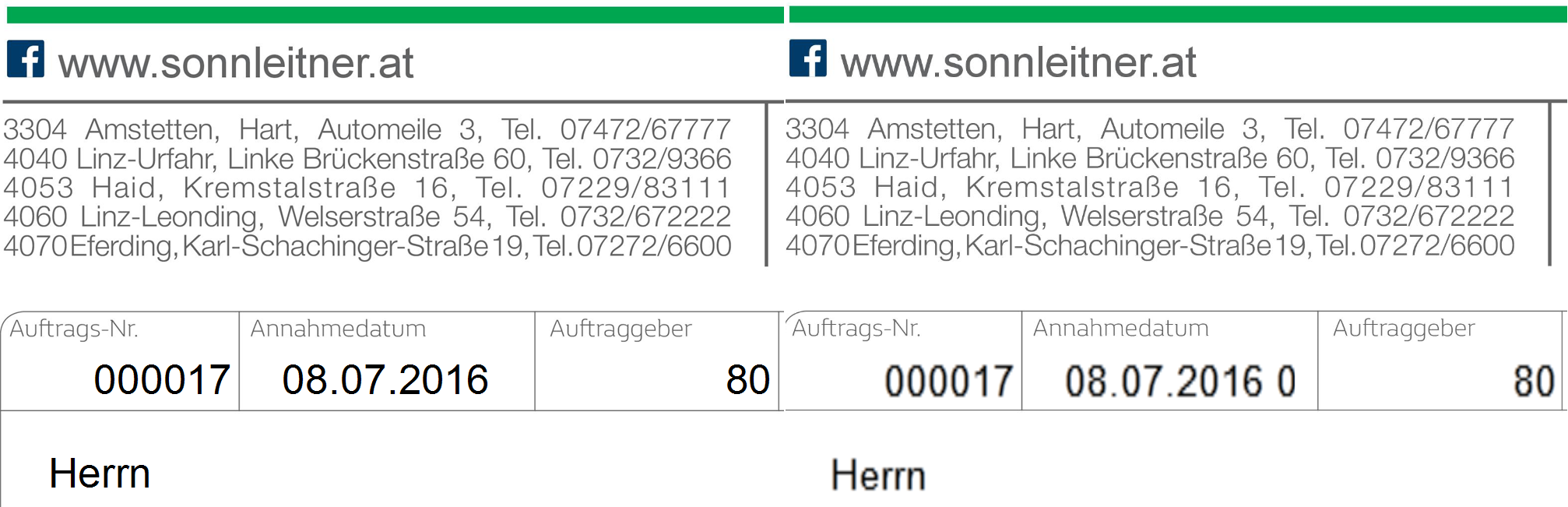

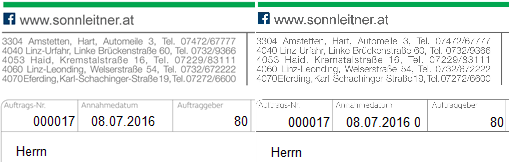

I attached 2 images where the difference between the designer (left side) and the WPF ReportViewer (right side) is shown.

How can I configure the ReportViewer to render and display our reports correctly?

Thanks,
Matthias

1 Answer, 1 is accepted

Sort by
0
Stef
Telerik team
answered on 13 Sep 2016, 03:54 PM
Hi Matthias,

The design-time preview uses Image rendering.
The preview in the WPF ReportViewer uses XAML rendering, where images will be rendered with standard 96dpi settings. The rest of the content will be displayed via Canvas, TextBlock and etc. XAML elements.


Please check if only images are blurred on zoom, or text (not displayed via image) gets blurred too. Also let us know the machine magnification and resolution settings, and if changing fonts affects the report's preview. Test exporting in PDF to compare the results.

In order to provide you more accurate suggestions, we will need to test the report locally in a similar environment.

Regards,
Stef
Telerik by Progress
