Binding not fired

5 posts, 1 answers
  1. Simon
    Simon avatar
    11 posts
    Member since:
    Mar 2020

    Posted 20 May 2020 Link to this post

    I have a number of items in my template I am trying to bind custom objects to. That part works fine for the same control in other forms etc but the property change code it never fired





     public static readonly BindableProperty RowItemProperty = BindableProperty.Create(
                 nameof(RowItem),
                 typeof(CSFormSwitchLine),
                 typeof(CSSwitch),
                 defaultValue: null,
                 defaultBindingMode: BindingMode.TwoWay,
                propertyChanged: RowItemUpdated
            );

            public CSFormSwitchLine RowItem { get; set; }

            private static void RowItemUpdated(BindableObject bindable, object oldValue, object newValue)
            {





  2. Lance | Manager Technical Support
    Admin
    Lance | Manager Technical Support avatar
    1168 posts

    Posted 20 May 2020 Link to this post

    Hi Simon,

    Thank you for sharing the snippet, however it's impossible to tell you what's wrong from only that code (I'd need the rest of the UI and view model to recreate the issue).

    What I can say is that you should review the BindableProperty's setup, the RowItem accessor looks incorrect (it doesn't even use the BindableProperty). Please follow the directions in the Microsoft documentation here https://docs.microsoft.com/en-us/xamarin/xamarin-forms/xaml/bindable-properties (pay attention to the accessor's setter and getter).

    If you have any further trouble, help for BindableProperties is better sought after on StackOverflow or XamarinChat (live chat on Slack, invite yourself here). The Telerik forums are specific to problems with the UI for Xamarin controls themselves.

    Regards,
    Lance | Team Lead - US DevTools Support
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  3. Simon
    Simon avatar
    11 posts
    Member since:
    Mar 2020

    Posted 21 May 2020 in reply to Lance | Manager Technical Support Link to this post

    Hi Lance

    I missed the xaml first time. how much / what do you need? its part of a larger project so I am trying to not provide way to much information to be confusing. as for the Bindable property, that is completely working in a Radlist and for a few other controls I have done its just SlideView that it doesn't seem to work on



                    <local:DashboardItemTemplateSelector.DashboardTemplate>
                        <DataTemplate>
                            <telerikCommon:RadDockLayout>

                                <StackLayout Orientation="Vertical" telerikCommon:RadDockLayout.Dock="Top"  HorizontalOptions="Center">
                                    <Label Text="{Binding StepTitle}" HorizontalTextAlignment="Center" TextColor="{StaticResource DarkGreyColor}"/>
                                    <Label Text="{Binding SubTitle1}" HorizontalTextAlignment="Center" />
                                    <Label Text="{Binding SubTitle2}" HorizontalTextAlignment="Center" />
                                    <Label Text="{Binding StepDestination}" FontSize="28" HorizontalTextAlignment="Center" />
                                </StackLayout>

                                <StackLayout Orientation="Vertical" telerikCommon:RadDockLayout.Dock="Bottom" Margin="30" HorizontalOptions="Center">
                                    <controls:DSRadButton x:Name="button" Text="{x:Static resources:AppResources.Skip}"
                                                          Style="{StaticResource buttonStyleWhite}"
                                                          HorizontalOptions="End" WidthRequest="100"
                                                          TextColor="{StaticResource IndigoLightColor}"
                                                          BackgroundColor="Transparent" Pressed="Skip_Pressed"/>
                                    <controls:DSRadButton x:Name="mainButton" Text="Button"
                                                          Style="{StaticResource buttonStyle}" HorizontalContentAlignment="Center"
                                                          Pressed="MainButton_Pressed"
                                                          BackgroundColor="{StaticResource IndigoLightColor}"   DSObject="{ Binding  ., Converter={StaticResource ObjectConverter}}" />
                                    <Label Text="{Binding StepNextSub1}" HorizontalTextAlignment="Center" Margin="0" Padding="0" />
                                    <Label Text="{Binding StepNextSub2}" HorizontalTextAlignment="Center" Margin="0" Padding="0" />
                                    <controls:DSSwitch Grid.Column="0" Grid.Row="1" RowItem="{ Binding  .}"   />
                                </StackLayout>

                                <Label Text="{Binding StepInstructions}" HorizontalOptions="Center" Margin="20" />
                            </telerikCommon:RadDockLayout>
                        </DataTemplate>
                    </local:DashboardItemTemplateSelector.DashboardTemplate>
  4. Answer
    Lance | Manager Technical Support
    Admin
    Lance | Manager Technical Support avatar
    1168 posts

    Posted 21 May 2020 Link to this post

    Hello Simon,

    Thank you for the ItemTemplate. The previous code you shared is for a CSSwitch control. In that SlideView template, there is no CSSwitch control anywhere that I can see (only a DSSwitch). If that isn't a typo, then that would explain why a breakpoint isn't being hit inside the CSSwitch control's property.

    Finally, in Xamarin, you do not need to use a dot accessor for the binding, just use:

    < ... RowItem="{Binding}"   />

    Demo Test

    I checked your setup and everything is working as expected. I attached my test app for you to compare.

    When you run it, notice the checkbox and the text ro the right of the checkbox. Those values are directly set from the following binding:

    <local:CSSwitch RowItem="{Binding}" />

    The RowItem BindableProperty is configured per Microsoft's guidance for Xamarin.Forms:

    public static readonly BindableProperty RowItemProperty = BindableProperty.Create(
        "RowItem", typeof(CSSwitchLine), typeof(CSSwitch), null, propertyChanged: OnRowItemChanged);

    // This is accessor that a BindableProperty uses
    public CSSwitchLine RowItem
    {
        get => (CSSwitchLine)GetValue(RowItemProperty);
        set => SetValue(RowItemProperty, value);
    }

    private static void OnRowItemChanged(BindableObject bindable, object oldValue, object newValue)
    {
        if (bindable is CSSwitch self && newValue is CSSwitchLine sl)
        {
            self.settingTitleLabel.Text = sl.SettingTitle;
            self.settingCheckBox.IsChecked = sl.SettingEnabled;
        }
    }

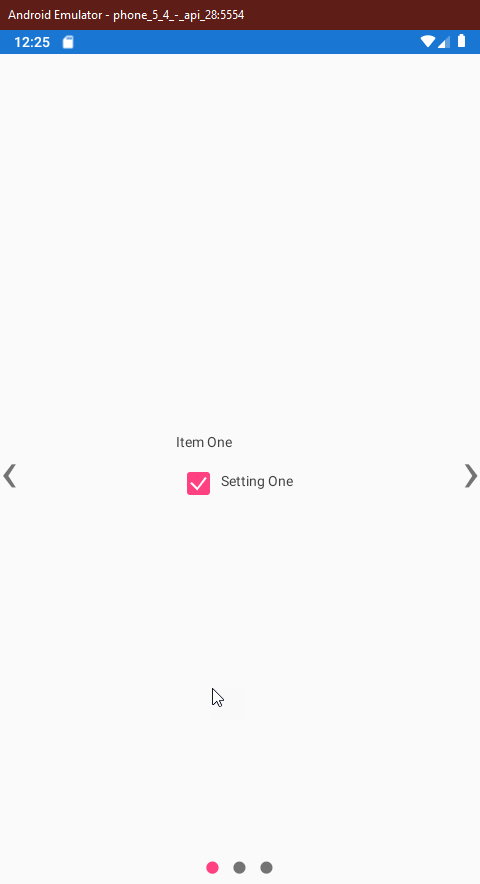

    Here's the result at runtime:

    Here's the DataTemplate (the DockLayout parent is unrelated)

    <DataTemplate x:DataType="local:CSSwitchLine">
        <Grid>
            <StackLayout Spacing="10"
                         VerticalOptions="Center"
                         HorizontalOptions="Center">
                <Label Text="{Binding SwitchLineTitle}" />

                <!-- This passes down the CSSwitchLine instance to the switch -->
                <local:CSSwitch RowItem="{Binding}" />
            </StackLayout>
        </Grid>
    </DataTemplate>

    With that demo to compare against, you should be able to isolate the problem with the current code you're using.

    Further Xamarin Development Debugging

    Debugging general Xamarin programming problems that are unrelated to the UI for Xamarin controls falls outside the scope of Telerik support. However, I'm willing to make an exception to the policy if you can take the following steps:

    1. Update my attached demo with your code so that it replicates the problem
    2. Open a new support ticket and attach the reproducible application

    Once the support team sees the ticket come in, it will be assigned to me and I will investigate it after hours.

    Regards,
    Lance | Team Lead - US DevTools Support
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  5. Simon
    Simon avatar
    11 posts
    Member since:
    Mar 2020

    Posted 29 May 2020 in reply to Lance | Manager Technical Support Link to this post

    Thank you very much putting your binding methods into mine now works.
