Bar chart customization

4 posts, 0 answers
  1. Fabrizio
    Fabrizio avatar
    21 posts
    Member since:
    Nov 2013

    Posted 21 Aug 2018 Link to this post

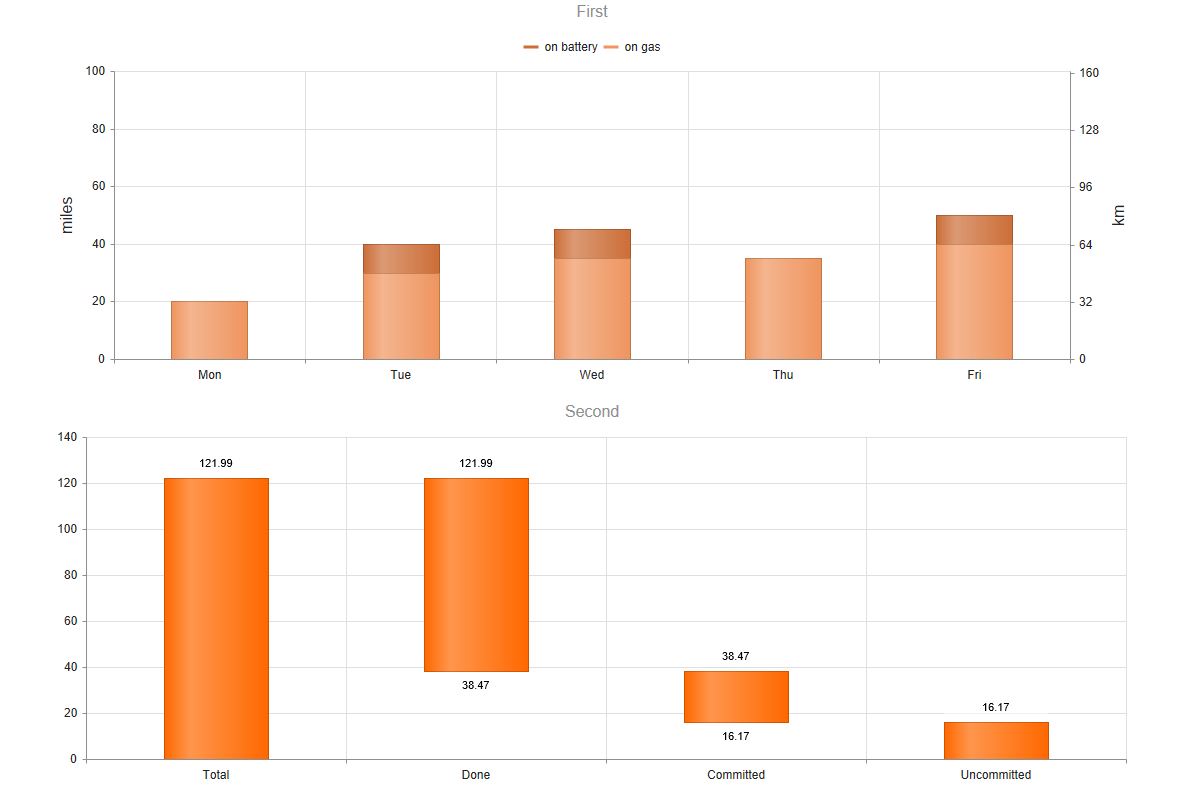

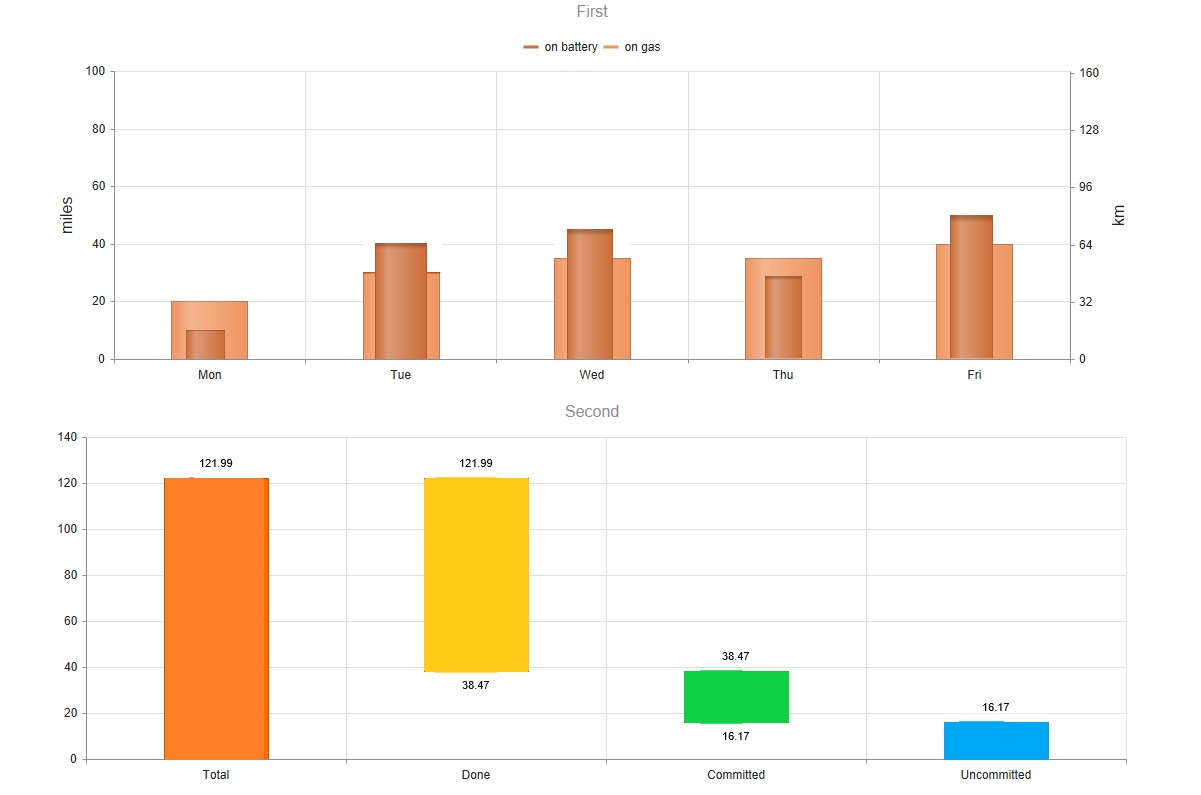

    Hi, I realized the 2 bar chart in a single mvc5/bootstrap page as shown in the image "actual.jpg" (see the code) I would like to obtain the result in "wanted.jpg" in short an overlapping bar chart and changing categories colors, there is a way to do this?

    Thank You in advance.

    code:
    <div class="container-fluid">
        <div class="row">
            <div class="col-xs-18 col-md-12">
                @(Html.Kendo().Chart()
                                        .Name("chart-multi")
                                        .Title("First")
                                        .Legend(legend => legend
                                            .Position(ChartLegendPosition.Top)
                                        )
                                        .Series(series =>
                                        {
                                            series
                                                .Column(new int[] { 20, 40, 45, 30, 50 })
                                                .Color("#cc6e38")
                                                .Spacing(-1)
                                                .Name("on battery");
                                            series
                                                .Column(new int[] { 20, 30, 35, 35, 40 })
                                                .Color("#ef955f")
                                                .Name("on gas");
                                        })
                                        .CategoryAxis(axis => axis
                                            .Categories("Mon", "Tue", "Wed", "Thu", "Fri")
                                            .AxisCrossingValue(0, 10)
                                        )
                                        .ValueAxis(axis => axis
                                            .Numeric()
                                                .Title("miles")
                                                .Min(0).Max(100)
                                        )
                                        .ValueAxis(axis => axis
                                            .Numeric("km")
                                                .Title("km")
                                                .Min(0).Max(161).MajorUnit(32)
                                        )
                )
            </div>
        </div>
    </div>

    <div class="container-fluid">
        <div class="row">
            <div class="col-xs-18 col-md-12">
                @(Html.Kendo().Chart()
                                            .Name("bar-chart")
                                            .Title("Second")
                                            .Series(series =>
                                            {
                                                series.RangeColumn(new double[][] {
                                                                   new double[] {0, 121.99},
                                                                   new double[] {38.47, 121.99},
                                                                   new double[] {16.17, 38.47},
                                                                   new double[] {0, 16.17}
                                                }).Labels(labels => labels
                                                    .Visible(true)
                                                    .From(from => from.Template("#=value.from#"))
                                                    .To(to => to.Template("#=value.to#")));
                                            })
                                            .CategoryAxis(axis => axis
                                                .Categories("Total", "Done", "Committed", "Uncommitted")
                                            )
                                            .Tooltip(tooltip => tooltip
                                                .Visible(true)
                                                .Template("#= value.to - value.from #")
                                            )
                )
            </div>
        </div>
    </div>

  2. Tsvetina
    Admin
    Tsvetina avatar
    2481 posts

    Posted 23 Aug 2018 Link to this post

    Hello Fabrizio,

    I see you already used the Spacing setting to put columns one on top of the others, so you just need to make the top column narrower. This can be achieved with a custom visual. But also, to have a look like the on in the image, you would need to switch the two series order:
    @(Html.Kendo().Chart()
        .Name("chart-multi")
        .Title("First")
        .Legend(legend => legend
            .Position(ChartLegendPosition.Top)
        )
        .Series(series =>
        {
            series
                .Column(new int[] { 20, 30, 35, 35, 40 })
                .Color("#ef955f")
                .Name("on gas")
                .Spacing(-1);
            series
                .Column(new int[] { 20, 40, 45, 30, 50 })
                .Color("#cc6e38")
                .Name("on battery")
                .Visual("customVisual");
        })
        .CategoryAxis(axis => axis
            .Categories("Mon", "Tue", "Wed", "Thu", "Fri")
            .AxisCrossingValue(0, 10)
        )
        .ValueAxis(axis => axis
            .Numeric()
                .Title("miles")
                .Min(0).Max(100)
        )
        .ValueAxis(axis => axis
            .Numeric("km")
                .Title("km")
                .Min(0).Max(161).MajorUnit(32)
        )
    )

    <script>
        function customVisual(e) {
            var origin = e.rect.origin;
            var center = e.rect.center();
            var bottomRight = e.rect.bottomRight();


            var gradient = new kendo.drawing.LinearGradient({
                start: [0, 1],
                end: [1, 1],
                stops: [{
                    offset: 0,
                    color: "#cc6e38",
                    opacity: 1
                }, {
                    offset: 0.25,
                    color: "#db9973",
                    opacity: 1
                }, {
                    offset: 1,
                    color: "#cc6e38",
                    opacity: 1
                }]
            });
            var offset = (bottomRight.x - origin.x) / 4;
            var path = new kendo.drawing.Path({
                fill: gradient,
                stroke: {
                    color: "#939393",
                    width: 0.5
                }
            })
            .moveTo(origin.x + offset, bottomRight.y)
            .lineTo(bottomRight.x - offset, bottomRight.y)
            .lineTo(bottomRight.x - offset, origin.y)
            .lineTo(origin.x + offset, origin.y)
            .close();

            return path;
        }
    </script>

    With regard to coloring the second Chart series, there are a few ways to do this, depending on where the colors come from. If they come from a static array with colors, you could try something like this:
    @(Html.Kendo().Chart()
         .Name("bar-chart")
         .Title("Second")
         .Series(series =>
         {
             series.RangeColumn(new double[][] {
                                new double[] {0, 121.99},
                                new double[] {38.47, 121.99},
                                new double[] {16.17, 38.47},
                                new double[] {0, 16.17}
             })
             .ColorHandler("getColor")
             .Labels(labels => labels
                 .Visible(true)
                 .From(from => from.Template("#=value.from#"))
                 .To(to => to.Template("#=value.to#")));
         })
         .CategoryAxis(axis => axis
             .Categories("Total", "Done", "Committed", "Uncommitted")
         )
         .Tooltip(tooltip => tooltip
             .Visible(true)
             .Template("#= value.to - value.from #")
         )
    )

    <script>
        var colors = ["orange", "gold", "limegreen", "lightskyblue"];
        function getColor(data) {
            var index = data.index;
            var numColors = colors.length;

            var colorIndex = index % numColors;
            return colors[colorIndex];
        }
    </script>

    If you are binding the series to actual data items from a DataSource and the color comes with the data, you can set the ColorField property of the RangeColumn series to the field in the DataSource that contains the color name.

    Regards,
    Tsvetina
    Progress Telerik
    Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
  3. Fabrizio
    Fabrizio avatar
    21 posts
    Member since:
    Nov 2013

    Posted 27 Aug 2018 in reply to Tsvetina Link to this post

    Thank You for the info, exactly what I needed.

    There is a tutorial or some documentation that focus on custom visual?



    Thanks again

  4. Alex Hajigeorgieva
    Admin
    Alex Hajigeorgieva avatar
    695 posts

    Posted 29 Aug 2018 Link to this post

    Hello, Fabrizio,

    I am pleased to hear that my colleague Tsvetina was helpful to you.

    We have a custom visual example in the official demos at:

    Bar Charts
    Line Charts

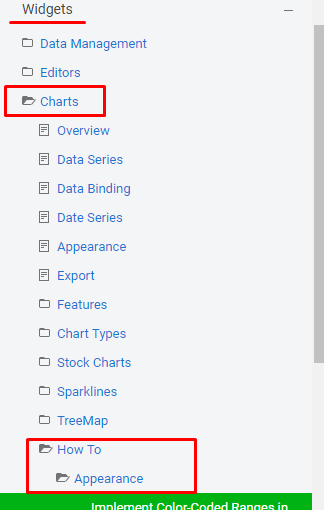

    We also have a folder of how to articles which focus on the appearance of the charts and mostly using the drawing API/custom visuals:

    https://docs.telerik.com/kendo-ui/controls/charts/how-to/appearance/color-coded-bars



    Other resources:

    Drawing API overview
    Drawing API
    Drawing functions
    Geometry

    We can certainly consider adding more resources if you feel that what is available is not enough. Let me know what you think.
