On my website I have three charts of type "Bar" displayed side by side. Each chart has a different count of data. What I like to achieve:
1. each chart area should have the same height no matter if there are 1 or 10 bars in it
2. the bars should align on top, not center inside the chart area
How can I achieve that?
Regards
Heiko
3 Answers, 1 is accepted
0
Hello Heiko,
To make the Charts equally high, just set a width to their wrapper elements. As for aligning the bars on top, this is not possible out of the box but you can achieve it by using a custom visual function for the bars that draws them offset to the top:
Here is a full runnable example showing my suggestions:
https://dojo.telerik.com/EGiTiBiL
Regards,
Tsvetina
Progress Telerik
To make the Charts equally high, just set a width to their wrapper elements. As for aligning the bars on top, this is not possible out of the box but you can achieve it by using a custom visual function for the bars that draws them offset to the top:
function
barVisual(e) {
var
origin = e.rect.origin;
var
center = e.rect.center();
var
bottomRight = e.rect.bottomRight();
var
offset = e.rect.size.height / 2;
console.log(e.rect);
var
path =
new
kendo.drawing.Path({
fill: {
color: e.options.color
},
stroke: {
width: 0.6,
color:
"gray"
}
})
.moveTo(origin.x, bottomRight.y - offset)
.lineTo(bottomRight.x, bottomRight.y - offset)
.lineTo(bottomRight.x, origin.y - offset)
.lineTo(origin.x, origin.y - offset)
.close();
return
path;
}
Here is a full runnable example showing my suggestions:
https://dojo.telerik.com/EGiTiBiL
Regards,
Tsvetina
Progress Telerik
Get quickly onboarded and successful with your Telerik and/or Kendo UI products with the Virtual Classroom free technical training, available to all active customers. Learn More.
0
Heiko
Top achievements
Rank 1
Iron
Veteran
answered on 09 May 2019, 07:38 AM
Hello Tsvetina,

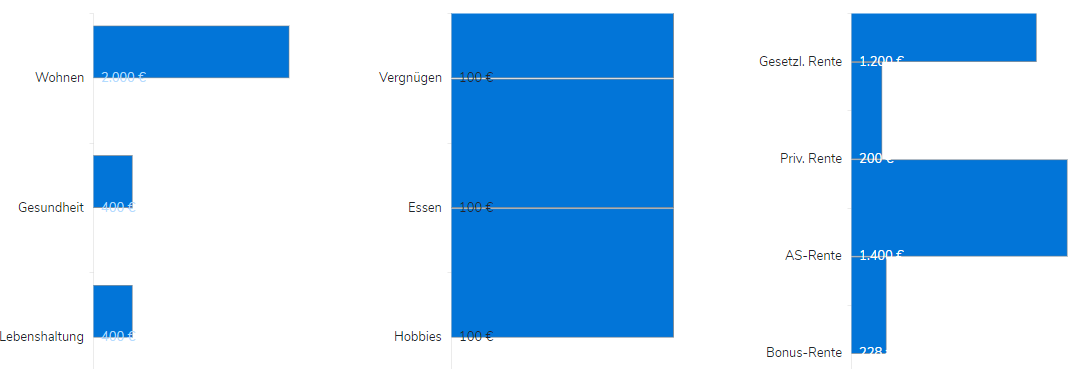

thanks for your help. In my case it is not working. See attached file, this is the result using your code. Maybe it's because I use Bootstrap 4 and flex design. - Besides labels are no longer positioned inside the bar (I use "insideBase" position).
