Hi,
Is there anyway to add a UIElement to the chart plot area. At the moment I have 5
line series and just need to add an ellipse at a specific point within the plot area

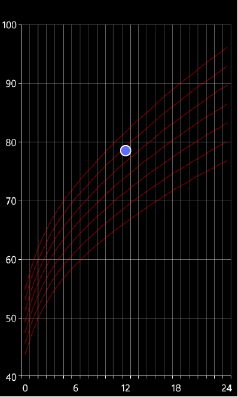

i.e show something at x=11, y=79 as shown in the attached png
Thanks
Mark
Is there anyway to add a UIElement to the chart plot area. At the moment I have 5
line series and just need to add an ellipse at a specific point within the plot area
i.e show something at x=11, y=79 as shown in the attached png
Thanks
Mark
3 Answers, 1 is accepted
0
Hi ma,
Thanks for your interest in RadChart for Windows Phone 7.
The only possible ways to add visuals to the plot area is either to derive from RadChart and to use its protected RenderSurface property (of type Canvas) or to change its control template. Changing the control template however may result in some performance hits and/or instability. As of Q2 2011 BETA2 (expected in a day or two) we have added an additional Adorner layer, which is currently used to display interactivity visuals like tooltips and trackball lines and information. We may consider making this adorner layer public for the official Q2 2011 release (expected by mid July) so that you can add arbitrary visuals over the plot area.
You may do another easy trick by simply positioning the chart in a grid panel and arranging the desired visuals over it within the layout container.
I hope this information is useful. Do not hesitate to write us back if you have other questions and/or problems with our components.
All the best,
Georgi
the Telerik team
Thanks for your interest in RadChart for Windows Phone 7.
The only possible ways to add visuals to the plot area is either to derive from RadChart and to use its protected RenderSurface property (of type Canvas) or to change its control template. Changing the control template however may result in some performance hits and/or instability. As of Q2 2011 BETA2 (expected in a day or two) we have added an additional Adorner layer, which is currently used to display interactivity visuals like tooltips and trackball lines and information. We may consider making this adorner layer public for the official Q2 2011 release (expected by mid July) so that you can add arbitrary visuals over the plot area.
You may do another easy trick by simply positioning the chart in a grid panel and arranging the desired visuals over it within the layout container.
I hope this information is useful. Do not hesitate to write us back if you have other questions and/or problems with our components.
All the best,
Georgi
the Telerik team
