Questions on UI for ASP.NET MVC Forum

0 answers

94 views

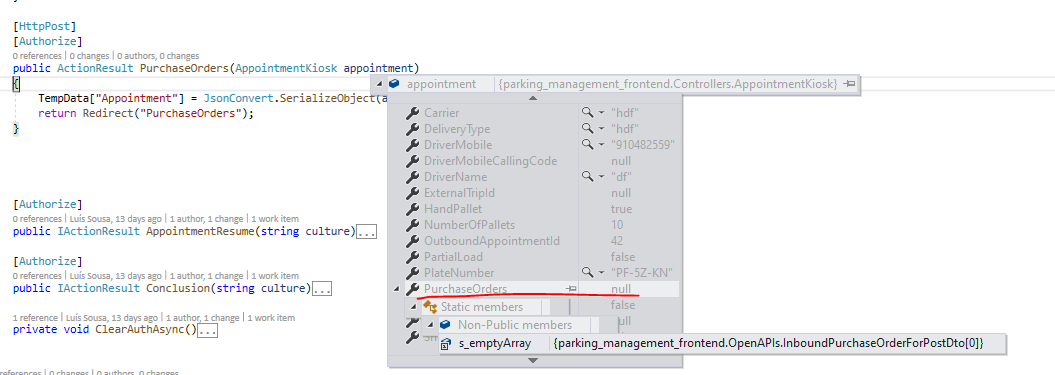

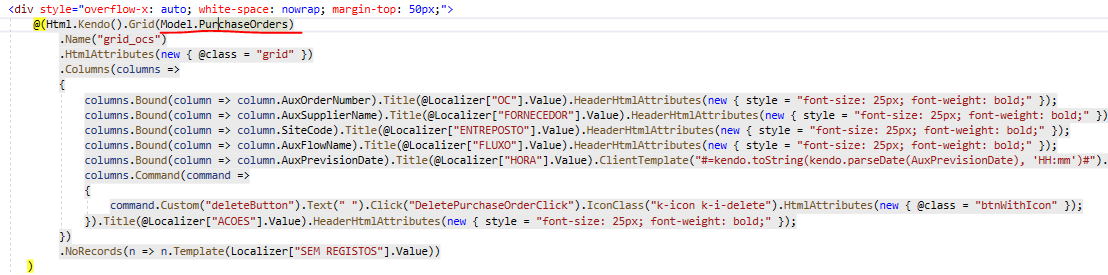

Hello, I'm trying to add one kendogrid to my page and load the data received in a property of my model and then sumbit them again.

I can show items but whsn send back to controller with a submit I recevive null in controller.

Anyone could help me?

This is my current code:

View

Controller

Grid

asked on 13 Dec 2021

1 answer

281 views

Editing custom editor not working on popup

Hello, I followed the example described here to add a new row to a grid for .net core.

https://demos.telerik.com/aspnet-core/grid/editing-custom?_ga=2.26293876.833224250.1638885818-877575679.1613496852&_gac=1.254567930.1636639521.CjwKCAiAm7OMBhAQEiwArvGi3LGIkgkIa0cryh_i3sqYkeTw5t6X4lLPrldP-jBbXgDwqmTnAOAOkhoC-yQQAvD_BwE

All works fine as it is in the example but if I change the GridEditMode to Popup then when it opens the popup it doesn't show the editor template DropDownListFor.

Can you help me out in order to have this working with the GridEditMode.Popup ?

Thanks,

Pedro

Grid

answered on 13 Dec 2021

2 answers

159 views

Checkbox

I want to add checbox to my grid. I tried to use the Select() method but the method shows an error No overload for method Select takes 0 arguments. I need to pass to controller a collection of id elements that the user has selected.

@(Html.Kendo()
.Grid<Model>()
.Name(gridId)
.Columns(col =>
{
col.Select();
col.Bound(fds => fds.Id);
col.Bound(fds => fds.CreateDateTime).ClientTemplateDateTime();
col.Bound(fds => fds.IdClient);
})
.Pageable()
.Sortable()
.DefaultPageable()
.Resizable(c => c.Columns(true))
.AllowCopy(true)
.DataSource(d =>
d.Ajax()
.Model(m => m.Id(vm => vm.Id))
.Read("GetAnalysis", "Export")))

Checkbox

Grid

answered on 13 Dec 2021

1 answer

185 views

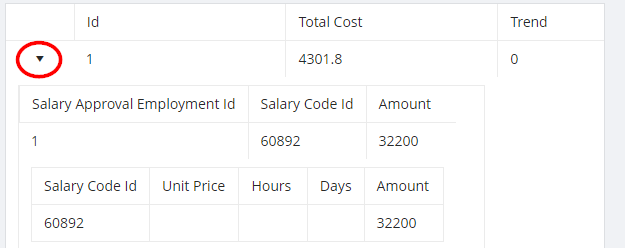

Grid: After Binding a ClientDetailTemplate to a collection in parent row: Sort/Filter functionalities don't work

Hi,

I have a Model object which is used to create the parent Kendo Grid. This Model object contains a list of object which is used as a data source to another nested grid created with a ClientDetailTemplate and DetailInit event. The nested grid is coming up fine but I am unable to perform any grid operations like sorting or filtering. It does not give any error but the grid just closes down.

I think I might be missing some configuration in DetailInit event method to make sure the sorting/filtering operations does not do server operations. So I used grid.dataSource.serveroperation = false; in detailInit event. still the grid just closes in and looks like its trying to do server operation for sorting and filtering. Following is an example of the code that I am using:

public class ParentModel
   {
      public long ParentId { get; set; }
      public List<ChildModel> ChildModelList{ get; set; }
      ...
   }

@(Html.Kendo().Grid<ParentModel>()
    .Name("Grid")
    ...
    .ClientDetailTemplateId("nested_grid")
    .Events(e => e.DetailInit("detailInit"))
    ...
)

<script id="nested_grid" type="text/kendo-tmpl">
    @(Html.Kendo().Grid<ChildModel>()
               .Name("ParentModel_#=ParentId#")
               .Sortable()
               .Filterable()
               .ToClientTemplate()
     )
</script>

<script>
    function detailInit(e) {
        var grid = $("#ParentModel_" + e.data.Name).data("kendoGrid");
        grid.dataSource.data(e.data.ChildModelList);
        grid.dataSource.serveroperation = false;
        }
</script>

Thanks!

Grid

answered on 13 Dec 2021

1 answer

82 views

How to filter date by using kendo grid conlumnMenu.

Hello,

My MVC project used kendo grid control which contain date column. It seems date filter does not work - after I clicking Filter button as below Page refreshed without filter. Any suggestion? Thanks in advance.

in View:

...

columns.Bound(model => model.HireDate).Width(120).Format("{0:yyyy/MM/dd}");

...

.ColumnMenu(columnMenu => columnMenu.Enabled(true).Filterable(true).Sortable(false).ComponentType("modern"))

Filter

Grid

answered on 13 Dec 2021

0 answers

99 views

Anyone use Prig / Telerik for Unit Test Fakes against .NET Framework 4.7? Looking for input / ideas.

Hi

I've explored the use of Moq. I found it useful, except for the fact that it relies heavily on code style that uses dependency injection. As I'm working on some existing legacy code, it can become quite the refactoring effort. The code base also includes some assembly references that could not be addressed via Moq.

Microsoft Fakes worked great IMHO. The only downside I saw was the requirement of VS Enterprise 2019. I'm not sure if I can get my employer to pay for the $5k/yr/developer. I really liked the ability to generate fakes on an assembly directly within VS.

Telerik's solution looks equally expensive. I've yet to explore it. Fakes, Stubs, and Mocks (telerik.com)

Prig looks viable, but looks like a pain to setup with powershell scripts, ome gle etc.

Thanks

PivotGrid

updated question on 13 Dec 2021

1 answer

349 views

DropDownList DataSource Read Action failing to created expected JavaScript at run-time

ASP.NET MVC 2020.3.915, development on an enclave network, so upgrading to newer versions takes an act of Congress, and all the code shown here is typed in by hand—meaning if there are any obvious typos, don't take that as the reason it's not working.

I have a DropDownList set up to get a fresh list of items based on Change and Close events on two DatePicker controls, and it works exactly as desired. I am trying to move this same set of controls to an (existing) preferences settings page. I copied the cshtml code verbatim and made appropriate changes, but it's not working.

Here's the control that is working. It sits inside a TabStrip control:

<div class="editor-field">
    @(Html.Kendo().DropDownListFor(m => m.ReportType)
        .Name("ReportType")
        .DataTextField("Text")
        .DataValueField("Value")
        .OptionLabel("Select a Report Type...")
        .DataSource(source =>
        {
            source.Read(read =>
            {
                read.Action("GetFilteredTeams", "Home").Data("get_Dates");
            }).ServerFiltering(true);
        })
        .HtmlAttributes(new { @class = "reportTypeDropdown" }))
</div>

When I inspect this page, I see that this JavaScript was generated:

kendo.SyncReady(function(){jQuery("#ReportType").kendoDropDownList({dataSource":{"transport":{"read":{"url":"/Reporting/Home/GetFilteredTeams","data":getDates},"prefix":""},"serverFiltering":true,"filter":[],"schema":{"errors":"Errors"}},"dataTextField":"Test","dataValueField":"Value","optionLabel":"Select a Report type..."});});

Again, I copied the DropDownList over to the preference page, where it's inside a PanelBar, made appropriate changes, and this is what it looks like: (FWIW, the get_Dates JavaScript function is in a separate JavaScript file associated with the preferences page. Also, the DropDownList is not bound to the model here).

<div class="pref-sub-section-item">
    @(Html.Kendo().DropDownList
        .Name("ReportTypePref")
        .DataTextField("Text")
        .DataValueField("Value")
        .DataSource(source =>
        {
            source.Read(read =>
            {
                read.Action("GetFilteredTeams", "Preferences").Data("get_Dates");
            }).ServerFiltering(true);
        })
        .HtmlAttributes(new { @class = "reportTypeDropdown" }))
</div>

However, this is the JavaScript that gets generated:

kendo.SyncReady(function(){jQuery("#ReportTypePref").kendoDropDownList({"dataTextField":"Test","dataValueField":"Value"});});

If I copy the JS generated from the working page, change the name of the control and the URL, then paste it in the console (or add it to a document.ready block), the DropDownList starts working in sync with the DatePickers.

I've tried fooling with the CSS in case that was erroring out and causing a conflict. I've had my eye on the console, and there are no JS errors popping up. I've also taken the non-working version out of the PanelBar and just pasted the <div> to the root/top level on that page. Same results. No JS, and it doesn't work. I've also tried adding a property to the model and using DropDownListFor (just throwing darts, really), and still, no luck.

It seems the problem is that on my preferences page, Kendo is not generating the full JS for some reason. This is such a massive project that it's not really feasible to create a discrete model where the problem is repeatable. I realize without viewing the full project, it will be hard to pinpoint, but I'm just looking for some help on how to troubleshoot what's going on here, since looking under the hood of Kendo has it's limits.

Oh, also, the page that is working is \Reporting\Home\Index.cshtml — the page that is not working is \Preferences\Index.cshtml

DropDownList

answered on 10 Dec 2021

1 answer

162 views

Grid Popup with bool or bool? doesn't work

Hi,

I wonder if you could help. I have a Kendo UI grid that has 2 bool elements, this is a MVC core 3.1 project. When I click on the Create or Update buttons on the Edit popup, nothing happens - no errors and the controller action is not being called.

I have code similar to the following code for the grid itself :

@(Html.Kendo().Grid<MyObject>()
    .Name("MyGrid")
    .DataSource(dataSource => dataSource
        .Ajax()
        .Model(m => m.Id(e => e.Id))
        .PageSize(20)
        .Read(read => read.Action("Read", "ActionRead"))
        .Create(create => create.Action("Create", "ActionCreate"))
        .Update(update => update.Action("Update", "ActionUpdate"))
        .Events(events => events.Error("onError"))
    )
    .Columns(columns =>
    {
        columns.Bound(p => p.Name);
        columns.Bound(p => p.IsCompleteStatus).ClientTemplate("<input type='checkbox' #= IsCompleteStatus ? checked='checked' :'' # />");
        columns.Bound(p => p.IsPendingStatus);
columns.Command(command =>
        {
            command.Edit();
            command.Custom("Remove").Click("onRemove").Visible("isRemoveable").IconClass("k-icon k-i-delete k-icon-32");
            command.Custom("Restore").Click("onRestore").Visible("isRestorable").IconClass("k-icon k-i-reset k-icon-32");
        });
    })
    .ToolBar(toolbar => toolbar.Create().Text("Add Status"))
    .Editable(editable => editable.Mode(GridEditMode.PopUp))
    .GridDefaults()

And this is what I have in my view for the popup window:

<form>
    <div asp-validation-summary="ModelOnly" class="text-danger"></div>
    <input asp-for="Id" type="hidden" />
    @Html.FormGroupFor(m => m.Name)
    @Html.EditorFor(m => m.IsCompleteStatus)
  @Html.FormGroupFor(m => m.IsPendingStatus)
</form>

The popup displays fine. However clicking on the Create button (when I hit 'Add') or the Update button (when I click on 'Edit') does absolutely nothing, unless I actually check the checkbox.

If it is a bool type, it also doesn't let me leave it empty, so it needs it checked all the time.

If it a bool? type, it doesn't let me interact with it at all - I cannot check the boxes, so no Create/Update either. If I remove the checkboxes from the view, it displays and works fine. Can you help please? Thank you

answered on 09 Dec 2021

1 answer

183 views

Kendo UI Grid Filter - Select All checkbox not working after using filterMenuInit Event

Hi Team,

I am using Kendo UI MVC Grid and trying to override the checkbox style using FontAwesome fonts. I thought of doing it through CSS alone but since we can't select parent selector through CSS I ended up using the filterMenuInit event.

Grid column is configured using:-

.Filterable(f => f.Multi(true).Search(true));

I am adding another label to the rendered checkbox text using the below function:-

 function addCustomLabel(e) {
            var container = e.container;
            var allCheckboxes = $("input[type='checkbox']", container);
            $.each(allCheckboxes, function (id) {
                $(this).attr("id", 'chk' + id).addClass("blueCheckbox");
                var checkbox = $(this)[0];
                console.log(checkbox);
                var parentLabel = $(this).parent('label');
                var labelText = parentLabel.text();
                parentLabel.empty();
                parentLabel.append(checkbox);
                parentLabel.append("<label for='"+ 'chk' + id +"'>" + labelText + "</label>");
            });
        }

It's working as expected i.e. adding an id to checkbox and label with "for" attribute but only the "Select All" checkbox is not working. I am assuming it's because kendo is checking for text "Select All" which is now wrapped inside a label. Could you please suggest a fix for this? Or please let me know if there is any better way to do this.

DropDownList

Filter

Grid

answered on 08 Dec 2021

1 answer

585 views

RadDocument to Html and to RadDocument changes formatting and adds paged layout.

Hi

We have two applications, one is WPF application that reads some RadDocument (see below) and displays it to the screen in non-paged format (layoutMode=flow). The user can then edit it via a RadRichTextEditor, and when they save it, the output is saved in DB.

Then We have a ASP.NET MVC application that does the same thing, but converts it to Html first. But when the converter (seen below) tries to make RadDocument out of it, it adds all kinds of extra styling and changes it to paged instead of flow layoutMode.

This is not what we want, but we cannot figure out how to avoid this behavior.

Here's a concrete example:

These are the two methods we use to convert From and to Html.

private string RadDocToHTMLConverter(string radDoc) {
	RadDocument doc = RadDocumentExtention.ToRadDocument(radDoc);
	var RTB_Provider = new Telerik.Windows.Documents.FormatProviders.OpenXml.Docx.DocxFormatProvider();
	var flow_Provider = new Telerik.Windows.Documents.Flow.FormatProviders.Docx.DocxFormatProvider();
	var doc_bytes = RTB_Provider.Export(doc);
	var flowDocuemnt = flow_Provider.Import(doc_bytes);
	string html = new HtmlFormatProvider().Export(flowDocuemnt);
	return html;
}

private string HTMLtoRadDocStringConverter(string html) {
	var RTB_Provider = new Telerik.Windows.Documents.FormatProviders.OpenXml.Docx.DocxFormatProvider();
	var flow_Provider = new Telerik.Windows.Documents.Flow.FormatProviders.Docx.DocxFormatProvider();
	var flowDocuemnt = new HtmlFormatProvider().Import(html);
	var doc_bytes = flow_Provider.Export(flowDocuemnt);
	var rtbDoc = RTB_Provider.Import(doc_bytes);
	return rtbDoc.ToStr();
}

The problem occurs when the input html string is put through the HtmlFormatProvider.

Example of data to and from DB:

This is what we get FROM our DB that then needs to be converted to html for display on mvc page:

<t:RadDocument xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:t="clr-namespace:Telerik.Windows.Documents.Model;assembly=Telerik.Windows.Documents" xmlns:s="clr-namespace:Telerik.Windows.Documents.Model.Styles;assembly=Telerik.Windows.Documents" xmlns:r="clr-namespace:Telerik.Windows.Documents.Model.Revisions;assembly=Telerik.Windows.Documents" xmlns:n="clr-namespace:Telerik.Windows.Documents.Model.Notes;assembly=Telerik.Windows.Documents" xmlns:th="clr-namespace:Telerik.Windows.Documents.Model.Themes;assembly=Telerik.Windows.Documents" version="1.4" LayoutMode="Flow" LineSpacing="1.14999997615814" LineSpacingType="Auto" ParagraphDefaultSpacingAfter="0" ParagraphDefaultSpacingBefore="0" StyleName="defaultDocumentStyle">
  <t:RadDocument.Captions>
    <t:CaptionDefinition IsDefault="True" IsLinkedToHeading="False" Label="Figure" LinkedHeadingLevel="0" NumberingFormat="Arabic" SeparatorType="Hyphen" />
    <t:CaptionDefinition IsDefault="True" IsLinkedToHeading="False" Label="Table" LinkedHeadingLevel="0" NumberingFormat="Arabic" SeparatorType="Hyphen" />
  </t:RadDocument.Captions>
  <t:RadDocument.ProtectionSettings>
    <t:DocumentProtectionSettings EnableDocumentProtection="False" Enforce="False" HashingAlgorithm="None" HashingSpinCount="0" ProtectionMode="ReadOnly" />
  </t:RadDocument.ProtectionSettings>
  <t:RadDocument.Styles>
    <s:StyleDefinition DisplayName="Document Default Style" IsCustom="False" IsDefault="False" IsPrimary="True" Name="defaultDocumentStyle" Type="Default">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties LineSpacing="1.14999997615814" SpacingAfter="0" />
      </s:StyleDefinition.ParagraphStyle>
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontFamily="Verdana" FontSize="10.6700000762939" FontStyle="Normal" FontWeight="Normal" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Normal" IsCustom="False" IsDefault="True" IsPrimary="True" Name="Normal" Type="Paragraph" UIPriority="0" />
    <s:StyleDefinition DisplayName="Table Normal" IsCustom="False" IsDefault="True" IsPrimary="False" Name="TableNormal" Type="Table" UIPriority="59">
      <s:StyleDefinition.TableStyle>
        <s:TableProperties CellPadding="5,0,5,0">
          <s:TableProperties.TableLook>
            <t:TableLook />
          </s:TableProperties.TableLook>
        </s:TableProperties>
      </s:StyleDefinition.TableStyle>
    </s:StyleDefinition>
  </t:RadDocument.Styles>
  <t:Section>
    <t:Paragraph>
      <t:Span FontWeight="Bold" Text="" />
      <t:Span Text=" " />
    </t:Paragraph>
    <t:Paragraph>
      <t:Paragraph.ParagraphSymbolPropertiesStyle>
        <s:SpanProperties FlowDirection="LeftToRight" />
      </t:Paragraph.ParagraphSymbolPropertiesStyle>
      <t:Span FontWeight="Bold" Text="" />
      <t:Span Text=" " />
    </t:Paragraph>
  </t:Section>
</t:RadDocument>

Then we convert it to html, (this works as expected) and displayed..

Then without editing anything but simply pressing save, taking the result of Kendo.Editor(), we get some html string that we put into the converter and get THIS result:

<t:RadDocument xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:t="clr-namespace:Telerik.Windows.Documents.Model;assembly=Telerik.Windows.Documents" xmlns:s="clr-namespace:Telerik.Windows.Documents.Model.Styles;assembly=Telerik.Windows.Documents" xmlns:r="clr-namespace:Telerik.Windows.Documents.Model.Revisions;assembly=Telerik.Windows.Documents" xmlns:n="clr-namespace:Telerik.Windows.Documents.Model.Notes;assembly=Telerik.Windows.Documents" xmlns:th="clr-namespace:Telerik.Windows.Documents.Model.Themes;assembly=Telerik.Windows.Documents" version="1.4" LayoutMode="Paged" LineSpacing="1" LineSpacingType="Auto" ParagraphDefaultSpacingAfter="0" ParagraphDefaultSpacingBefore="0" StyleName="defaultDocumentStyle">
  <t:RadDocument.Captions>
    <t:CaptionDefinition IsDefault="True" IsLinkedToHeading="False" Label="Figure" LinkedHeadingLevel="0" NumberingFormat="Arabic" SeparatorType="Hyphen" />
    <t:CaptionDefinition IsDefault="True" IsLinkedToHeading="False" Label="Table" LinkedHeadingLevel="0" NumberingFormat="Arabic" SeparatorType="Hyphen" />
  </t:RadDocument.Captions>
  <t:RadDocument.ProtectionSettings>
    <t:DocumentProtectionSettings EnableDocumentProtection="False" Enforce="False" HashingAlgorithm="None" HashingSpinCount="0" ProtectionMode="ReadOnly" />
  </t:RadDocument.ProtectionSettings>
  <t:RadDocument.Styles>
    <s:StyleDefinition DisplayName="Document Default Style" IsCustom="False" IsDefault="False" IsPrimary="True" Name="defaultDocumentStyle" Type="Default">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties FirstLineIndent="0" LeftIndent="0" LineSpacing="1" RightIndent="0" SpacingAfter="0" SpacingBefore="0" TextAlignment="Left" />
      </s:StyleDefinition.ParagraphStyle>
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FlowDirection="LeftToRight" FontFamily="Verdana" FontSize="10.67" FontStyle="Normal" FontWeight="Normal" ForeColor="#FF000000" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition BasedOnName="Normal" DisplayName="Heading 3" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading3Char" Name="Heading3" NextStyleName="Normal" Type="Paragraph" UIPriority="9">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties KeepLines="True" OutlineLevel="3" SpacingAfter="0" SpacingBefore="13.3333330154419" />
      </s:StyleDefinition.ParagraphStyle>
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontWeight="Bold" ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Heading 3 Char" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading3" Name="Heading3Char" Type="Character">
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontWeight="Bold" ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition BasedOnName="Normal" DisplayName="Heading 4" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading4Char" Name="Heading4" NextStyleName="Normal" Type="Paragraph" UIPriority="9">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties KeepLines="True" OutlineLevel="4" SpacingAfter="0" SpacingBefore="13.3333330154419" />
      </s:StyleDefinition.ParagraphStyle>
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontStyle="Italic" FontWeight="Bold" ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Heading 4 Char" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading4" Name="Heading4Char" Type="Character">
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontStyle="Italic" FontWeight="Bold" ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition BasedOnName="Normal" DisplayName="Heading 5" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading5Char" Name="Heading5" NextStyleName="Normal" Type="Paragraph" UIPriority="9">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties KeepLines="True" OutlineLevel="5" SpacingAfter="0" SpacingBefore="13.3333330154419" />
      </s:StyleDefinition.ParagraphStyle>
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Heading 5 Char" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading5" Name="Heading5Char" Type="Character">
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition BasedOnName="Normal" DisplayName="Heading 6" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading6Char" Name="Heading6" NextStyleName="Normal" Type="Paragraph" UIPriority="9">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties KeepLines="True" OutlineLevel="6" SpacingAfter="0" SpacingBefore="13.3333330154419" />
      </s:StyleDefinition.ParagraphStyle>
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontStyle="Italic" ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Heading 6 Char" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading6" Name="Heading6Char" Type="Character">
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontStyle="Italic" ForeColor="#FF4F81BD" ThemeFontFamily="major" ThemeForeColor="accent1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition BasedOnName="Normal" DisplayName="Heading 7" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading7Char" Name="Heading7" NextStyleName="Normal" Type="Paragraph" UIPriority="9">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties KeepLines="True" OutlineLevel="7" SpacingAfter="0" SpacingBefore="13.3333330154419" />
      </s:StyleDefinition.ParagraphStyle>
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontStyle="Italic" ForeColor="#FF000000" ThemeFontFamily="major" ThemeForeColor="text1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Heading 7 Char" IsCustom="False" IsDefault="False" IsPrimary="False" LinkedStyleName="Heading7" Name="Heading7Char" Type="Character">
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontStyle="Italic" ForeColor="#FF000000" ThemeFontFamily="major" ThemeForeColor="text1" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Normal" IsCustom="False" IsDefault="True" IsPrimary="True" Name="Normal" Type="Paragraph" UIPriority="0">
      <s:StyleDefinition.SpanStyle>
        <s:SpanProperties FontSize="16" />
      </s:StyleDefinition.SpanStyle>
    </s:StyleDefinition>
    <s:StyleDefinition BasedOnName="Normal" DisplayName="Normal (Web)" IsCustom="False" IsDefault="False" IsPrimary="False" Name="NormalWeb" Type="Paragraph" UIPriority="99">
      <s:StyleDefinition.ParagraphStyle>
        <s:ParagraphProperties AutomaticSpacingAfter="True" AutomaticSpacingBefore="True" SpacingAfter="6.66666650772095" SpacingBefore="6.66666650772095" />
      </s:StyleDefinition.ParagraphStyle>
    </s:StyleDefinition>
    <s:StyleDefinition DisplayName="Table Normal" IsCustom="False" IsDefault="True" IsPrimary="False" Name="TableNormal" Type="Table" UIPriority="59">
      <s:StyleDefinition.TableStyle>
        <s:TableProperties CellPadding="7,0,7,0">
          <s:TableProperties.TableLook>
            <t:TableLook />
          </s:TableProperties.TableLook>
        </s:TableProperties>
      </s:StyleDefinition.TableStyle>
    </s:StyleDefinition>
  </t:RadDocument.Styles>
  <t:Section>
    <t:Paragraph StyleName="NormalWeb">
      <t:Span FontWeight="Bold" Text="" />
      <t:Span Text=" " />
      <t:Span FontWeight="Normal" Text="" />
    </t:Paragraph>
    <t:Paragraph StyleName="NormalWeb">
      <t:Span FontWeight="Bold" Text="" />
      <t:Span FontWeight="Normal" Text="" />
    </t:Paragraph>
    <t:Paragraph StyleName="NormalWeb">
      <t:Span FontWeight="Normal" Text="" />
    </t:Paragraph>
    <t:Paragraph StyleName="NormalWeb">
      <t:Span FontWeight="Bold" Text="" />
    </t:Paragraph>
  </t:Section>
</t:RadDocument>

There are many issues here.

1. It has created LayoutMode to Paged instead of Flow, which looks wrong in the context we are using this for.

2. It adds all kinds of extra style like "NormalWeb" that we dont want or need. Makes the text bigger and adds margins, paddings and stuff that we dont want.

3. the converter code has barely any options or settings available, and the documentation is lacking at best.

The result we want to get out is the same as the original, so both applications can use it. Afterall we didn't edit anything, just converted it to and from html. Aka From RadDoc -> html -> RadDoc. So it should be the same, before and after.

HOW, can we fix this? If you could also provide examples, that would be great.

Editor

answered on 07 Dec 2021
