Questions on UI for ASP.NET MVC Forum

0 answers

166 views

Grid Filter checkbox with clienttemplate text

I have a ASP.NET MVC Grid

        @(Html.Kendo().Grid<SysViewModel>()
            .Name("grid")
            .Columns(columns =>
            {
                columns.Command(command =>
                {
                    command.Edit()
                    .Text("edit")
                    .UpdateText("update")
                    .CancelText("cancel");
                    command.Destroy().Text("delete");
                }).Width("8rem");

                columns.Bound(p => p.Id)
                    .Title("ID")
                    .Width("5rem");

                columns.Bound(p => p.CompanyId)
                    .Title("Company")
                    .ClientTemplate("#:CompanyName#")
                    .EditorTemplateName("CompanyList")
                    .Filterable(ftb => ftb.Multi(true).CheckAll(true))
                    .Width("15rem");

As you can see the column shows CompanyName, but is bound to CompanyId.

When trying to get filter with checkboxes for company, using:

Filterable(ftb => ftb.Multi(true).CheckAll(true))

I get the checkboxes with CompanyId.

Is there any way to show the CompanyName instead of the CompanyId with the checkbox filter?

Filter

Grid

updated question on 20 Nov 2023

1 answer

204 views

Chart legend markers matching series dash type

I have a kendo chart with two line series which have the same colour, but have different dash types, dotted and solid. On the chart legend, both series appear with solid lines, but I want the legend to have the dash type displayed - dotted or solid.

Using the HTMLHelper, I've tried to configure the legend using some settings within, but it was not clear from the documentation how this could be configured.
https://docs.telerik.com/aspnet-core/api/kendo.mvc.ui.fluent/chartlegenditemsettingsbuilder#chartlegenditemsettingsbuilder

            .Legend(legend =>
            {
                legend.Position(ChartLegendPosition.Top);
                legend.Item(x =>
                {
                    x.Visual("handler");
                });
            })

In the handler I can see there is options.markers.type, which is currently set to "rect", but from this API reference, there does not seem to be a dotted line type
https://docs.telerik.com/kendo-ui/api/javascript/dataviz/ui/chart/configuration/series.markers.type

Chart

answered on 20 Nov 2023

3 answers

454 views

Scheduler - Remove Header Controls and hide heading

Hi,

I have a scheduler controle that I am showing 1 day on but I don;t want it to be a specific day I am using it to assign appointments for Monday, Tuesday, Wednesday, etc reardless of the actual date so I would like to hide the date selector, current date and the heading showing the current date as shown below:

If I could also affect the line height for the times that would be great too as they are a little tall currently.

Any help would be gratefully received.

Thanks,

Ian

Scheduler

updated answer on 17 Nov 2023

2 answers

278 views

Refresh PanelBar with LoadContent

I am using the PanelBar with Items Binding. I am LoadingContent on the Expansion of a Panel. I would like to "refresh" or re load the content after a panel has been expanded, collapsed and then re-expanded. Currently, the panel does not re-load the content.

Is there a way to force the panel to be re-loaded?

PanelBar

answered on 17 Nov 2023

1 answer

164 views

Telerik MVC Grid - Inline Edit: Editable fields in ClientDetailTemplate

Hello,

we want to add editable fields in the template part of a grid.

Our grid looks sth. like this:

@(
    Html.Kendo().Grid(Model.TABLE)
        .Columns(columns =>
        {
            columns.Bound(c => c.PRIO);
            columns.Bound(c => c.COMMENT);
        })
        .DataSource(dataSource => dataSource
            .Ajax()
            ...
            .Model(m =>
            {
                m.Id(p => p.ID);
            })
        )
        .ClientDetailTemplateId("template")
        .Editable(e => e.Mode(GridEditMode.InCell))
)

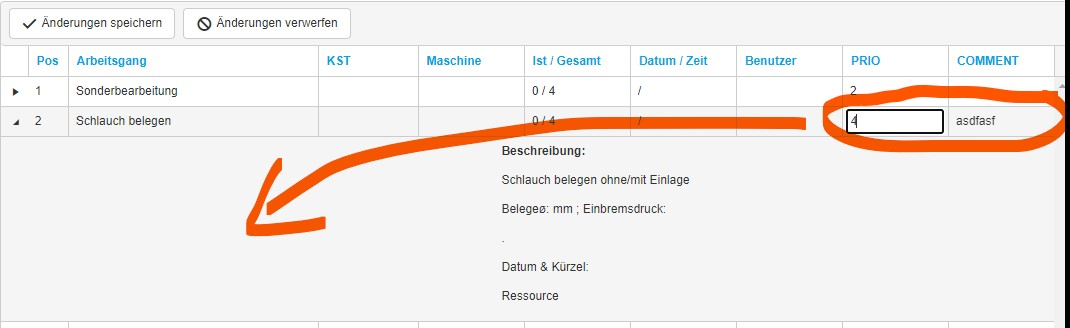

The template does look sth. like this:

<script id="template" type="text/x-kendo-template">
    <div class="col-md-6">
        <p><strong>Beschreibung:</strong></p>
        <p>#: stm_bez1 #</p>
        <p>#: stm_bez2 #</p>
        <p>#: stm_bez3 #</p>
        <p>#: stm_bez4 #</p>
        <p>#: stm_bez5 #</p>
        <p>#: stm_bez6 #</p>
        <p>#: rsc_text1 #</p>
        <p>#: rsc_text2 #</p>
        <p>#: rsc_text3 #</p>
        <p>#: rsc_text4 #</p>
        <p>#: rsc_text5 #</p>
        <p>#: rsc_text6 #</p>
    </div>
    @*
        HOW WOULD WE IMPLEMENT THE EDITABLE FIELDS HERE?
    *@
</script>

How would we go about putting these fields in the template part, and have them editable and propagate to the server on save?:

Grid

answered on 15 Nov 2023

1 answer

205 views

Sort MultiSelectFor data

Hey, I'm trying to sort the data in the MultiSelectFor, so it can be displayed in alphabetical order.

                            @(Html.Kendo().MultiSelectFor(model => model.UserIds)
                                .HtmlAttributes(new { @class = "large" })
                                .Placeholder("Select users ...")
                                .DataValueField("Value")
                                .DataTextField("Text")
                                .AutoClose(false)
                                .DataSource(.DataSource(ds => ds.Read("AvailableUsers", "UserApi"))
                                 )

I've searched for this issue and tried some suggested things but with no success:

                            @(Html.Kendo().MultiSelectFor(model => model.UserIds)
                                .HtmlAttributes(new { @class = "large" })
                                .Placeholder("Select users ...")
                                .DataValueField("Value")
                                .DataTextField("Text")
                                .AutoClose(false)
                                .DataSource(ds => ds.Custom()
                                            .Transport(t => t
                                                .Read(r => r
                                                    .Action("AvailableUsers", "UserApi")
                                                    .Data("{ any: false }")
                                                )
                                            )
                                            .Sort(s => s
                                                .Add("Value")
                                                .Descending()
                                            ))

                            )

 public JsonResult AvailableUsers()
 {
     var userRepo = new UserRepository(ntfy);
    var result = userRepo.GetAll().Select(_ => new SelectListItem
           {
                Text = string.Format("{0} ({1} {2})", _.Username, _.Firstname, _.Lastname),
                Value = _.Id.ToString()
           });
     return this.Json(result, JsonRequestBehavior.AllowGet);
 }

MultiSelect

Sortable

answered on 13 Nov 2023

1 answer

299 views

Context Menu for Specific Cells of Grid

I've seen some examples for displaying a context menu and retrieving the data item of the row that was clicked, but is there a way to also determine which column of the grid was clicked when the context menu is displayed?

Grid

Menu

answered on 10 Nov 2023

1 answer

130 views

Wrong icon being shown for refresh button in grid pager

When I updated to 2023.3.1010, the refresh button in the grid pager shows up as a pause icon. When I examine the page, the span is using k-i-arrow-rotate-cw. Is there a workaround for this?

Grid

answered on 09 Nov 2023

1 answer

521 views

Pager control does not display refresh icon

This problem was introduced when I upgraded to 2023.3.1010

The grid control renders it's pager like this:

<a aria-label="Refresh" class="k-pager-refresh k-link" href="/Home/Paging_Orders" title="Refresh">
     <span class="k-icon k-i-arrow-rotate-cw"></span>
</a>

Note the icon. If it was using FONT icons, it should have the class k-icon-font as well as the other classes.
If it was using SVG icons, it should have an embedded SVG inside it.

But it has neither, so there is nothing displayed at all.

I went to the online demonstration page https://demos.telerik.com/aspnet-mvc/grid/paging. Once you click the checkbox to display the refresh button, it renders the button correctly as an SVG icon.

<span class="k-icon k-svg-icon k-svg-i-arrow-rotate-cw k-button-icon">
      <svg aria-hidden="true" focusable="false" viewBox="0 0 512 512" xmlns="http://www.w3.org/2000/svg"><path d="M480 288c0 123.7-100.3 224-224 224S32 411.7 32 288 132.3 64 256 64V0l160 96-160 96v-64c-88.2 0-160 71.8-160 160s71.8 160 160 160 160-71.8 160-160c0-29.1-7.8-56.4-21.5-80l55.5-32c19.1 32.9 30 71.2 30 112z"></path></svg>
</span>

I do not understand what this demo is doing that my code is not.

Here is how I am creating the grid:

            @(
                Html.Kendo().Grid<FromAspnetFrameworkTemplate.Models.OrderViewModel>()
                    .Name("Grid")
                    .Columns(
                        columns =>
                        {
                            columns.Bound(o => o.OrderID);
                            columns.Bound(o => o.ContactName);
                            columns.Bound(o => o.ShipAddress);
                            columns.Bound(o => o.OrderDate).Format("{0:d}");
                            columns.Bound(o => o.ShipCountry);
                        }
                    ).Pageable(
                        pager => pager.PageSizes(new[] { 10, 20, 30 }).Refresh(true).Responsive(false)
                    ).DataSource(dataSource => dataSource
                          .Ajax()
                              .Read(read => read.Action("Paging_Orders", "Home"))
                      )
            )

I am using the following Nuget packages:
Telerik.UI.for.AspNet.Mvc5, 2023.3.1010
Telerik.FontIcons, 2.0.0
Telerik.SvgIcons, 2.0.0
I am including the styles and scripts like so:

<link href="https://kendo.cdn.telerik.com/themes/7.0.1/default/default-main.css" rel="stylesheet" />
@Scripts.Render("~/bundles/jquery")
@Scripts.Render("~/bundles/bootstrap")
<script src="~/Scripts/kendo/2023.3.1010/kendo.all.min.js"></script>
<script src="~/Scripts/kendo/2023.3.1010/kendo.aspnetmvc.min.js"></script>
