Are line chart's editable / dragable?

[George]

Hi,

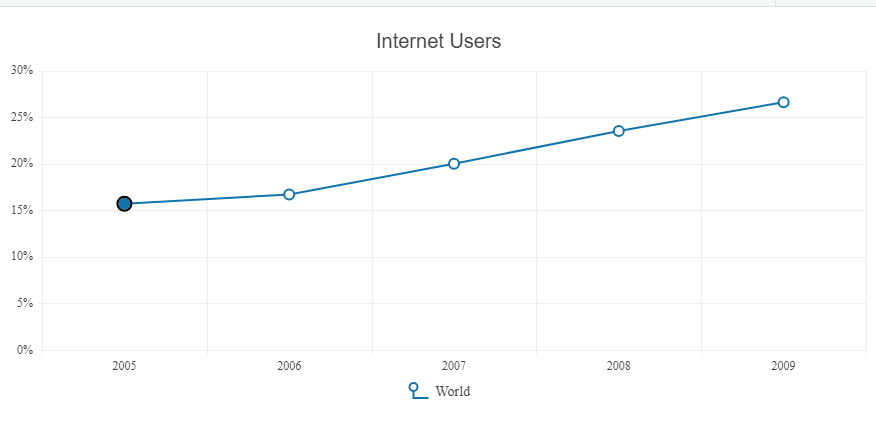

Maybe this is a misunderstanding on my part. I am trying to create a demo project using the kendoChart, specifically a line chart with points.



I would like to be able to drag the points and  thus change the values, buuut it seems like I get an error when I try to do drag a point up or down:

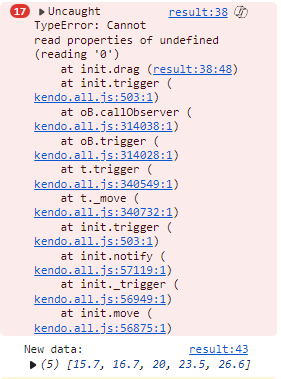

But when I try to drag the points on line I get this error:

And the value doesn't change either.

Here is a kendo dojo example:

Drag Line Chart Example | Kendo UI Dojo

I eventually want to create a line chart that is bound to a dataSource and shares this with a grid and I can see the changes made by manipulating the graph points in the cells of the grid. Am I going in the right direction?

Thanks!

George

[Martin]

Hello, George,

By default, the point dragging in the Kendo Chart is not supported out-of-the-box. In the drag event handler from the Dojo example, some of the variables (such as index and value) are undefined which is also raising the error.

There's a SO thread that discusses the same topic, perhaps it will provide some valuable insight. We also have an open feature request where you can cast your vote and provide some additional comments about the functionality.

As for the shared dataSource, if the requirement is to reflect changes are made in the Chart in the Grid as well, that would depend on how you would implement the dragging part. The other way around (Grid changes reflected in the Chart) should be easy to achieve.

Let me know if you have any further questions.

Regards,
Martin
Progress Telerik
