Appointment stretch to fill day in MonthView.

[Brandon]

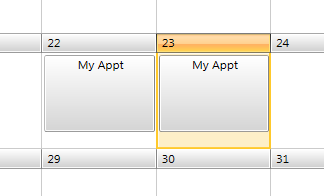

I am using the RadScheduleView with only the MonthViewDefinition.  In my application, there is no more than a single appointment per day.  I want the appointment to stretch vertically to fill the cell for that day.  I have tried increasing the MinAppointmentHeight property, but anything over 83 causes an expand button to be shown, and the appointment is not visible until I click the expand button.  Also, the bottom portion of the day is taken up by the expand button, when I want to use the appointment for the entire area.  I've attached several screenshots showing the current behavior, and an edited screenshow showing the desired behavior.

[Kalin]

Hi Brandon,

Thank you for contacting us.

This can be achieved by modifying modifying the MonthView GroupHeaders' bottom padding. You would have to modify the default MonthViewBottomLevelWeekGroupStyle through the RadScheduleView GroupHeaderStyleSelector. For more details please check the following help article:
https://docs.telerik.com/devtools/wpf/controls/radscheduleview/styles-and-templates/styling-groupheaders

I have prepared and attached a sample project demonstrating the exact approach.

Hope this helps.

Regards,
Kalin
Progress Telerik

[Brandon]

Kalin,

That worked, thanks!

Brandon
