Align child columns with header column

[Jarne]

I have a grid with header and child rows. Some columns are the same in the child rows but not everything.

How can I align the columns properly that the header and the child are below each other?

vb: colum1 column2 column3 column4

    column1                 column3

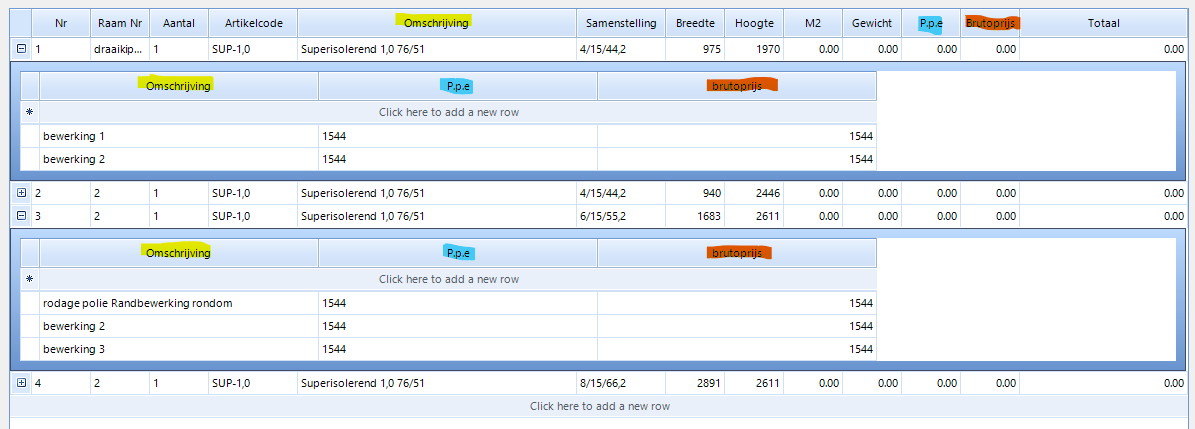

Like in the screenshot. I have to align the yellow, blue and red columns. But the other columns don't have to be visible in the child.



[Nadya | Tech Support Engineer]

Hello, Jarne,

To achieve your goal, it is necessary to set Width, MaxWidth and MinWidth of the certain hierarchy level in form's constructor and thus, adjust the column's width from the master template with those from the second template. It is up to you to consider the exact width of each other and place them in such a way to appear one above the other.

For example:

    grid.MasterTemplate.Columns["Name"].Width = 150;
    grid.MasterTemplate.Columns["Name"].MaxWidth = 150;
    grid.MasterTemplate.Columns["Name"].MinWidth = 150;

    grid.Templates[0].Columns["Name"].Width = 131;
    grid.Templates[0].Columns["Name"].MaxWidth = 131;
    grid.Templates[0].Columns["Name"].MinWidth = 131;



I hope this information is useful. If you have other questions, please let me know.

Regards,
Nadya | Tech Support Engineer
Progress Telerik
