Hi All

I have a simple question regarding hierarchical data.

I have one table which I return as a data reader.

id (int)    desc (varchar)    parentid (int)
1            desc 1                NULL
2            desc 2                1
3            desc 3                2
4            desc 4                NULL
5            desc 5                4

This table is self-referencing, i.e. linked list

I know the tree view can handle this relationship automatically

how can I implement this into the grid? can anyone give me a simple example?

I simply tried

this.radGridView1.Relations.AddSelfReference(this.radGridView1.MasterTemplate, "id", "parentid");


but it doesn't show any results in the table.

Thanks
Peter


2 Answers, 1 is accepted

Sort by
0
Peter
Top achievements
Rank 1
answered on 27 Jul 2013, 02:37 PM
Update:

got it to display by setting the following:


                radGridView1.MasterTemplate.AutoGenerateColumns = true;

I guess I cannot manually add columns as per the code below when doing the self reference?

                this.radGridView1.Columns.Add(new GridViewTextBoxColumn("My ID"));
                this.radGridView1.Columns["My ID"].FieldName = "id";

Or can I do it a different way?

0
Dess | Tech Support Engineer, Principal
Telerik team
answered on 31 Jul 2013, 04:59 PM
Hello Peter,

Thank you for contacting Telerik Support.

You have found out the correct solution for displaying the data. For a detailed example about Self-Referencing Hierarchy in RadGridView please have a look at the following help article

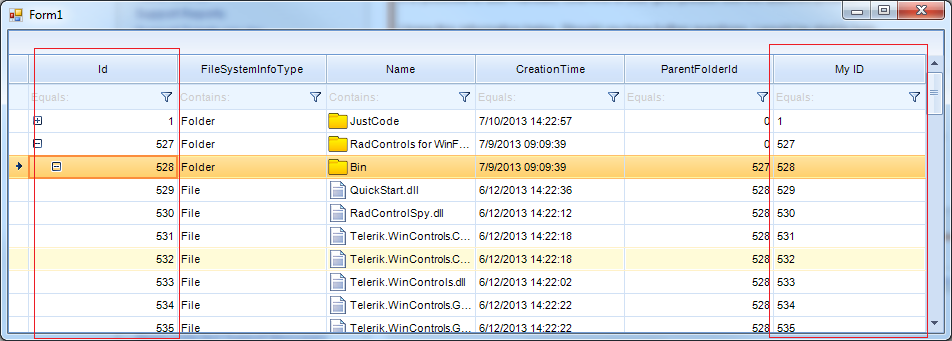

It is possible to add manually columns to your grid (please see the attached picture):
this.radGridView1.Relations.AddSelfReference(this.radGridView1.MasterTemplate, "Id", "ParentFolderId");
this.radGridView1.DataSource = list;

this.radGridView1.Columns.Add(new GridViewTextBoxColumn("My ID"));
this.radGridView1.Columns["My ID"].FieldName = "Id";

I hope this information helps. Should you have further questions, I would be glad to help.

Regards,
Desislava
Telerik
