Adding a new RadGridView

3 Answers 86 Views
GridView
This is a migrated thread and some comments may be shown as answers.
Curtis
Top achievements
Rank 2
Curtis asked on 04 Feb 2011, 04:10 PM
I'm having problems when I try to create a new RadGridView.  From the toolbox, I select RadGridView and then draw a box on the form.  When I do this it adds a reference to the control at the buttom, however it's not actually putting the control on the screen.  I checked to make sure that it was visible and the back color was different.  This problem has only started happening to me today, before today I could successfully add a RadGridView to my forms.

3 Answers, 1 is accepted

Sort by
0
Richard Slade
Top achievements
Rank 2
answered on 04 Feb 2011, 05:20 PM
Hello,

I haven't come across this issue before. Please can you try it in a new project and let me know if it does the same there. If it doesn't, then I would suggest re-starting Visual Studio.
Let me know how you get on though
Richard
0
Curtis
Top achievements
Rank 2
answered on 07 Feb 2011, 10:51 PM

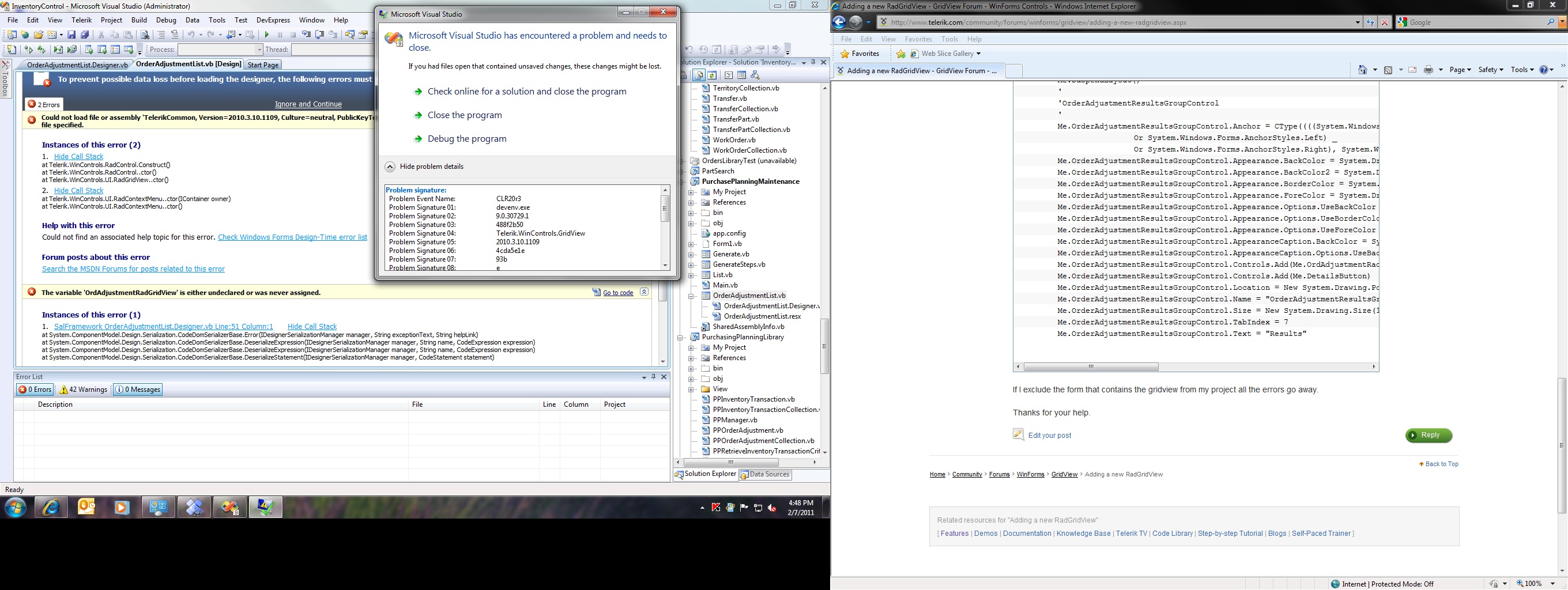

I opened a new project and the problem does not occur there. If I just create a new form in the current project it contiues to happen.  Also since my last post, when I open my project now I get the followings errors:

To prevent possible data loss before loading the designer, the following errors must be resolved:

(2) Could not load file or assembly 'TelerikCommon, Version=2010.3.10.1109, Culture=neutral, PublicKeyToken=5bb2a467cbec794e' or one of its dependencies. The system cannot find the file specified.


Instances of this error (2)
1.
at Telerik.WinControls.RadControl.Construct()
at Telerik.WinControls.RadControl..ctor()
at Telerik.WinControls.UI.RadGridView..ctor()
2.
at Telerik.WinControls.UI.RadContextMenu..ctor(IContainer owner)
at Telerik.WinControls.UI.RadContextMenu..ctor()

(1) The variable 'OrdAdjustmentRadGridView' is either undeclared or was never assigned.

Instances of this error (1)
1.
at System.ComponentModel.Design.Serialization.CodeDomSerializerBase.Error(IDesignerSerializationManager manager, String exceptionText, String helpLink)
at System.ComponentModel.Design.Serialization.CodeDomSerializerBase.DeserializeExpression(IDesignerSerializationManager manager, String name, CodeExpression expression)
at System.ComponentModel.Design.Serialization.CodeDomSerializerBase.DeserializeExpression(IDesignerSerializationManager manager, String name, CodeExpression expression)
at System.ComponentModel.Design.Serialization.CodeDomSerializerBase.DeserializeStatement(IDesignerSerializationManager manager, CodeStatement statement)
Here is part of the code that corresponds to the second error...
Private Sub InitializeComponent()
       Me.components = New System.ComponentModel.Container
       Me.OrderAdjustmentResultsGroupControl = New DevExpress.XtraEditors.GroupControl
       Me.OrdAdjustmentRadGridView = New Telerik.WinControls.UI.RadGridView
       Me.DetailsButton = New DevExpress.XtraEditors.SimpleButton
       Me.SaveButton = New DevExpress.XtraEditors.SimpleButton
       Me.CloseButton = New DevExpress.XtraEditors.SimpleButton
       Me.DefaultLookAndFeel1 = New DevExpress.LookAndFeel.DefaultLookAndFeel(Me.components)
       Me.ResultsRadContextMenu = New Telerik.WinControls.UI.RadContextMenu(Me.components)
       Me.RadThemeManager1 = New Telerik.WinControls.RadThemeManager
       CType(Me.OrderAdjustmentResultsGroupControl, System.ComponentModel.ISupportInitialize).BeginInit()
       Me.OrderAdjustmentResultsGroupControl.SuspendLayout()
       CType(Me.OrdAdjustmentRadGridView, System.ComponentModel.ISupportInitialize).BeginInit()
       CType(Me.OrdAdjustmentRadGridView.MasterTemplate, System.ComponentModel.ISupportInitialize).BeginInit()
       Me.SuspendLayout()
       '
       'OrderAdjustmentResultsGroupControl
       '
       Me.OrderAdjustmentResultsGroupControl.Anchor = CType((((System.Windows.Forms.AnchorStyles.Top Or System.Windows.Forms.AnchorStyles.Bottom) _
                   Or System.Windows.Forms.AnchorStyles.Left) _
                   Or System.Windows.Forms.AnchorStyles.Right), System.Windows.Forms.AnchorStyles)
       Me.OrderAdjustmentResultsGroupControl.Appearance.BackColor = System.Drawing.Color.FromArgb(CType(CType(227, Byte), Integer), CType(CType(241, Byte), Integer), CType(CType(254, Byte), Integer))
       Me.OrderAdjustmentResultsGroupControl.Appearance.BackColor2 = System.Drawing.Color.White
       Me.OrderAdjustmentResultsGroupControl.Appearance.BorderColor = System.Drawing.Color.White
       Me.OrderAdjustmentResultsGroupControl.Appearance.ForeColor = System.Drawing.Color.Black
       Me.OrderAdjustmentResultsGroupControl.Appearance.Options.UseBackColor = True
       Me.OrderAdjustmentResultsGroupControl.Appearance.Options.UseBorderColor = True
       Me.OrderAdjustmentResultsGroupControl.Appearance.Options.UseForeColor = True
       Me.OrderAdjustmentResultsGroupControl.AppearanceCaption.BackColor = System.Drawing.Color.White
       Me.OrderAdjustmentResultsGroupControl.AppearanceCaption.Options.UseBackColor = True
       Me.OrderAdjustmentResultsGroupControl.Controls.Add(Me.OrdAdjustmentRadGridView)
       Me.OrderAdjustmentResultsGroupControl.Controls.Add(Me.DetailsButton)
       Me.OrderAdjustmentResultsGroupControl.Location = New System.Drawing.Point(13, 12)
       Me.OrderAdjustmentResultsGroupControl.Name = "OrderAdjustmentResultsGroupControl"
       Me.OrderAdjustmentResultsGroupControl.Size = New System.Drawing.Size(1039, 467)
       Me.OrderAdjustmentResultsGroupControl.TabIndex = 7
       Me.OrderAdjustmentResultsGroupControl.Text = "Results"


If I exclude the form that contains the gridview from my project all the errors go away.

Thanks for your help.
0
Accepted
Richard Slade
Top achievements
Rank 2
answered on 08 Feb 2011, 12:36 AM
Hello,

What version of the controls are you actually using? I suspect what has happened is that you have upgraded to a newer version, but your project is still using the old version of the assemblies which is why you are getting this error. I'd suggest removing and re-adding the references to the Telerik assemblies or running it through the Telerik Project Upgrade Utility

Hope that helps but let me know if you have further issues
Richard
