Add extra button to the SearchRow in GridView

[Sameh]

Hi,



Is there any way to add new control (radbutton for instance) in the SearchRow? next to the gear button for example?



Many thanks

Sameh.

[Hristo]

Hello Sameh,

Thank you for writing.

You can create a custom cell and use it with the search row, similarly as demonstrated here: https://docs.telerik.com/devtools/winforms/gridview/cells/creating-custom-cells. Please check my code snippet below:

public partial class Form1 : Form
{
    public Form1()
    {
        InitializeComponent();

        this.radGridView1.CreateCell += radGridView1_CreateCell;

        this.radGridView1.DataSource = this.GetData();
        this.radGridView1.AutoSizeColumnsMode = Telerik.WinControls.UI.GridViewAutoSizeColumnsMode.Fill;
        this.radGridView1.AllowSearchRow = true;
    }

    private void radGridView1_CreateCell(object sender, GridViewCreateCellEventArgs e)
    {
        if (e.CellType == typeof(GridSearchCellElement))
        {
            e.CellType = typeof(MyGridSearchCellElement);
        }
    }

    private DataTable GetData()
    {
        DataTable dt = new DataTable();
        dt.Columns.Add("Id", typeof(int));
        dt.Columns.Add("Name", typeof(string));
        dt.Columns.Add("Date", typeof(DateTime));
        dt.Columns.Add("Bool", typeof(bool));
        dt.Columns.Add("Description", typeof(string));
        for (int i = 0; i < 2000; i++)
        {
            for (int j = 0; j < 5; j++)
            {
                dt.Rows.Add(i, "Name " + j, DateTime.Now.AddDays(i), i % 2 == 0 ? true : false, "Description " + i);
            }
        }

        return dt;
    }
}

public class MyGridSearchCellElement : GridSearchCellElement
{
    private RadButtonElement button;

    public MyGridSearchCellElement(GridViewColumn column, GridRowElement row)
        : base(column, row)
    { }

    protected override void CreateChildElements()
    {
        base.CreateChildElements();

        this.button = new RadButtonElement();
        this.button.Text = "Button!";
        this.Children.Add(this.button);
    }

    protected override SizeF ArrangeOverride(SizeF finalSize)
    {
        SizeF s = base.ArrangeOverride(finalSize);
        RectangleF rect = new RectangleF(this.OptionsButton.BoundingRectangle.X + this.OptionsButton.BoundingRectangle.Width + this.FindNextButton.Margin.Right + this.OptionsButton.Margin.Left, this.OptionsButton.BoundingRectangle.Y, this.button.DesiredSize.Width, this.OptionsButton.BoundingRectangle.Height);
        this.button.Arrange(rect);

        return s;
    }
}

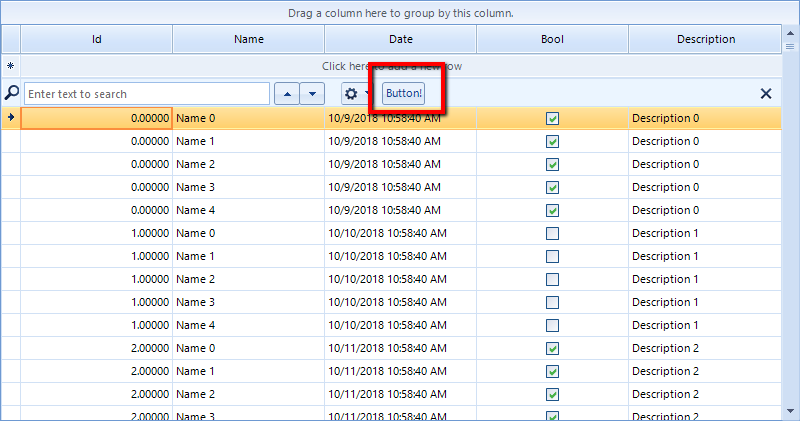

I am also attaching a screenshot showing the result on my end. I hope this will help.

Regards,
Hristo
Progress Telerik

[Devel]

Hello, can be this done from XAML only to have support for bindings? If not can it be created as feature request?

Thanks.

[Dinko | Tech Support Engineer]

The scenario which is discussed in this thread is related to RadGridView for WinForms. You can check the Telerik UI for WPF Forum for a similar thread. If such is not found, you can create a new forum thread with your questions inside.
