Add commandbar class through custom class

[harshal]

Hi,

Currently, I am using DontNetMagic library.. Now i want to switch to Telerik WinForms.

My requirement is to add a field (as highlighted in attached image) by inheriting any of CommandBar class in my own class.

The text (20%) will be updated as and when performs any zoom operation.

What is the recommended way to achieve the desired functionality?



Thanks,

Harshal

[Dimitar]

Hello Harshal,

Here is how you can create such item and add it to the command bar:

public partial class RadForm1 : Telerik.WinControls.UI.RadForm
{
    public RadForm1()
    {
        InitializeComponent();
        commandBarStripElement1.Items.Add(new MyZoomItem());

    }
}
public class MyZoomItem : RadCommandBarBaseItem
{
   public MyZoomItem()
    {
        this.DrawBorder = true;
        this.DrawText = true;
        this.DrawFill = true;
        this.BorderBoxStyle = Telerik.WinControls.BorderBoxStyle.SingleBorder;
        this.BorderGradientStyle = Telerik.WinControls.GradientStyles.Solid;
        this.BorderColor = Color.Black;
        this.Font = new Font("Segoe UI", 11, FontStyle.Bold);
        this.Text = "20%";
        this.BackColor = Color.LightGreen;
        this.GradientStyle = Telerik.WinControls.GradientStyles.Solid;
        this.Padding = new Padding(15, 0, 15, 0);
    }
}

The attached image shows the result on my side.

I hope this will be useful. Let me know if you have additional questions.

Regards,
Dimitar
Telerik by Progress

[harshal]

Thanks Dimitar..

I changed my approach & simply used CommandBarLabel to display my text..

Moving forward, I am facing a new issue; when i click on any on commandbarbutton, it is not shown as selected or is not highlighted...

Can you please suggest for this?

Thanks,

Harshal

[harshal]

Hi,

I am dynamically adding DocumentWindow, & CommandBarButton with respect to windows; But the shortcut key for few CommandBarButton are same in different windows (Control + Shift + I)

Issue here is, the shortcut keys work only for the first screen, and not for the second screen.

Please suggest a workaround for this.



Thanks,

Harshal.

[Dimitar]

Hi Harshal,

Perhaps the images are covering the entire button and this is why there is no selection. Could you please try this by adding a blank new item and see if there are selection styles?

As to the shortcuts at hand, you can create a global shortcut and manually handle the key press, depending on the active window/control: Assigning Global RadShortcuts.

I hope this will be useful

Regards,
Dimitar
Telerik by Progress

[harshal]

Hi Dimitar,

I tried your suggestion as well as setting MinSize = New Size(50, 10) for commandbarbutton, but no success.

Any other workaround?

[harshal]

On mouse hover the respective button is highlighted, but once click is performed it does not maintain the selection.

Please suggest.

[Dimitar]

Hello Harshal,

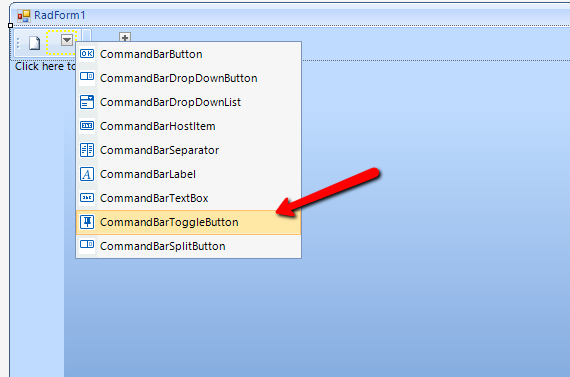

You need to use toggle buttons for this, not regular ones (see attached image).

Let me know how this works for you.

Regards,
Dimitar
Telerik by Progress

[harshal]

Hi Dimitar,

I tried with toggle buttons, but these are not suitable for my requirements.. I just need to highlight the clicked command bar button (refer attached image)

Please suggest.



Thanks,

Harshal

[Dimitar]

Hi Harshal,

By default, the CommandBarButton does not support focus. What you can do is manually add a focus primitive to it. Here is an example for this:

public class MyButton : CommandBarButton
{
    FocusPrimitive focusPrimitive;
    protected override void CreateChildElements()
    {
        base.CreateChildElements();
        var border = new BorderPrimitive();
        focusPrimitive = new FocusPrimitive(border);
        focusPrimitive.GradientStyle = Telerik.WinControls.GradientStyles.Solid;
        focusPrimitive.ForeColor = Color.Orange;
        this.Children.Add(focusPrimitive);
        focusPrimitive.Visibility = ElementVisibility.Hidden;

    }

    protected override void OnPropertyChanged(RadPropertyChangedEventArgs e)
    {
        base.OnPropertyChanged(e);
        if (e.Property == RadElement.IsFocusedProperty)
        {
            if ((bool)this.GetValue(RadElement.IsFocusedProperty))
            {
                focusPrimitive.Visibility = ElementVisibility.Visible;
            }
            else
            {
                focusPrimitive.Visibility = ElementVisibility.Hidden;
            }

        }
    }

    protected override Type ThemeEffectiveType
    {
        get
        {
            return typeof(CommandBarButton);
        }
    }
}

I hope this will be useful.

Regards,
Dimitar
Telerik by Progress
