Add button to Image editor side bar?

[Rooster]

Hello Telerik Support Team,

I'm trying to add a custom button for the RadImageEditor for my application. When I try to do so using

RadMenuItem cst = new RadMenuItem("Item");

radImageEditor1.ImageEditorElement.CommandsElement.CommandsStackEleemnt.Children.Add(cst);

This does get me the button I need, but I am unable to extend add an event handler to this button.

However If I were to create a button and add it to the element by extending RadMenuItem to override the onclick event within a custom class like so:

CustomMenuItem custom = new CustomMenuItem("CustomMenuItem");

radImageEditor1.ImageEditorEleemnt.CommandsElement.CommandsStackElement.Children.Add(custom);

This will get me a flat generic box the form in which I am unable to modify the style of the button to fit with the rest of the form, however this approach will allow me to define my event handler.

How can I go about it to create a proper button within the image editor side bar (to clarify the side bar below the command elements, and be able to setup the onclick to run the function needed as intended?

Thanks,

[Nadya | Tech Support Engineer]

Hello, Joey,

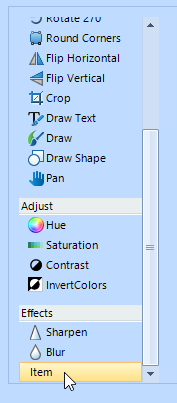

If I understand your requirement correctly you would like to add a new item to the RadImageEditor control and you would like to handle the click event of this item. If this is what you want, I would like to note that RadMenuItem has a Click event which you can use:

 public RadForm1()
 {
     InitializeComponent();

     RadMenuItem cst = new RadMenuItem("Item");
     cst.Click += this.Cst_Click;
     radImageEditor1.ImageEditorElement.CommandsElement.CommandsStackElement.Children.Add(cst);
 }
 private void Cst_Click(object sender, EventArgs e)
 {
     //TO DO
 }

I hope this helps. Should you have other questions do not hesitate to write back.

Regards,
Nadya
Progress Telerik
