Add a custom palette with its own name in a Telerik RadColorPicker

[Serghei]

Hello, I want to add a custom palette with its own names and colors in WPF. But seems like I can only work with built-in MainPalette, HeaderPalette, AdditionalContent

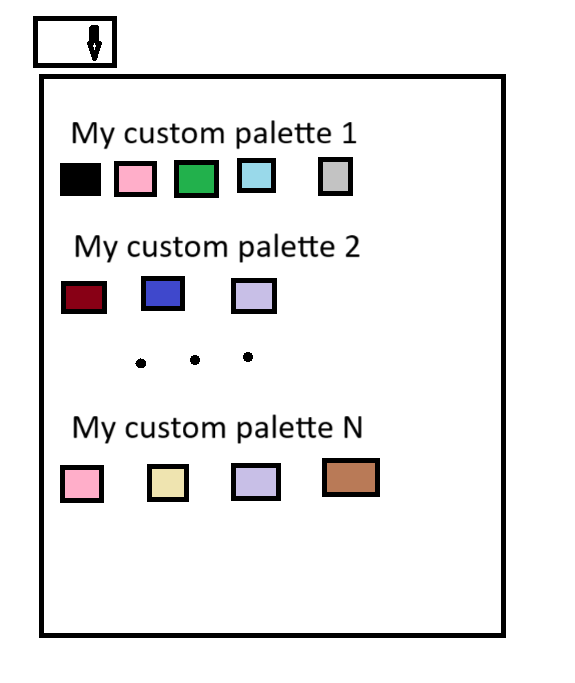

The image below shows my intention. I want to add not only 2 of them, but as many as I want.

[Stenly]

Hello Serghei,

To achieve this requirement, you could use the AddColorPaletteViews SDK example, which showcases how to display custom palettes. It can be found in our GitHub repository:

xaml-sdk/ColorPicker/AddColorPaletteViews at master · telerik/xaml-sdk

To hide the main, header, and standard palettes, as well as other elements, you could subscribe to the DropDownOpened event of RadColorPicker and retrieve them via the ChildrenOfType extension method as shown below:

private void colorPicker_DropDownOpened(object sender, Telerik.Windows.RadRoutedEventArgs e)
{
    Popup popUp = colorPicker.ChildrenOfType<Popup>().FirstOrDefault();

    RadColorPaletteView mainPalette = popUp.Child.ChildrenOfType<RadColorPaletteView>().FirstOrDefault(x => x.Name == "MainPalette");
    mainPalette.Visibility = Visibility.Collapsed;

    RadColorPaletteView headerPalette = popUp.Child.ChildrenOfType<RadColorPaletteView>().FirstOrDefault(x => x.Name == "HeaderPalette");
    headerPalette.Visibility = Visibility.Collapsed;

    RadColorPaletteView standardPalette = popUp.Child.ChildrenOfType<RadColorPaletteView>().FirstOrDefault(x => x.Name == "StandartPalette");
    standardPalette.Visibility = Visibility.Collapsed;

    TextBlock mainPaletteHeader = popUp.Child.ChildrenOfType<TextBlock>().FirstOrDefault(x => x.Name == "mainPaletteHeader");
    mainPaletteHeader.Visibility = Visibility.Collapsed;

    Border standardPaletteBorder = popUp.Child.ChildrenOfType<Border>().FirstOrDefault(x => x.Name == "StandardPaletteBorder");
    standardPaletteBorder.Visibility = Visibility.Collapsed;
}

The produced result when using the suggested SDK example and the above suggestion is as follows:

With this being said, could you give these suggestions a try?

Regards,
Stenly
Progress Telerik

[Serghei]

Hello Stenly. Thank you so much for the repsonse. Let me try then I'll provide the feedback

[Stenly]

Hello Serghei,

Please take as much time as needed to test this suggestion.

[Serghei]

Hello, I've tried. But it didn't work out for me, because the approach you suggested uses <telerik:RadColorPicker.AdditionalContent> AdditionalContent field, however, I need this field as well.  Maybe an onther approach can be applied?

Anyway, I've solved my task by adding all my custom colors to the Main palette. That is not critical for me to split the colors, but would be nice.

[Stenly]

Hello Serghei,

The default color palettes are defined in the default ControlTemplate of the RadColorSelector element, which is present in the default ControlTemplate of the RadColorPicker control.

With this in mind, an alternative approach would be to extract the default ControlTemplate of both of these elements and customize them to follow a similar approach to the AdditionalContent property. Unfortunately, we do not have such an example, however, the following article showcases how to locate and extract our default ControlTemplates in order to introduce such customizations:

Editing Control Templates - Telerik UI for WPF

[Serghei]

Thnak you for your help, anyway, Stenly.
