Ability to set CanShrink and/or CanGrow in Report sections

14 Answers 258 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
NiccoMlt
Top achievements
Rank 1
Veteran
NiccoMlt asked on 14 Feb 2021, 10:12 PM

Hi,

I cannot understand how to programmatically enable dynamic shrinking and/or growing of sections on programmatically generated report objects.

In particular, from documentation it seems like that at least CanShrink property should be provided, but I cannot find it from code. What am I missing?

Alternatively, is there a way to make PageHeaderSection, PageFooterSection and DetailSection dynamically resize their height accordingly to the height of the visible items inside them?

Thanks in advance

14 Answers, 1 is accepted

Sort by
0
Neli
Telerik team
answered on 18 Feb 2021, 08:23 AM

Hi NiccoMlt,

Basically, the detail section will grow based on the records in the datasource. The page header and footer can not grow or shrink and therefore can not accommodate for content expanding outside its section area.  For example, if a textbox has a longer string than it can fit, and the CanGrow property is set to True, the textbox will increase in size to make room for the entire string. Then, if the textbox expands below the edges of the section, either the string will be cut off, or disappear entirely. You can also check the Report Structure article and TextBox Disappears KB article.

Please, consider sending us the problematic report, so we can inspect it locally.

Regards,
Neli
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
NiccoMlt
Top achievements
Rank 1
Veteran
answered on 18 Feb 2021, 08:57 AM

Hi Neli, thank you for your answer.

I understand. I agree with you that the problem is related to PageHeader and PageFooter not being able to grow or shrink, differently from what DetailSection can do; in particular TextBox Disappears KB article describes what I am experiencing accurately.

Also, what you linked me probably contains the solution to my problem: "The Height of the section may be changed runtime with Bindings. Our recommendation is to set the default height of the section to the maximal expected one. Then, you may reduce the height of each Page section with a proper Binding.". I will try and report you back.

If needed, I will certainly send you a sample report to check up, but as I answered you here it requires some work, because the converter that I implemented generates reports that heavily depend on user-defined functions, and also the data source is only built and attached at runtime from a sequence of externally-generated data, so it needs to be adapted.

Thank you very much for your help, I'm sorry that I missed those parts when searching in the documentation.
0
Neli
Telerik team
answered on 23 Feb 2021, 09:05 AM

Hello NiccoMlt,

I am glad that we found the reason for the behavior. Please, do not hesitate to contact us again if you need further asssistance.

Regards,
Neli
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
NiccoMlt
Top achievements
Rank 1
Veteran
answered on 25 Feb 2021, 11:11 AM

Hi Neli, thanks for your time.

I tried binding the Height property with an user-defined expression that resolves the actual height, but it seems not to be applied.

The expression is declared like so:

[Function(Category = "Telerik functions for ParSt reports", Namespace = "PARST.Telerik", Description = "Compute the actual height of a section")]
public static Unit ComputeHeight(Telerik.Reporting.ReportSectionBase thisItem) =>
    thisItem.ResolveActualHeight();

And it uses the following extension method:

internal static Unit ResolveActualHeight(this ReportItemBase item)
{
    var childrenHeight = item
        .Items
        .Where(child => child != item)
        .Select(ResolveActualHeight)
        .Aggregate(Unit.Zero, Unit.Add);

    var currentHeight = item switch
    {
        ReportItem { Height: var height } => height,
        ReportSectionBase { Height: var height } => height,
        Report { PageSettings: { PaperSize: { Height: var height } } } => height,
         _ => throw new ArgumentOutOfRangeException(nameof(item), $"Unexpected type {item.GetType()}: {item}"),
    };

        return Unit.Min(currentHeight, childrenHeight);
}

I adapted my report converter to generate TRDX reports which embed the data source as JSON array of objects and it should not reference user-defined expressions besides the above.

I'd like to leave a sample for you to check, but the forum doesn't let me attach a TRDX file, so I put it in a GitHub Gist:

https://gist.github.com/NiccoMlt/0a2d8c7e76fc4b90fac6aa3a91f1d897

The content may be messed up (the converter is not fully functional yet), please focus only on the HEAD and FOOT sections.

What do you think I am doing wrong?

Thank you in advance.

0
NiccoMlt
Top achievements
Rank 1
Veteran
answered on 28 Feb 2021, 04:08 PM

Hi Neli,

this weekend I did some deep search in this forum about growing/shrinking sections.

I found out that Group Sections may be a solution to generate headers and footers with the ability to shrink according to their content, so I updated my converter to generate a report composed by a GroupHeaderSection, a DetailSection and a GroupFooterSection, all of them with the CanShrink property enabled, and a (maximum) Height calculated according to the total height of the items put inside each section. I also disabled the binding with the Height property.

The problem is, the CanShrink property seems not to be working as I expected: neither the GroupSections nor the PageSection shrink when rendered, at least in the ReportDesigner preview.

I uploaded the new TRDX here for you to check: https://gist.github.com/NiccoMlt/042785d8490be7b176507be9af60bfe8

What do you think?

Thank you again in advance

0
Neli
Telerik team
answered on 02 Mar 2021, 12:59 PM

Hi NiccoMlt,

Thank you for the provided report.

Basically, the CanShrink functionality will work when the Visible property of an item in the section is set to False. For example, if you set the Visible property of a textbox, then the height of the group header section will be decreased.

I would recommend decreasing the height of the group header section which will be increased if more space is required.

Regards,
Neli
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
NiccoMlt
Top achievements
Rank 1
Veteran
answered on 03 Mar 2021, 04:33 PM

Ok thanks, good to know that the behavior of CanShrink is not what I understood.

The problem is, even setting the height of the rows to 1pica (which is my expected minimum, there is no need to go lower) and thus relying on the capability to grow of the sections, the sections not always grow enough.

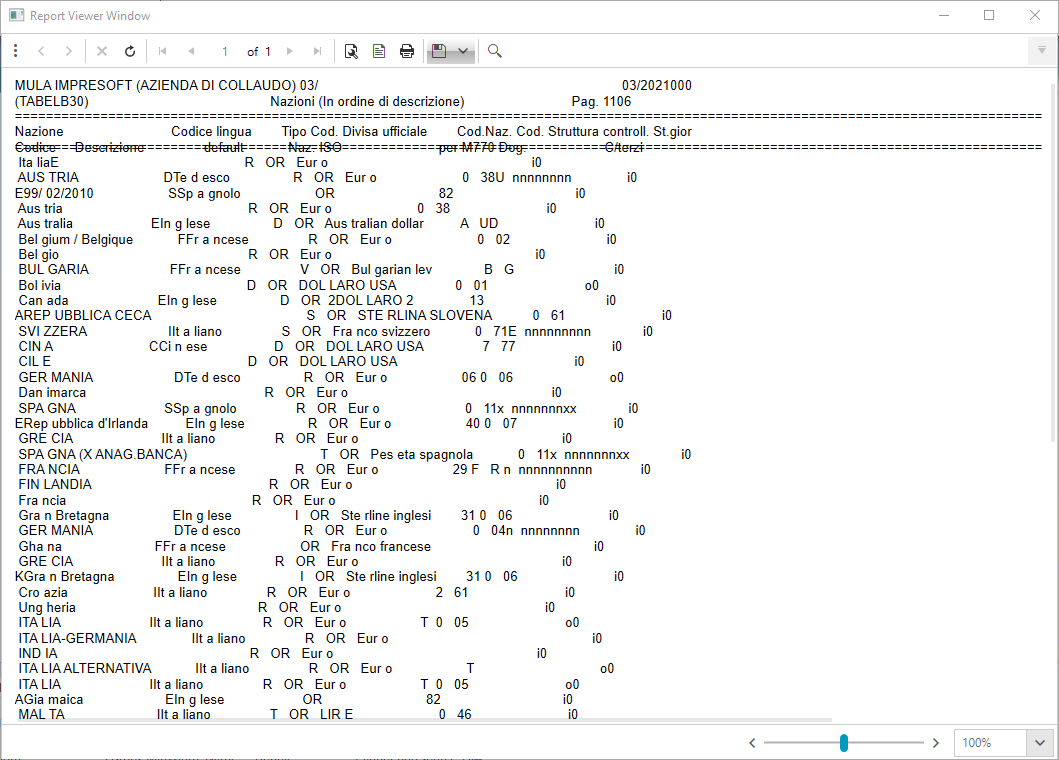

See for example the attached screenshot, which is the rendering of the report at the following GitHub Gist: https://gist.github.com/NiccoMlt/4e80b9b8d6c08d60555d27d7107bddc0

The head of the page (which is a GroupHeaderSection) overlaps with the first line of the body (which is a DetailSection).

Is it a bug or am I configuring something in a wrong way?

0
Neli
Telerik team
answered on 08 Mar 2021, 04:25 PM

Hi  NiccoMlt,

Thank you for the provided report.

Please, test to increase the Group Footer Section's until the textboxes appear. You can check the updated report definition that demonstrates the approach. Let me know if the outcome satisfies your needs.

Regards,
Neli
Progress Telerik

Virtual Classroom, the free self-paced technical training that gets you up to speed with Telerik and Kendo UI products quickly just got a fresh new look + new and improved content including a brand new Blazor course! Check it out at https://learn.telerik.com/.

0
NiccoMlt
Top achievements
Rank 1
Veteran
answered on 08 Mar 2021, 05:07 PM

Hi Neli, thank you for your answer, but it doesn't help.

The report I attached in the previous message is autogenerated by converting an old one from a proprietary solution, and I need the generated Telerik report to support headers and footers that may change size from page to page (and thus I can't compute the size at conversion time).

I read that it could be a problem for Page Sections, but Group Sections (like the ones I'm using) should be able to grow as needed, am I right?

0
Neli
Telerik team
answered on 11 Mar 2021, 11:07 AM

Hi NiccoMlt,

Thank you for the additional information.

I inspected the report again and I noticed that in the group header section, there are a few items, each with a height of 1pc. One of the options that you can test is to set the height of the group header section to be 7pc. The other option which is available since 15.0.21.120 is to use a page header section and set its height through a Binding.

Let us know if you have any questions.

Regards,
Neli
Progress Telerik

Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.

0
NiccoMlt
Top achievements
Rank 1
Veteran
answered on 15 Mar 2021, 09:11 AM

Hi Neli,

[quote]Neli said:
Hi NiccoMlt,
Thank you for the additional information.
I inspected the report again and I noticed that in the group header section, there are a few items, each with a height of 1pc. One of the options that you can test is to set the height of the group header section to be 7pc
[/quote]

Yes, the header can be set with an height of 6pc to accomodate everything, but it is not a solution that I can adopt in my converter: the legacy report format I'm converting from supports an IF-ELSE conditional block construct that allows the report designer to define headers/footers that can accomodate a variable number of rows according to a condition over printing data that is evaluated at print time.

[quote]Neli said:

The other option which is available since 15.0.21.120 is to use a page header section and set its height through a Binding.

[/quote]

This was your first suggestion, that I already tryied, but as I said in a previous post, I didn't managed to get it working. Was the binding logic wrong in some way?

Thank you very much for your time.
0
Neli
Telerik team
answered on 18 Mar 2021, 09:04 AM

Hi Nicco,

Is it possible to send us the non-working version of the report in which you used the page header and binding for the height, so we can test it locally?

Regards,
Neli
Progress Telerik

Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.

0
NiccoMlt
Top achievements
Rank 1
Veteran
answered on 29 Mar 2021, 09:24 AM

Hi Neli,

the company my University is collaborating with opened a support ticket about this problem. The bug was acknowledged and a bug report was opened: https://feedback.telerik.com/reporting/1512290-height-not-correctly-calculated-resulting-in-overlapping-elements-when-docking-top-and-panels-are-used.

As a workaround, because precomputing the height of the whole section was not acceptable, I'm currently precomputing only the height of the panels inside the section, allowing the parent section to grow correctly.

Thanks again for your support and best regards.


0
Neli
Telerik team
answered on 01 Apr 2021, 06:17 AM

Hi NiccoMlt,

Thank you for the provided information. I set the status of the bug to Unplanned which basically means that it is approved but we don't know when it will be fixed. Once there is an update, you will receive a notification.

Regards,
Neli
Progress Telerik

Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.
