a couple of stock chart questions

4 posts, 1 answers
  1. Jeffry
    Jeffry avatar
    20 posts
    Member since:
    Jun 2013

    Posted 31 Dec 2013 Link to this post

    hi
    the first one might be easier so ill start with that
    1)  is there anyway to get rid of the navigator?
    2)  in my chart i should be having 10 bars
    ie, i have an array with 10 data objects

    here is my code:

    console.log(wData);
     $J($chartD).kendoStockChart({
         dataSource: wData,
         series: [{
             type: "candlestick",
             openField: "open",
             highField: "high",
             lowField: "low",
             closeField: "close"
         }],
         categoryAxis:{
             categories: cats,
             type: "category"
         },
         valueAxis: {
             labels: {
                 format: "N0"
             }
         }
     });



    i have attached a text file with what console.log(wData) is

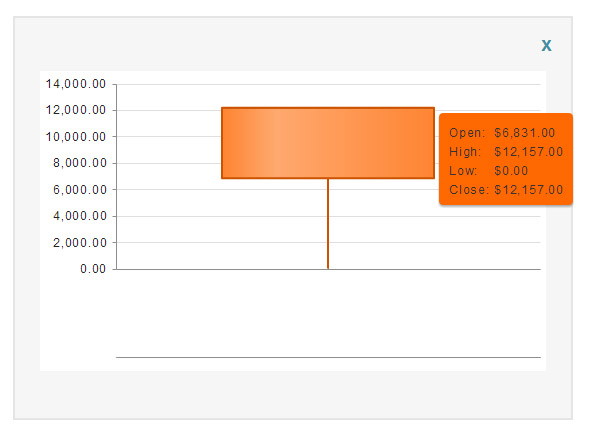

    also i have a attached a screen shot of the graph

    as you can see
    the chart is only rendering the last object and not even correctly
    because the open should be "0"

    also just fyi
    here is what "cats" looks like in the js console (which is correct)
    Array[9]
    0: "2009"1: "Workforce Headcount"2: "Direct Hire"3: "Acquisition"4: "Voluntary Termination"5: "Involuntary Termination"6: "Layoff"7: "Net Mobility"8: "2010"


    pls help
    thanks so much
  2. Jeffry
    Jeffry avatar
    20 posts
    Member since:
    Jun 2013

    Posted 31 Dec 2013 Link to this post

    sorry - i meant 9 objects
    and i forgot to post the files
    =:-(

    i couldnt attach the data file
    so im just posting it here


    Array[9]
    0: Object
    cat: "2009"
    close: 10674
    high: 10674
    low: 0
    open: 0
    __proto__: Object
    1: Object
    cat: "Workforce Headcount"
    close: 7671
    high: 7671
    low: 6831
    open: 6831
    __proto__: Object
    2: Object
    cat: "Direct Hire"
    close: 2336
    high: 2336
    low: 2354
    open: 2354
    __proto__: Object
    3: Object
    cat: "Acquisition"
    close: 695
    high: 695
    low: 125
    open: 125
    __proto__: Object
    4: Object
    cat: "Voluntary Termination"
    close: 1034
    high: 1034
    low: 1268
    open: 1268
    __proto__: Object
    5: Object
    cat: "Involuntary Termination"
    close: 70
    high: 70
    low: 48
    open: 48
    __proto__: Object
    6: Object
    cat: "Layoff"
    close: 351
    high: 351
    low: 48
    open: 48
    __proto__: Object
    7: Object
    cat: "Net Mobility"
    close: 0
    high: 0
    low: 0
    open: 0
    __proto__: Object
    8: Object
    cat: "2010"
    close: 12157
    high: 12157
    low: 1
    open: 1
    __proto__: Object
  3. Answer
    Jeffry
    Jeffry avatar
    20 posts
    Member since:
    Jun 2013

    Posted 03 Jan 2014 Link to this post

    Hi Jeffry,

    Apologies for not getting back to you earlier.

    Up to the questions:
         1. is there anyway to get rid of the navigator?

    To achieve this you should set navigator.visible option to false:
    $("#stock-chart").kendoStockChart({
      //....
      navigator: {
          //....
          visible: false
      }
    });


    2. ....the chart is only rendering the last object and not even correctly....
    In order to achieve the expected result please try using series.categoryField (instead of categoryAxis.categories):
    $("#stock-chart").kendoStockChart({
      //....
      series: [{
         //....
         categoryField: "cat"
     }],
    });

    Regards,
    Iliana Nikolova
    Telerik
    Join us on our journey to create the world's most complete HTML 5 UI Framework - download Kendo UI now!

  4. Jeffry
    Jeffry avatar
    20 posts
    Member since:
    Jun 2013

    Posted 03 Jan 2014 Link to this post

    thank you very much
