Getting Started with Digital Signature

Updated on Jun 16, 2026

Use RadPdfProcessing to add a digital signature to a PDF document that you create in code or import from an existing file. This article explains the required setup, the signing workflow, the available signature settings, and the checks to run after export.

To use digital signatures in RadPdfProcessing for .NET Standard or .NET, add a reference to the System.Security.Cryptography.Pkcs NuGet package, version 6 or later. This requirement applies starting with R1 2022 SP1.

PdfProcessing Digitally Sign Document Demo

What You Need Before You Sign a PDF

Before you sign a document, make sure you have the required inputs and document objects:

Prepare an X509Certificate2 instance that contains the private key used for signing.
Decide whether you will sign a newly created document or an imported RadFixedDocument.
Choose whether the signature will be visible or invisible in the document.
Prepare a stream that supports both reading and writing for the export operation.

Signing a Document

Use this workflow to sign a PDF document:

Create a Signature instance and pass the certificate to its constructor.
Add the signature to a SignatureField in the document form.
If you need a visible signature, create a SignatureWidget and associate it with the SignatureField.
Assign a FormSource to the widget Content.NormalContentSource property.
Use FixedContentEditor to draw the visual content that will appear in the signature area.
Export the document to a readable and writable stream.

When you export a digitally signed document, pass a stream that supports both reading and writing. Otherwise, RadPdfProcessing throws NotSupportedException with the message Stream does not support reading.

The following example signs a newly created document:

Example: Sign a document

int signatureFieldWidth = 200;
int signatureFieldHeight = 50;
int signaturePositionLeft = 10;
int signaturePositionTop = 10;

X509Certificate2 certificate = new X509Certificate2("Certificate.pfx", "johndoe");
SignatureField pdfSignature = new SignatureField("SignatureField");
pdfSignature.Signature = new Signature(certificate);

Form pdfForm = new Form();
pdfForm.FormSource = new FormSource();
pdfForm.FormSource.Size = new Size(signatureFieldWidth, signatureFieldHeight);
FixedContentEditor editor = new FixedContentEditor(pdfForm.FormSource);
pdfForm.Position.Translate(signaturePositionLeft, signaturePositionTop);
editor.DrawText($"{certificate.GetNameInfo(X509NameType.SimpleName, false)} {DateTime.Now.ToString("yyyy.MM.dd HH:mm")}");

SignatureWidget signatureWidget = pdfSignature.Widgets.AddWidget();
signatureWidget.Content.NormalContentSource = pdfForm.FormSource;
signatureWidget.Rect = new Rect(signaturePositionLeft, signaturePositionTop, signatureFieldWidth, signatureFieldHeight);
signatureWidget.RecalculateContent();

RadFixedDocument document = new RadFixedDocument();
RadFixedPage pdfPage = document.Pages.AddPage();
pdfPage.Annotations.Add(signatureWidget);

FixedContentEditor pageEditor = new FixedContentEditor(pdfPage);
pageEditor.Position.Translate(signaturePositionLeft, signaturePositionTop);
pageEditor.DrawForm(pdfForm.FormSource);
document.AcroForm.FormFields.Add(pdfSignature);
signatureWidget.RecalculateContent();

string signedDocumentFilePath = "signed.pdf";
File.Delete(signedDocumentFilePath);
using (Stream output = new FileStream(signedDocumentFilePath, FileMode.OpenOrCreate, FileAccess.ReadWrite))
{
    new Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.PdfFormatProvider().Export(document, output, TimeSpan.FromSeconds(10));
}

In .NET Standard, use Telerik.Documents.Primitives.Rect instead of System.Windows.Rect.

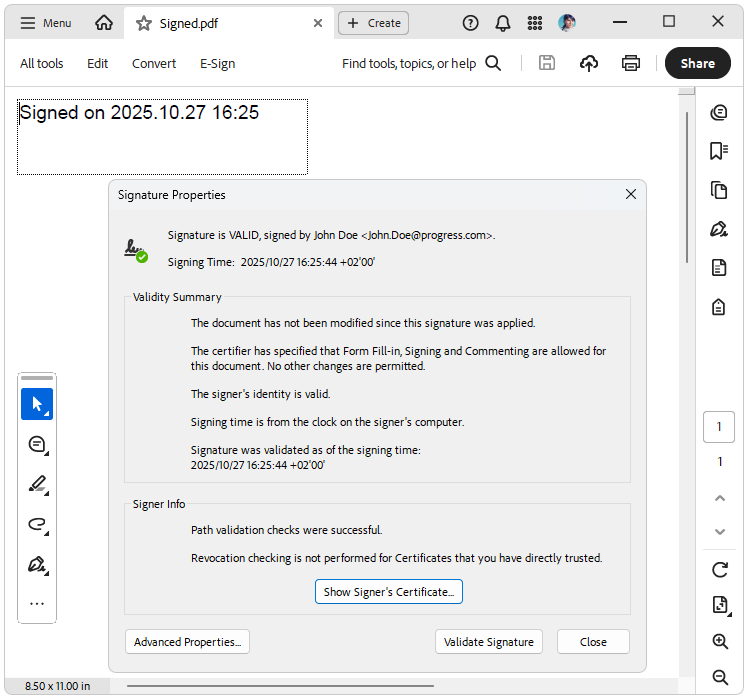

A PDF document with a visible digital signature field applied

Signing an Existing PDF Document

When you sign an imported document, verify the form settings before export. Set the AcroForm.ViewersShouldRecalculateWidgetAppearances property to false so PDF viewers preserve the signed appearance. If this property remains true, the exported file may open without showing the document as signed.

Signature Settings

Use SignatureSettings, available through Signature.Settings, to control how RadPdfProcessing produces the digital signature. The class, introduced in Q4 2025, lets you choose the digest algorithm, configure timestamping, and decide how much certificate chain information to embed.

Property	Description
`DigestAlgorithm`	Gets or sets the digest (hash) algorithm used when producing the CMS (PKCS#7) signature. Default is `DigestAlgorithmType.Sha256`. Supported values: `Sha256` (recommended default), `Sha384` (for higher strength or P-384 key policy), `Sha512` (highest SHA-2 strength or long-term archival).
`TimeStampServer`	Gets or sets the timestamp server settings used to obtain a trusted timestamp for the signature.
`CertificateChainIncludeOption`	Gets or sets the option that determines which certificates are included in the certificate chain. Available values: `None` (no chain info), `ExcludeRoot` (entire chain except root), `EndCertOnly` (only the end certificate), `WholeChain` (entire chain). [Introduced in Q1 2026]

Choose Sha256 for most scenarios. Move to Sha384 or Sha512 only when your security policy, certificate type, or archival requirements call for a stronger hash.

Signature Encodings

RadPdfProcessing can sign and validate signature fields by using these standard encodings:

adbe.x509.rsa_sha1 (PKCS #1)
adbe.pkcs7.sha1 (PKCS #7)
adbe.pkcs7.detached (PKCS #7 Detached)

Signature Flags

Use signature flags to declare whether the document contains signature fields and whether later saves can invalidate existing signatures.

The signature flags were introduced in R2 2022 SP1. The following example shows how to apply them:

Example: Set signature flags

document.AcroForm.SignatureFlags = SignatureFlags.None;

Use these values:

Value	Description
`None`	Indicates no signature fields exist.
`SignaturesExist`	If set, the document contains at least one signature field. This flag allows a viewer to enable signature-related UI (such as menu items or buttons) without scanning the entire document.
`AppendOnly`	The document contains signatures that may be invalidated if the file is saved in a way that alters its previous contents. Viewer applications can use this flag to warn users that saving will invalidate signatures.

How to Validate the Signed PDF

After you export the document, validate the result in a PDF viewer and in your application workflow:

Open the exported PDF in a viewer that supports digital signature inspection.
Confirm that the signature panel shows the document as signed.
If you created a visible signature, verify that the widget appearance renders as expected.
Inspect the certificate information, timestamp, and chain details when your workflow requires trust validation.
If you sign an imported file, confirm that the original content remains unchanged apart from the signature update.

Troubleshooting Common Signing Issues

Use these checks when the exported document does not appear signed or the signing process fails:

Verify that the certificate includes a private key and is valid for digital signing.
Verify that the export stream supports both reading and writing.
Verify that AcroForm.ViewersShouldRecalculateWidgetAppearances is set to false for imported documents.
Verify that the System.Security.Cryptography.Pkcs package is referenced when you target .NET Standard or .NET.
Verify that the PDF viewer you use supports digital signature validation and widget appearance rendering.
