Template Basics
JustCode templates are much like Visual Studio code snippets. They
give you a chance to seamlessly generate a piece of code following a predefined
structure. In the general case you just have to pick up the real content, i.e.
the stuff that actually defines the logic of the code, from a set of possible choices
that JustCode computes for you. All the boilerplate code is automatically
generated for you.
For example, here is how the C# built-in foreach code template normally works out:

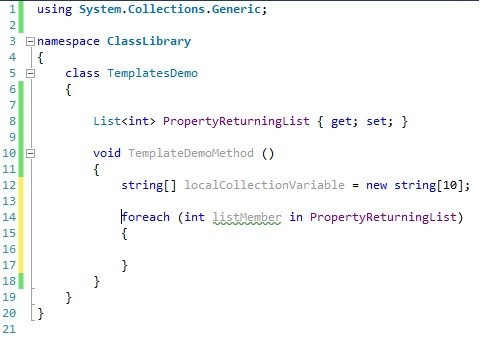

Step 1 – Expand the template

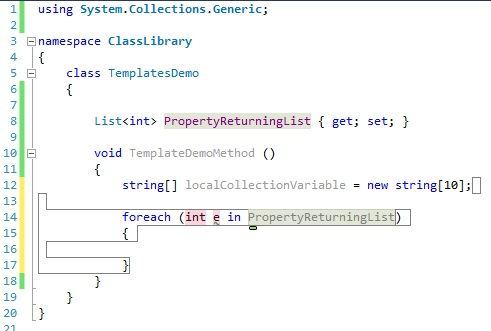

Notice how the type of e
automatically changes from string to int

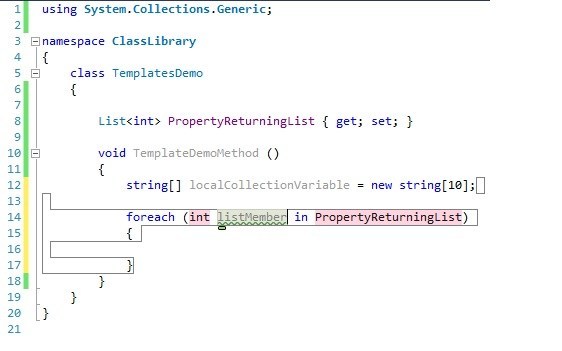

Step 3 - Choose or type in a name for the variable foreach loop declares
We type in a more descriptive name and get:

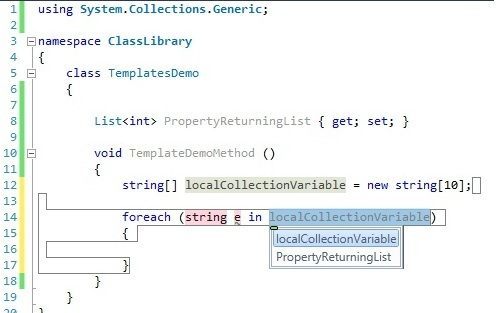

Step 4 – Accept the template
That is what you get as a result.
Triggering and Setting
Up JustCode Templates
The templates that make sense at any given position in the code could
be expanded from the context menu that comes out when you hit Alt+End.
JustCode comes with a set of predefined templates for the
programming languages it supports. The real power of the code templates,
though, stems from the ability to define your own code templates by going to JustCode
-> Options -> Code Templates. Have a look at the next section to find out
how.
Defining Your Own
Template
General
Any text you put in the code template editor is reproduced in the
Visual Studio code editor when the template gets expanded unless it belongs to any
of the following categories – template variable, template function or special
character. Anything that belongs to these categories gets evaluated by JustCode
when the template is expanded and it gets replaced with the output of that
evaluation.
Template Variables
The
syntax for defining a template variable is:
$number[=function]$
Where number is
any natural number and function is any of the template functions
in the Template Functions section.
So,
the template variables are designated by non-repeating natural numbers, i.e.
1,2,3…. Apart from serving as unique identifiers for the template variables
these numbers also specify the order in which the user gets to pick values for
the template variables. The lower numbered variables are visited before the
higher numbered ones.
There
is a very important consequence of the order in which the user gets to choose
values for the template variables. Namely, $2$ can be a function of $1$ but $1$
cannot be a function of $2$ since the value of $2$ is not specified by the user
at the time $1$ gets to be specified.
Template Syntax Example:
Here
we have a basic template for an if statement
if ($1=SELECT_VARIABLE(bool)$)
{
|
}
Here we are defining a template variable that serves as a condition of the if statement and we are designating it
with 1. When the template gets expanded that variable will get replaced by the
return value of the function SELECT_VARIABLE if it returns a single item (i.e.
there is only one boolean member in scope). If it returns more than one item
(i.e. there is more than one boolean member in scope) the user will be given
the chance to choose which one of the list of items returned will replace $1$.
We can further develop our template by referring to that variable again.
if ($1=SELECT_VARIABLE(bool)$)
{
$1$ = false; //this will now output the value of $1$ variable inside the if block, and set its value to false
}
Expanded Template:
bool test = true; //declared in my code
//below is what my new if template generated for us.
if ( test )
{
test = false;
}
EXAMPLE:
A foreach template is a good example of template variable specification order.
foreach (
$3=GET_ELEMENT_TYPE($1$)$
$2=SUGGEST_ELEMENT_NAME($1$)$ in
$1=SELECT_VARIABLE([],System.Collections.ArrayList)$ )
{
|
}
The
user gets to choose the value of $1$ first when the template is expanded. That
way the choices the user can make for the values of $2$ and $3$ get evaluated based on the chosen value of $1$ and the user
gets the respective values to choose from once he moves forward to specifying
values for these variables.
Template Functions
SELECT –
This allows you to give the template user a list
of predefined constant values when the template is run. It works much like a
combobox.
EX:
Template:
$6=SELECT(choice one,choice two,choice three)$
SELECT_VARIABLE -
Tries to find valid members of
a given type(s) that are in scope. It will look for
fields, and properties of the specified type. It will also look for
methods that return the specified types, and require no parameters. If you do
not pass in types for it to search for, then it will get all variables in
scope.
Arguments:
A comma separated list of variable types to search for.
Template Syntax Example:
SELECT_VARIABLE(System.Collections.Generic.List)
This will find all members of type “List”
available in the current context.
You can also specify multiple valid types by
separating them with a comma
SELECT_VARIABLE(int,uint).
SUGGEST_NAME -
Return suggestions for identifier name in accordance
with the syntax rules of the programming language in use.
Template Syntax Example:
bool $1=SUGGEST_NAME$ = false;
do {
…….
……
}
while($1$)
SUGGEST_ELEMENT_NAME-
This will try to come up with a good identifier name for an
identifier that is a placeholder for the elements of a collection being
iterated through (e.g. as in C# foreach syntax). The function
argument should be evaluated to a collection type variable identifier or a list
of such identifiers.
Arguments:
Could be evaluated to a collection or a list of collections. At present, of all
template functions only the SELECT_VARIABLE template function returns such a
list.
Template Syntax Example:
foreach ( $3=GET_ELEMENT_TYPE($1$)$
$2=SUGGEST_ELEMENT_NAME($1$)$
in
$1=SELECT_VARIABLE([],System.Collections.Generic.IList)$ )
{
|
}
$1$ will hold a list of all the arrays and IList
implementers in scope.
Code Example:
Member In Scope:
List<string> myItems = new
List<string>();
Result:
foreach (string myItem in myItems)
{
}
Code Example:
Member In Scope:
List<string> myList = new List<string>();
Result:
foreach (string e in myList)
{
}
SUGGEST_INDEX_NAME-
Tries to suggest a name for an index variable in a loop.
SUGGEST_EXCEPTION_NAME-
Tries to suggest a name for an exception.
GET_ELEMENT_TYPE-
Returns
the type of the identifier given as an argument.
Arguments:
Could be evaluated to an identifier.
Template
Syntax Example:
$1=SELECT_VARIABLE(System.Collections.Generic.List,System.Collections.Generic.IList)$
$2=GET_ELEMENT_TYPE($1$)$
This would output the type for the elements
contained by an IList<> found in the current scope.
STATEMENT_SELECTION-
A placeholder for any code the user might have highlighted
prior to starting the template. You
could see an example of this in all the “Surround with” templates
Special Characters in Template Definition Syntax
|
marks the desired position of the cursor right after the user has
committed all the changes on the template
$ marks the beginning/end of a template variable declaration
\
escape character. Place it before | or $ or \ if they are not meant to be
part of the template syntax, i.e. you want them literally reproduced when the template gets expanded.
