Getting Started with WinUI LayoutTransformControl

Updated on Mar 26, 2026

This topic demonstrates how to use the RadLayoutTransformControl for WinUI.

Assembly References

In order to use the RadLayoutTransformControl suite in your projects, you have to add references to the following assembly:

Telerik.WinUI.Controls.dll
Telerik.Licensing.Runtime.dll

Defining a RadLayoutTransformControl

Here is how RadLayoutTransformControl is declared in XAML:

You can access the RadLayoutTransformControl control through an alias pointing to the Telerik.UI.Xaml.Controls.Input namespace: xmlns:telerikPrimitives="using:Telerik.UI.Xaml.Controls.Primitives"

Example 1: Adding a RadLayoutTransformControl in XAML

XAML

<telerikPrimitives:RadLayoutTransformControl />

The RadLayoutTransformControl exposes a LayoutTransform which you can use to apply transformations to the content of the control. It is of type Microsoft.UI.Xaml.Media.Transform. Here's a list of possible transformations:

RotateTransform
ScaleTransform
SkewTransform
MatrixTransform
TransformGroup

Example 2: Applying a TransformGroup

XAML

<telerik:RadLayoutTransformControl x:Name="LayoutTransformControl">
	<telerik:RadLayoutTransformControl.LayoutTransform>
		<TransformGroup>
			<RotateTransform Angle="45" />
			<ScaleTransform ScaleX="2" ScaleY="2" />
			<SkewTransform AngleX="10" AngleY="10" />
		</TransformGroup>
	</telerik:RadLayoutTransformControl.LayoutTransform>
	<Border Background="LightBlue" Width="100" Height="100">
		<TextBlock Text="Content" HorizontalAlignment="Center" VerticalAlignment="Center" />
	</Border>
</telerik:RadLayoutTransformControl>

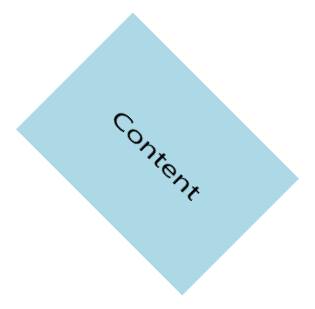

Figure 1: Border and TextBlock with applied transformations

WinUI Border and TextBlock with applied transformations

You can also set the transformations in code, as shown in Example 3:

Example 3: Applying a MatrixTransform

this.LayoutTransformControl.LayoutTransform = new MatrixTransform()
{
	Matrix = new Matrix()
	{
		M11 = 0.3,
		M12 = 1,
		M21 = 2,
		M22 = 0,
		OffsetX = 10,
		OffsetY = 50
	}
};

Figure 2: RadLayoutTransformControl with MatrixTransform

WinUI RadLayoutTransformControl with MatrixTransform
