Scheduler Data Binding Tutorial

Updated over 6 months ago

Environment

Product VersionProductAuthor
2020.3.1020RadScheduler for WinFormsDesislava Yordanova

Description

This tutorial will provide a full guidance for binding RadScheduler to a database from a local SQL server. It will cover the following cases:

  • Binding Appointments and Resources to display the relevant events for the currently displayed resources

  • Grouping by resources

  • Saving the changes made in RadScheduler to the SQL server

  • Creating recurring appointments and storing any exceptions to the recurrence

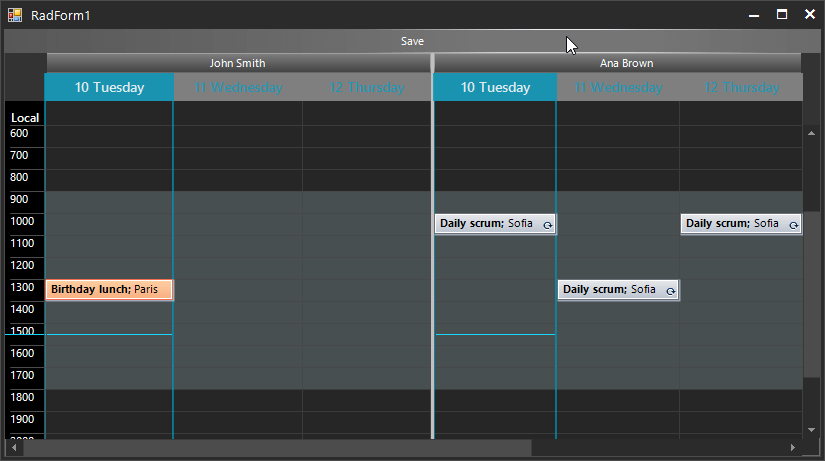

    scheduler-databinding-tutorial 001

Solution

Follow the steps:

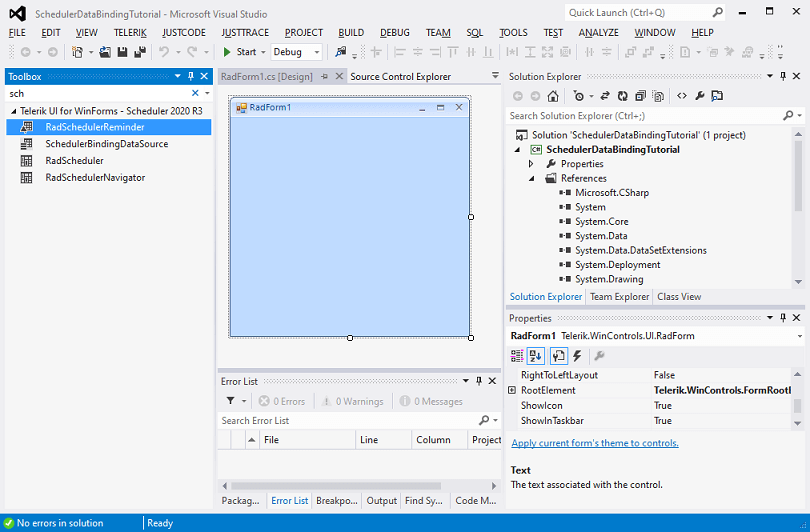

1. Let’s start from scratch with an empty form:

scheduler-databinding-tutorial 002

2. Drag a RadScheduler from the toolbox and drop it to the form:

scheduler-databinding-tutorial 003

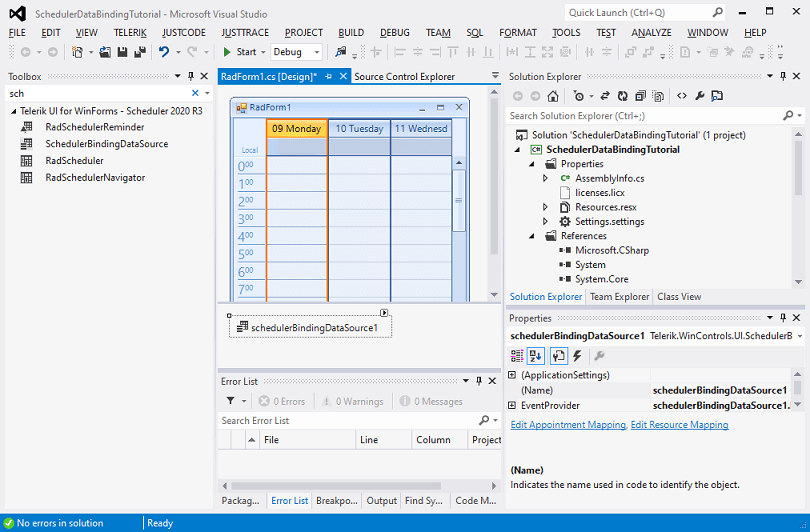

3. Drag a SchedulerBindingDataSource from the toolbox and drop it onto the form:

scheduler-databinding-tutorial 004

4. Meanwhile, use the SQL scripts from the online documentation to create a Sample Database in the local SQL server that you have: Sample Database. As a result, you will have 3 empty tables:

scheduler-databinding-tutorial 005

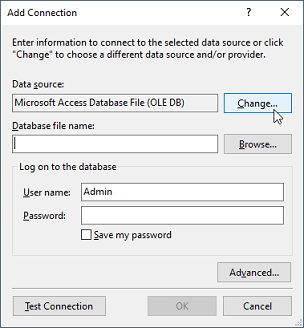

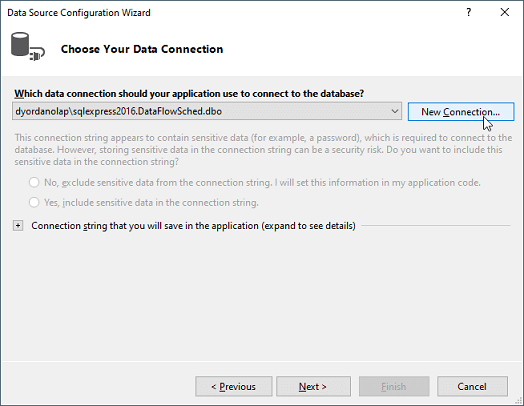

5. Open the Smart tag for the SchedulerBindingDataSource and trigger the Data Source Configuration Wizard to generate the BindingSources for the three tables from the SQL server:

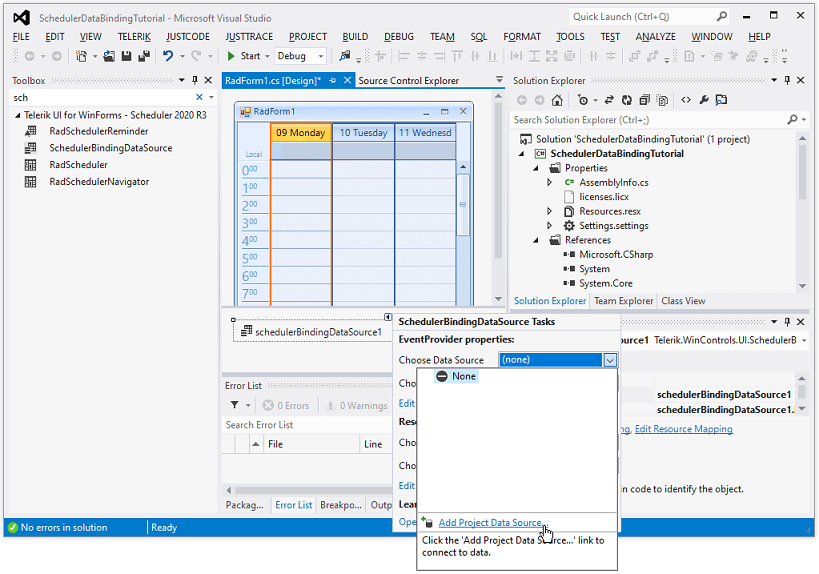

scheduler-databinding-tutorial 006

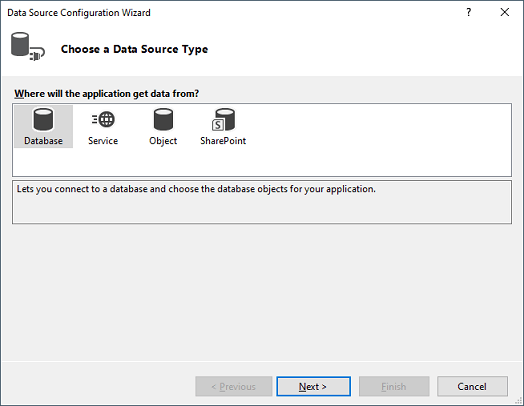

scheduler-databinding-tutorial 007

scheduler-databinding-tutorial 008

scheduler-databinding-tutorial 009

scheduler-databinding-tutorial 010

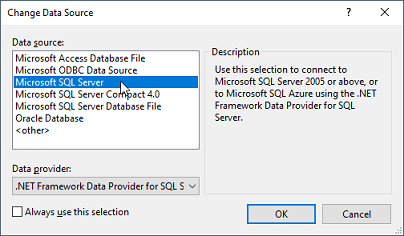

scheduler-databinding-tutorial 011

scheduler-databinding-tutorial 012

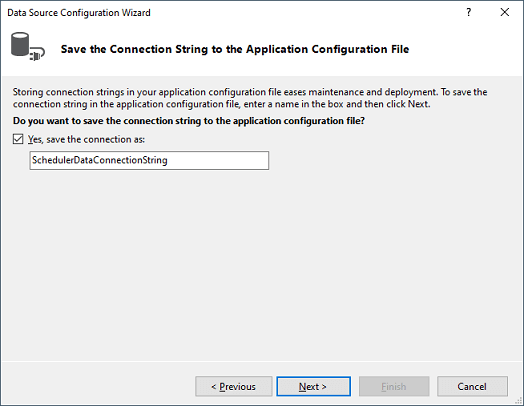

scheduler-databinding-tutorial 013

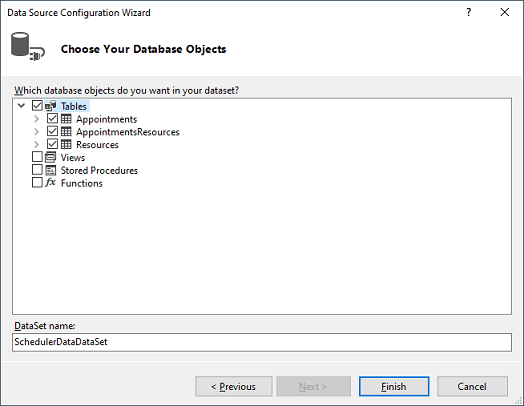

scheduler-databinding-tutorial 014

6. Now, generate the BindingSources for each of the tables in the DataSet:

scheduler-databinding-tutorial 015

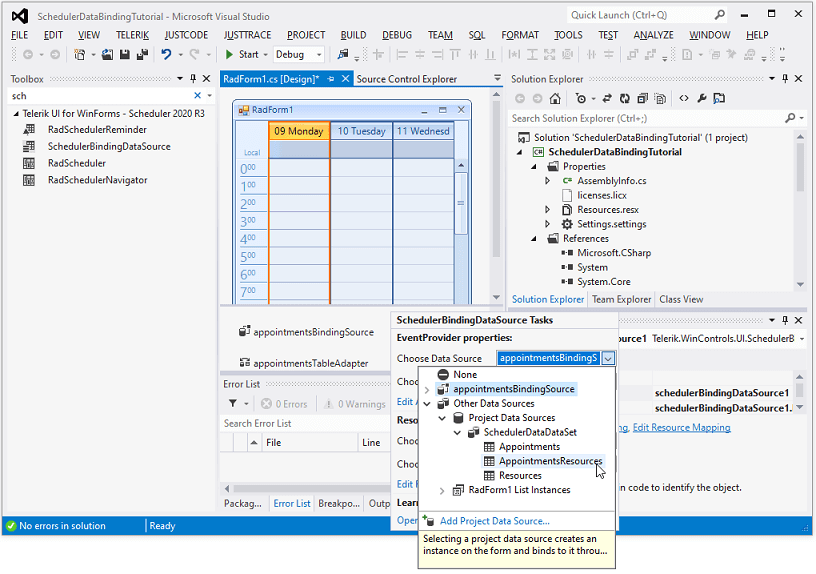

scheduler-databinding-tutorial 016

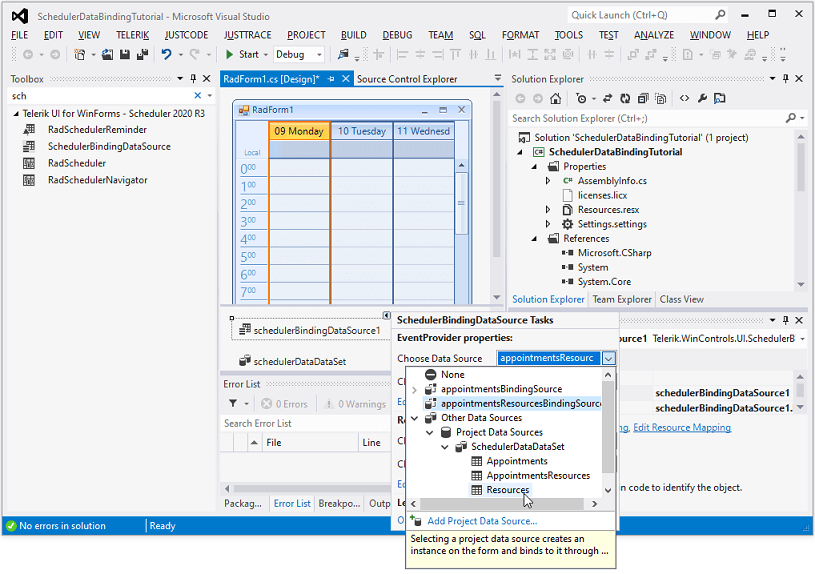

scheduler-databinding-tutorial 017

scheduler-databinding-tutorial 018

7. Setup the AppointmentMappingInfo and ResourceMappingInfo in such a way to map the Appointment’s and Resource’s properties with the respective ones from the tables in the SQL server:

Setup the data binding

C#

AppointmentMappingInfo appointmentMappingInfo = new AppointmentMappingInfo();
appointmentMappingInfo.BackgroundId = "BackgroundId";
appointmentMappingInfo.Description = "Description";
appointmentMappingInfo.End = "End";
appointmentMappingInfo.Location = "Location";
appointmentMappingInfo.MasterEventId = "MasterEventId";
appointmentMappingInfo.RecurrenceRule = "RecurrenceRule";
appointmentMappingInfo.ResourceId = "ResourceID";
appointmentMappingInfo.Exceptions = "Appointments_Appointments";
appointmentMappingInfo.Resources = "AppointmentsResources_Appointments";
appointmentMappingInfo.Start = "Start";
appointmentMappingInfo.StatusId = "StatusID";
appointmentMappingInfo.Summary = "Summary";
schedulerBindingDataSource1.EventProvider.Mapping = appointmentMappingInfo;
ResourceMappingInfo resourceMappingInfo = new ResourceMappingInfo();
resourceMappingInfo.Id = "ID";
resourceMappingInfo.Name = "Name";
this.schedulerBindingDataSource1.ResourceProvider.Mapping = resourceMappingInfo;

schedulerBindingDataSource1.ResourceProvider.DataSource = schedulerDataDataSet.Resources;
schedulerBindingDataSource1.EventProvider.DataSource = schedulerDataDataSet.Appointments;
radScheduler1.DataSource = schedulerBindingDataSource1;

this.radScheduler1.GroupType = GroupType.Resource;

8. The AppointmentMappingInfo.Resources property should be set to the relation name between the Appointments and AppointmentResources table:

scheduler-databinding-tutorial 019

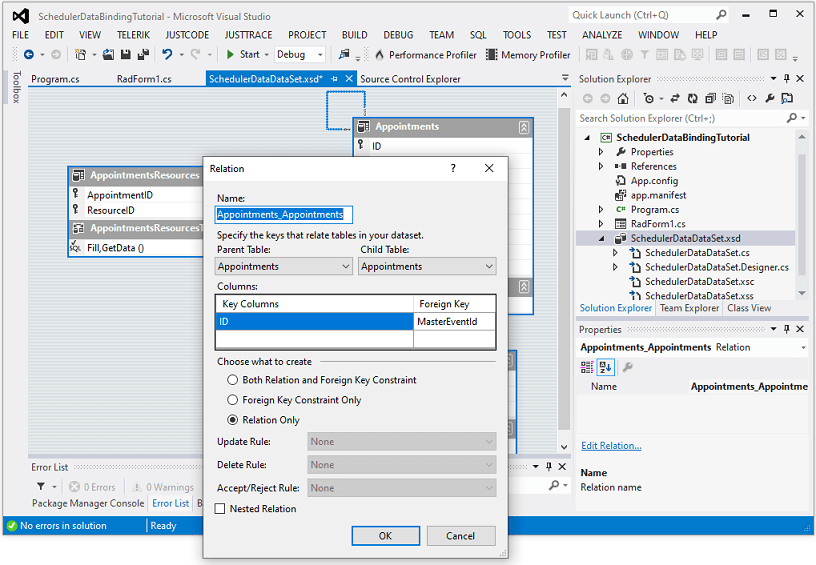

9. RadScheduler supports recurring appointments. When you edit an occurrence, it will create an exception event. It is necessary to create a new relation in the .xsd for the Appointment table from its ID property to the MasterEventId property and set the AppointmentMappingInfo.Exceptions field to the name of the relation:

scheduler-databinding-tutorial 020

10. The last thing we need to do is to save the changes made in RadScheduler to the server. This will be performed in RadButton.Click event handler:

Save the changes to the database

C#

private void radButton1_Click(object sender, EventArgs e)
{
    appointmentsResourcesTableAdapter.Adapter.AcceptChangesDuringUpdate = false;
    SchedulerDataDataSet.AppointmentsResourcesDataTable deletedRelationRecords =
        this.schedulerDataDataSet.AppointmentsResources.GetChanges(DataRowState.Deleted)
        as SchedulerDataDataSet.AppointmentsResourcesDataTable;
    SchedulerDataDataSet.AppointmentsResourcesDataTable newRelationRecords =
        this.schedulerDataDataSet.AppointmentsResources.GetChanges(DataRowState.Added)
        as SchedulerDataDataSet.AppointmentsResourcesDataTable;
    SchedulerDataDataSet.AppointmentsResourcesDataTable modifiedRelationRecords =
        this.schedulerDataDataSet.AppointmentsResources.GetChanges(DataRowState.Modified)
        as SchedulerDataDataSet.AppointmentsResourcesDataTable;
    SchedulerDataDataSet.AppointmentsDataTable newAppointmentRecords =
        this.schedulerDataDataSet.Appointments.GetChanges(DataRowState.Added) as SchedulerDataDataSet.AppointmentsDataTable;
    SchedulerDataDataSet.AppointmentsDataTable deletedAppointmentRecords =
        this.schedulerDataDataSet.Appointments.GetChanges(DataRowState.Deleted) as SchedulerDataDataSet.AppointmentsDataTable;
    SchedulerDataDataSet.AppointmentsDataTable modifiedAppointmentRecords =
        this.schedulerDataDataSet.Appointments.GetChanges(DataRowState.Modified) as SchedulerDataDataSet.AppointmentsDataTable;
    try
    {
        if (newAppointmentRecords != null)
        {
            Dictionary<int, int> newAppointmentIds = new Dictionary<int, int>();
            Dictionary<object, int> oldAppointmentIds = new Dictionary<object, int>();
            for (int i = 0; i < newAppointmentRecords.Count; i++)
            {
                oldAppointmentIds.Add(newAppointmentRecords[i], newAppointmentRecords[i].ID);
            }
            appointmentsTableAdapter.Update(newAppointmentRecords);
            for (int i = 0; i < newAppointmentRecords.Count; i++)
            {
                newAppointmentIds.Add(oldAppointmentIds[newAppointmentRecords[i]], newAppointmentRecords[i].ID);
            }
            if (newRelationRecords != null)
            {
                for (int i = 0; i < newRelationRecords.Count; i++)
                {
                    newRelationRecords[i].AppointmentID = newAppointmentIds[newRelationRecords[i].AppointmentID];
                }
            }
        }
        if (deletedRelationRecords != null)
        {
            appointmentsResourcesTableAdapter.Update(deletedRelationRecords);
        }
        if (deletedAppointmentRecords != null)
        {
            appointmentsTableAdapter.Update(deletedAppointmentRecords);
        }
        if (modifiedAppointmentRecords != null)
        {
            appointmentsTableAdapter.Update(modifiedAppointmentRecords);
        }
        if (newRelationRecords != null)
        {
            appointmentsResourcesTableAdapter.Update(newRelationRecords);
        }
        if (modifiedRelationRecords != null)
        {
            appointmentsResourcesTableAdapter.Update(modifiedRelationRecords);
        }
        this.schedulerDataDataSet.AcceptChanges();
    }
    catch (Exception ex)
    {
        MessageBox.Show(string.Format("An error occurred during the update process:\n{0}", ex.Message));
    }
    finally
    {
        if (deletedRelationRecords != null)
        {
            deletedRelationRecords.Dispose();
        }
        if (newRelationRecords != null)
        {
            newRelationRecords.Dispose();
        }
        if (modifiedRelationRecords != null)
        {
            modifiedRelationRecords.Dispose();
        }
    }
}

A complete solution providing a C# and VB.NET project is available here.
