[Solved] why x axis vertical gridline is not showing ?

1 Answer 237 Views

Chart

This is a migrated thread and some comments may be shown as answers.

This question is locked. New answers and comments are not allowed.

Saravanan asked on 12 Sep 2011, 12:14 PM

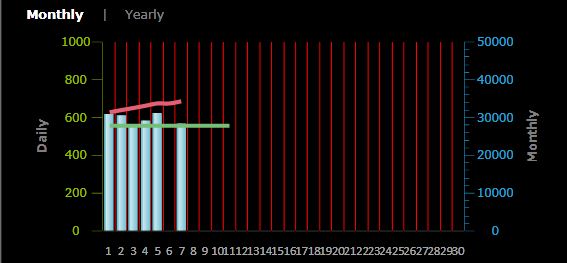

Hi team, i have rad chart with multiple series,i have two label called Monthly and Yearly ,default view is Montlhy,i am showing x-axis vertical gridline so i applied this style,its working fine in Monthly but when i click Yearly ,

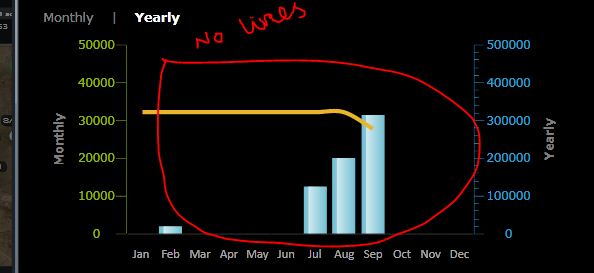

the x axis vertical gridlines are not showing..why the UI is changing depends upon data ? plz see the attachement

Actually in monthly view  i am showing (1 to 30 ) at x axis but when i click yearly i am showing (jan to dec ) at x axis.

<UserControl.Resources>

<Style x:Key="XaxisGridLineStyle" TargetType="Line">

<Setter Property="Stroke" Value="Red" />

<Setter Property="StrokeThickness" Value="2.5" />

</Style>

</UserControl.Resources>

<telerik:RadChart x:Name="RadChartPopUp"

ItemsSource="{Binding ChartData}"

BorderBrush="Transparent">

<telerik:RadChart.SeriesMappings>

<telerik:SeriesMapping x:Name="DailyWhite"

LegendLabel="{Binding DailyWhiteLegend}">

<telerik:SeriesMapping.ItemMappings>

<telerik:ItemMapping

FieldName="DailyorMonthlyActual"

DataPointMember="YValue" />

<telerik:ItemMapping FieldName="Xcategory"

DataPointMember="XCategory" />

</telerik:SeriesMapping.ItemMappings>

<telerik:SeriesMapping.SeriesDefinition>

<telerik:BarSeriesDefinition

ShowItemLabels="False"

ShowItemToolTips="True" />

</telerik:SeriesMapping.SeriesDefinition>

</telerik:SeriesMapping>

<telerik:SeriesMapping.SeriesDefinition>

<telerik:SplineAreaSeriesDefinition

SeriesStyle="{StaticResource SplineAreaGreen}"

AxisName="MonthlyorYearlyActualSeries"

ShowItemLabels="False"

ShowItemToolTips="True"

ShowPointMarks="False" />

</telerik:SeriesMapping.SeriesDefinition>

</telerik:SeriesMapping>

</telerik:RadChart.SeriesMappings>

<telerik:RadChart.DefaultView>

<telerik:ChartDefaultView ChartLegendPosition="Bottom">

<telerik:ChartDefaultView.ChartTitle>

<telerik:ChartTitle Visibility="Collapsed" />

</telerik:ChartDefaultView.ChartTitle>

<telerik:ChartDefaultView.ChartArea>

<telerik:ChartArea LegendName="legend"

HorizontalAlignment="Stretch"

VerticalAlignment="Stretch" Width="520"

LabelFormatBehavior="HumanReadable">

<telerik:ChartArea.AxisX>

<telerik:AxisX

MajorTicksVisibility="Visible"

Step="{Binding XaxisStep}"

MajorGridLinesVisibility="Visible"

AutoRange="True">

<telerik:AxisX.AxisStyles>

<telerik:AxisStyles

AxisLineStyle="{StaticResource XaxisLineStyle}"

GridLineStyle="{StaticResource XaxisGridLineStyle}"

ItemLabelStyle="{StaticResource ItemLabelStyle}" />

</telerik:AxisX.AxisStyles>

</telerik:AxisX>

</telerik:ChartArea.AxisX>

<telerik:ChartArea.AxisY>

<telerik:AxisY

Title="{Binding YaxisName}"

AutoRange="True"

StripLinesVisibility="Collapsed"

MajorGridLinesVisibility="Collapsed"

MinorGridLinesVisibility="Collapsed"

DefaultLabelFormat="0"

MinorTicksVisibility="Collapsed">

<telerik:AxisY.AxisStyles>

<telerik:AxisStyles

TitleStyle="{StaticResource AxisTitleStyle}"

AxisLineStyle="{StaticResource AxisLineStyle}"

TickLineStyle="{StaticResource MajorTickLineStyle}"

MinorTickLineStyle="{StaticResource MinorTickLineStyle}"

ItemLabelStyle="{StaticResource CustomLabel}" />

</telerik:AxisY.AxisStyles>

</telerik:AxisY>

</telerik:ChartArea.AxisY>

<telerik:ChartArea.AdditionalYAxes>

<telerik:AxisY x:Name="secondaxis"

Title="{Binding YoneAxisName}"

AutoRange="True"

DefaultLabelFormat="0"

AxisName="MonthlyorYearlyActualSeries">

<telerik:AxisY.AxisStyles>

<telerik:AxisStyles

TitleStyle="{StaticResource AxisTitleStyle}"

AxisLineStyle="{StaticResource AxisLineStyle2}"

TickLineStyle="{StaticResource MajorTickLineStyle2}"

MinorTickLineStyle="{StaticResource MinorTickLineStyle2}"

ItemLabelStyle="{StaticResource CustomLabel2}" />

</telerik:AxisY.AxisStyles>

</telerik:AxisY>

</telerik:ChartDefaultView>

</telerik:RadChart.DefaultView>

</telerik:RadChart>
